TIDatasheet (PDF)
INA132U/2K5
1 75uV 0.1V/us 90dB 175uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive

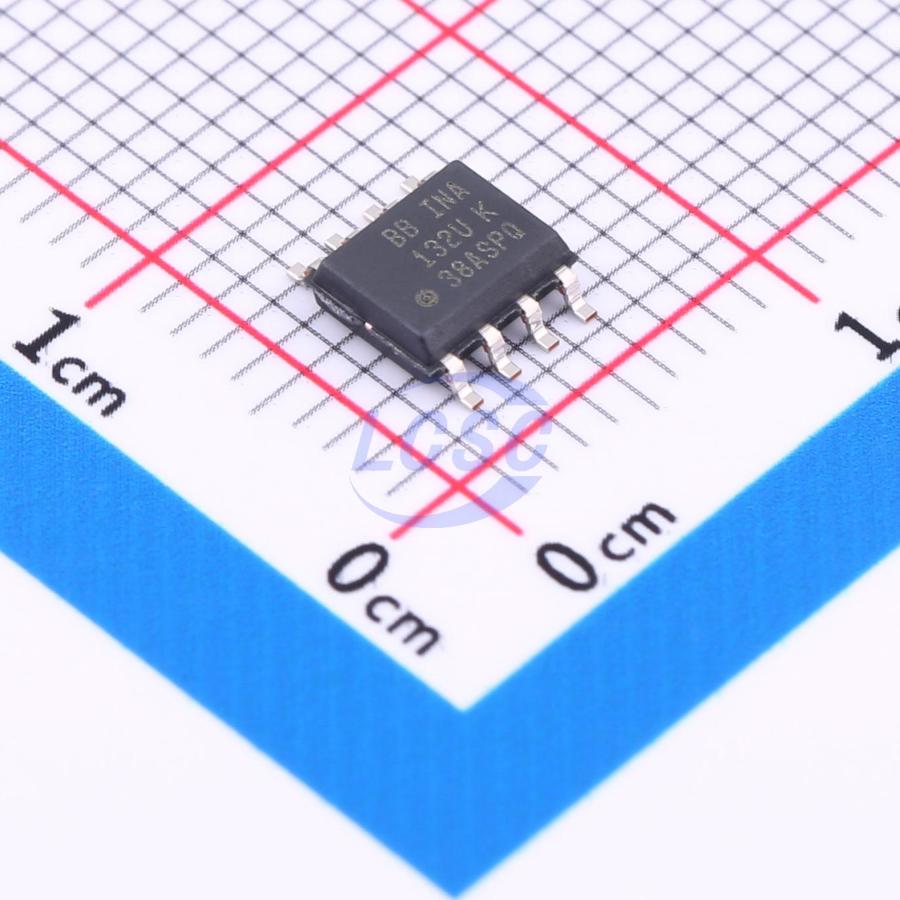

INA132 Low-Power Precision Difference Amplifier
- Manufacturer
- TI
- Manufacturer part #
- INA132U/2K5
- Store part #
- C2057349
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,597 in stock
#C2057349
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹369.71 | ₹369.71 |
| 10+ | ₹313.56 | ₹3,135.60 |
| 30+ | ₹278.37 | ₹8,351.10 |
| 100+ | ₹242.08 | ₹24,208.00 |
| 500+ | ₹225.89 | ₹1,12,945.00 |
| 1,000+ | ₹218.77 | ₹2,18,770.00 |
1 × ₹369.71
₹369.71
excl. GST
₹436.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA132U/2K5
₹369.71 for 1 + GST
Specifications
- output type
- Single-Ended
- Settling time
- 85us
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 75uV
- Slew Rate
- 0.1V/us
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 175uA
- Features
- Integrated precision resistor network;Capacitive load driving
- Dual Supply
- -18V~-1.35V;1.35V~18V
- Single Supply
- 2.7V~36V
- Noise density(eN)
- 75nV/√Hz@1kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
The INA132 is a low power, unity-gain differential amplifier consisting of a precision op amp with a precision resistor network. The on-chip resistors are laser trimmed for accurate gain and high commonmode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The internal op amp’s common-mode range extends to the negative supply— ideal for single-supply applications. It operates on single (2.7V to 36V) or dual supplies (±1.35V to ±18V). The differential amplifier is the foundation of many commonly used circuits. The INA132 provides this circuit function without using an expensive precision resistor network. The INA132 is available in 8-pin DIP and SO-8 surface-mount packages and is specified for operation over the extended industrial temperature range, -40°C to +85°C.
Applications
- DIFFERENTIAL INPUT AMPLIFIER
- INSTRUMENTATION AMPLIFIER BUILDING BLOCK
- UNITY-GAIN INVERTING AMPLIFIER
- u∈q/Z AMPLIFIER
- G = 2 AMPLIFIER
- SUMMING AMPLIFIER
- DIFFERENTIAL CURRENT RECEIVER
- VOLTAGE-CONTROLLED CURRENT SOURCE
- BATTERY-POWERED SYSTEMS
- GROUND LOOP ELIMINATOR
Key features
- LOW QUIESCENT CURRENT: 160μμ
- WIDE SUPPLY RANGE Single Supply: 2.7V to 36V Dual Supplies: ±1.35V to ±18V
- LOW GAIN ERROR: ±0.075% max
- LOW NONLINEARITY: 0.001% max
- HIGH CMR: 90dB
- HIGHLY VERSATILE CIRCUIT
- EASY TO USE
- LOW COST
- 8-PIN DIP AND SO-8 PACKAGES
