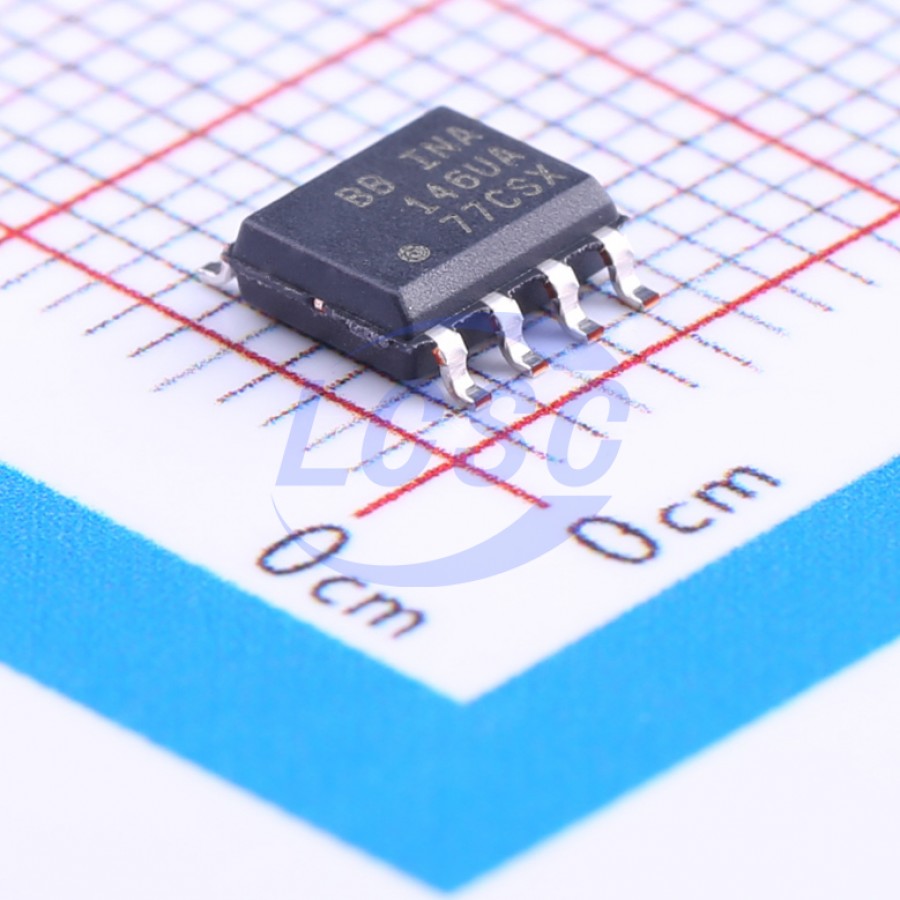

INA146UA/2K5
15mA 1 1mV 0.45V/us 80dB 74nA 570uA 550kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
High-Voltage, Programmable Gain DIFFERENCE AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- INA146UA/2K5
- Store part #
- C180427
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,128 in stock
#C180427
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹469.36 | ₹469.36 |
| 10+ | ₹395.42 | ₹3,954.20 |
| 30+ | ₹349.31 | ₹10,479.30 |
| 100+ | ₹301.90 | ₹30,190.00 |
| 500+ | ₹280.58 | ₹1,40,290.00 |
| 1,000+ | ₹271.23 | ₹2,71,230.00 |
1 × ₹469.36
₹469.36
excl. GST
₹553.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA146UA/2K5
₹469.36 for 1 + GST
Specifications
- Settling time
- 40us
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 0.45V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 74nA
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 570uA
- Gain Bandwidth Product
- 550kHz
- Features
- Integrated precision resistor network;Current limiting / short-circuit protection
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Single Supply
- 4.5V~36V
- Noise density(eN)
- 550nV/√Hz@1kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.128 g
Overview
HIGH COMMON-MODE VOLTAGE: +40V at VS = +5V ±100V at VS = ±15V DIFFERENTIAL GAIN = 0.1V/V TO 100V/V: Set with External Resistors LOW QUIESCENT CURRENT: 570μA WIDE SUPPLY RANGE: Single Supply: 4.5V to 36V Dual Supplies: ±2.25V to ±18V LOW GAIN ERROR: 0.025% HIGH CMR: 80dB SO-8 PACKAGE
Applications
- CURRENT SHUNT MEASUREMENTS
- SENSOR AMPLIFIER
- SYNCHRONOUS DEMODULATOR
- CURRENT AND DIFFERENTIAL LINE RECEIVER
- VOLTAGE-CONTROLLED CURRENT SOURCE
- BATTERY POWERED SYSTEMS
- LOW COST AUTOMOTIVE INSTRUMENTATION
Key features
- HIGH COMMON-MODE VOLTAGE: +40V at VS = +5V ±100V at VS = ±15V
- DIFFERENTIAL GAIN = 0.1V/V TO 100V/V: Set with External Resistors
- LOW QUIESCENT CURRENT: 570μA
- WIDE SUPPLY RANGE: Single Supply: 4.5V to 36V Dual Supplies: ±2.25V to ±18V
- LOW GAIN ERROR: 0.025%
- HIGH CMR: 80dB
- SO-8 PACKAGE
