lingxingicDatasheet (PDF)

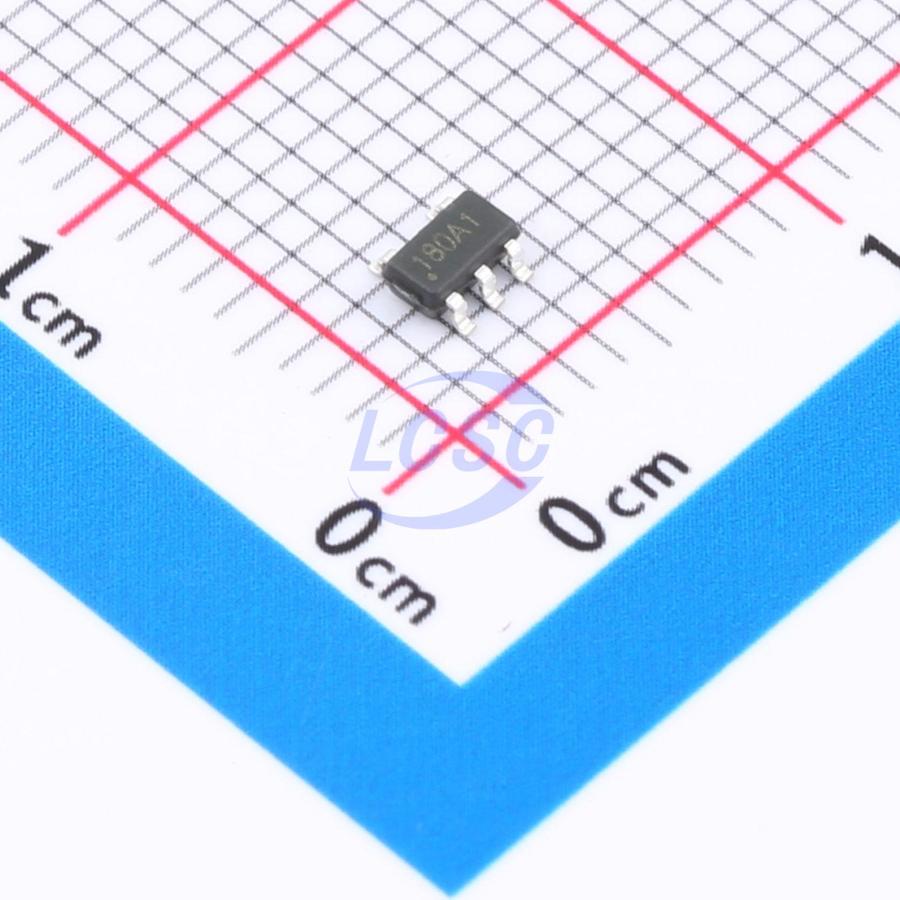

INA180A1IDBVR(LX)
8mA 1 100uV -200mV~30V 2V/us 100dB 75uA 175uA 20V/V SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Zero-drift bidirectional current sense amplifier
- Manufacturer
- lingxingic
- Manufacturer part #
- INA180A1IDBVR(LX)
- Store part #
- C48533472
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,695 in stock
#C48533472
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.73 | ₹98.65 |
| 50+ | ₹15.77 | ₹788.50 |
| 150+ | ₹13.79 | ₹2,068.50 |
| 500+ | ₹12.30 | ₹6,150.00 |
| 3,000+ | ₹10.62 | ₹31,860.00 |
| 6,000+ | ₹10.03 | ₹60,180.00 |
5 × ₹19.73
₹98.65
excl. GST
₹116.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA180A1IDBVR(LX)
₹98.65 for 5 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Vcm - Common Mode Voltage
- -200mV~30V
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 75uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 350kHz
- Quiescent Current
- 175uA
- Gain
- 20V/V
- Features
- Zero drift / auto-zero;Bidirectional detection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±30V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
INA181 and INA180 are wide-bandwidth, zero-drift, bidirectional current-sense amplifiers designed for battery monitoring, power management, overcurrent detection, and similar applications. The devices sense the voltage drop across a shunt resistor over a common-mode voltage range of -0.2V to 30V. Both devices integrate a matched resistor gain network with four fixed gain options: 20 V/V, 50 V/V, 100 V/V, and 200 V/V. The INA181 and INA180 operate from a single supply of 2.7V to 5.5V with a maximum supply current of 260μA.
Applications
- Battery monitoring
- Power management
- Overcurrent detection
Key features
- Rail-to-rail output
- Offset voltage: ±150μV (max, VCM=0V); ±500μV (max, VCM=12V)
- Gain error: ±1% (max)
- Offset drift: 1μV/℃ (max)
- Gain drift: 20ppm/℃ (max)
- Output voltage gain: 20V/V, 50V/V, 100V/V, 200V/V
- High bandwidth: 350kHz (specific variants)
- Package: SOT23-6 (INA181), SOT23-5 (INA180)
