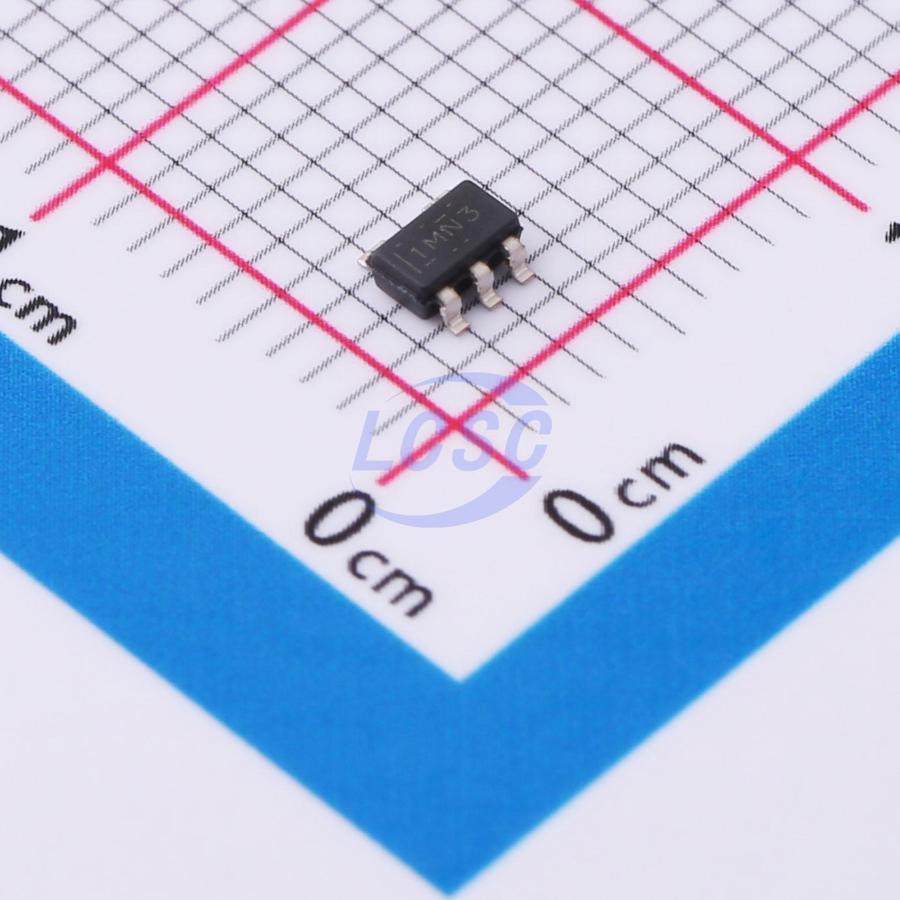

INA180A2QDBVRQ1

8mA 1 25uV -200mV~26V 2V/us 100dB 100nA 197uA 50V/V SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Automotive Low-Side and High-Side Voltage Output Current Sense Amplifier

Manufacturer: TI
Manufacturer part #: INA180A2QDBVRQ1
Store part #: C2059691
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,314 in stock

#C2059691

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹52.46	₹52.46
10+	₹40.57	₹405.70
30+	₹35.34	₹1,060.20
100+	₹29.03	₹2,903.00
500+	₹26.15	₹13,075.00
1,000+	₹24.52	₹24,520.00

Quantity (min 1)

1 × ₹52.46

₹52.46

excl. GST

₹61.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA180A2QDBVRQ1

₹52.46 for 1 + GST

Specifications

Output Current: 8mA
Number of Channels: 1
Vos - Input Offset Voltage: 25uV
Vcm - Common Mode Voltage: -200mV~26V
Slew Rate: 2V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 1uV/℃
-3dB Bandwidth: 210kHz
Quiescent Current: 197uA
Gain: 50V/V
Features: High-side detection;Low-side detection;Analog output interface;Enable/shutdown function;Input filter
Input Voltage Noise Density: 40nV/√Hz@1kHz
Differential Voltage: ±28V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

INA180-Q1, INA2180-Q1, and INA4180-Q1 (INAx180-Q1) are automotive-grade 26V common-mode current sense amplifiers suitable for both low-side and high-side configurations. These purpose-built current sense amplifiers accurately measure the voltage developed across a current sense resistor at common-mode voltages well beyond the supply voltage powering the device. Current can be measured on input voltage rails up to 26V, while the device can be powered from supply voltages as low as 2.7V.

Applications

Motor control
Battery monitoring
Power management
Lighting control overcurrent detection

Key features

AEC-Q100 qualified for automotive applications
Temperature Grade 1: -40°C ≤ TA ≤ +125°C
HBM ESD Classification Level 2
CDM ESD Classification Level C6
Functional Safety documentation available to aid functional safety system design
Common-mode range (VCM): -0.2V to +26V
High bandwidth: 350kHz (A1 device)
Offset voltage:
±150μV (maximum) at VCM = 0V
±500μV (maximum) at VCM = 12V
Output slew rate: 2V/μs
Accuracy:
±1% gain error (maximum)
1μV/°C temperature drift (maximum)
Gain options:
20V/V (A1 device)
50V/V (A2 device)
100V/V (A3 device)
200V/V (A4 device)
Quiescent current: 260μA (maximum) (INA180-Q1)

Alternatives

Similar parts — check the datasheet before substituting.
