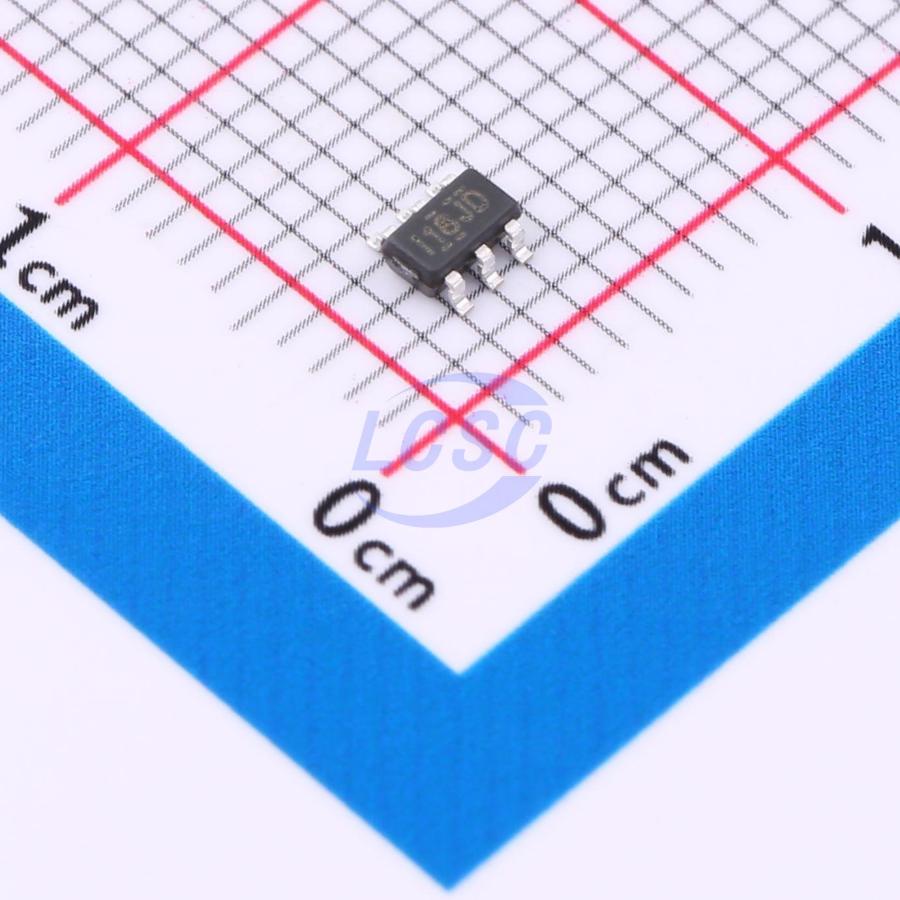

INA181A1IDBVR(XBLW)
8mA 1 -200mV~30V 25uV 2V/us 100dB 75uA 175uA 20V/V SOT-23-6 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-6ROHS CompliantActive
Zero Drift Bidirectional Current Detection Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- INA181A1IDBVR(XBLW)
- Store part #
- C45351496
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,385 in stock
#C45351496
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.96 | ₹134.80 |
| 50+ | ₹21.49 | ₹1,074.50 |
| 150+ | ₹19.14 | ₹2,871.00 |
| 500+ | ₹16.22 | ₹8,110.00 |
| 3,000+ | ₹13.83 | ₹41,490.00 |
| 6,000+ | ₹13.04 | ₹78,240.00 |
5 × ₹26.96
₹134.80
excl. GST
₹159.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA181A1IDBVR(XBLW)
₹134.80 for 5 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- -200mV~30V
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 75uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 350kHz
- Quiescent Current
- 175uA
- Gain
- 20V/V
- Features
- Zero drift / auto-zero;Bidirectional detection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±30V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
