TIDatasheet (PDF)

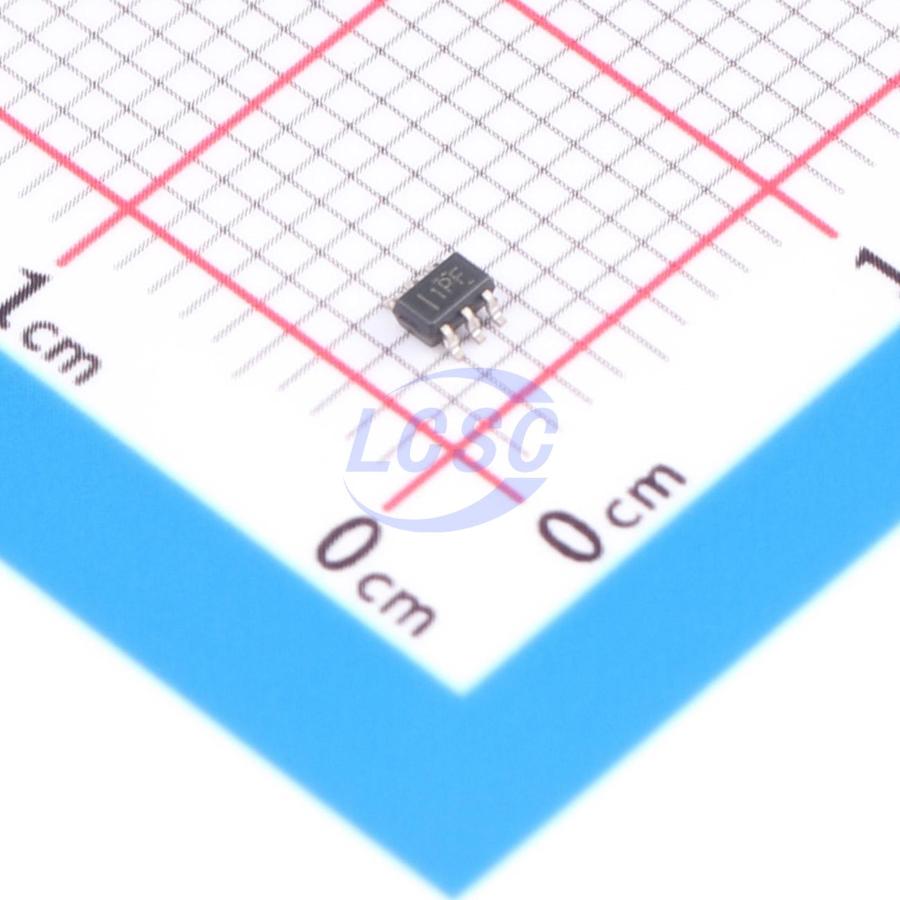

INA181A3IDCKR
8mA 1 -200mV~26V 25uV 2V/us 100dB 195uA 100V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-6ROHS CompliantActive
INAx181 Bidirectional Low-Side and High-Side Voltage Output Current Sense Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- INA181A3IDCKR
- Store part #
- C32077329
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,814 in stock
#C32077329
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.07 | ₹64.07 |
| 10+ | ₹54.22 | ₹542.20 |
| 30+ | ₹47.36 | ₹1,420.80 |
| 100+ | ₹41.58 | ₹4,158.00 |
| 500+ | ₹39.65 | ₹19,825.00 |
| 1,000+ | ₹38.58 | ₹38,580.00 |
1 × ₹64.07
₹64.07
excl. GST
₹75.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
INA181A3IDCKR
₹64.07 for 1 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vcm - Common Mode Voltage
- -200mV~26V
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 150kHz
- Quiescent Current
- 195uA
- Gain
- 100V/V
- Features
- Bidirectional detection;Analog output interface;Programmable output reference level
- Differential Voltage
- ±26V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.086 g
