INA199A1DCKR

1 -300mV~26V 5uV 0.4V/us 120dB 28uA 65uA 50V/V SOT-363(SC-70-6) Instrumentation, Op Amps, Buffer Amps RoHS

SOT-363(SC-70-6)ROHS3 CompliantActive

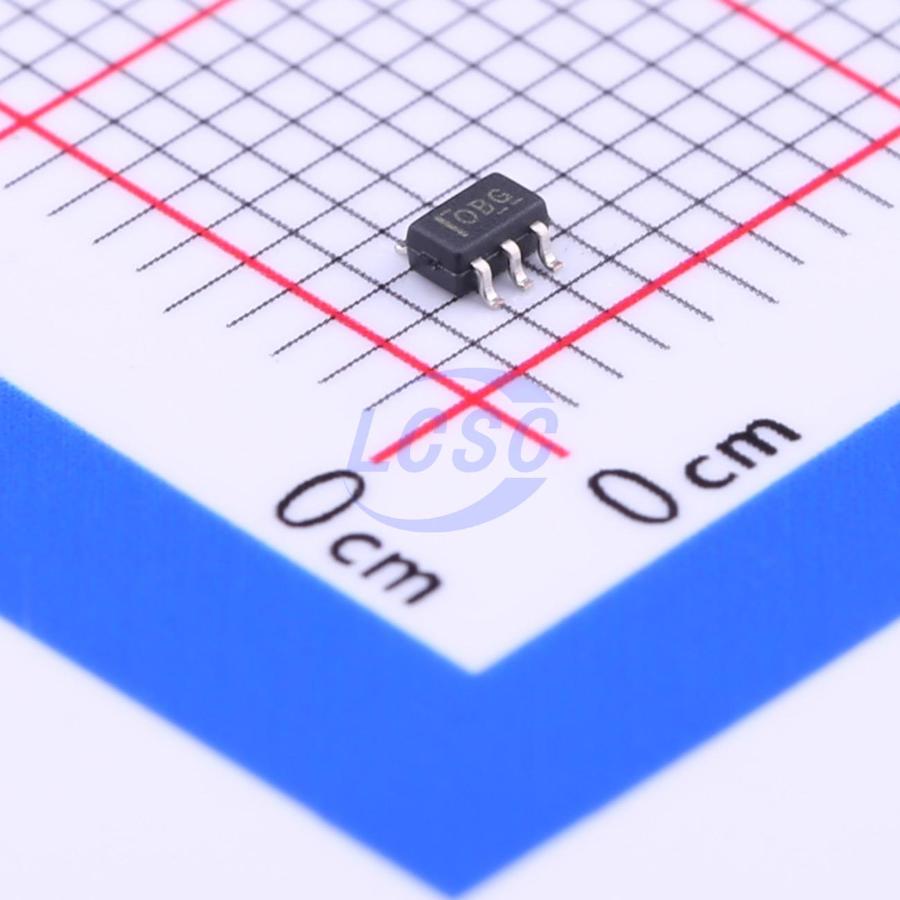

Voltage output, high-side or low-side measurement, bidirectional zero-drift series current shunt monitor

Manufacturer: TI
Manufacturer part #: INA199A1DCKR
Store part #: C59135
Package / case: SOT-363(SC-70-6)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,36,382 in stock

#C59135

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹53.89	₹53.89
10+	₹42.38	₹423.80
30+	₹36.94	₹1,108.20
100+	₹31.95	₹3,195.00
500+	₹30.64	₹15,320.00
1,000+	₹29.77	₹29,770.00

Quantity (min 1)

1 × ₹53.89

₹53.89

excl. GST

₹63.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA199A1DCKR

₹53.89 for 1 + GST

Specifications

Number of Channels: 1
Vcm - Common Mode Voltage: -300mV~26V
Vos - Input Offset Voltage: 5uV
Slew Rate: 0.4V/us
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 28uA
Input Offset Voltage Drift(Vos TC): 0.5uV/℃
-3dB Bandwidth: 14kHz
Quiescent Current: 65uA
Gain: 50V/V
Features: Built-in comparator;Input filter;High-side detection;Low-side detection;Bidirectional detection;Zero drift / auto-zero;Analog output interface
Input Voltage Noise Density: 25nV/√Hz@1kHz
Differential Voltage: ±26V
Single Supply: 2.7V~26V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.113 g

Overview

The INA199 series voltage-output current shunt monitors sense the voltage drop across the shunt over a common-mode voltage range of -0.3V to 26V, independent of the supply voltage. Three fixed gains are available: 50V/V, 100V/V, and 200V/V. The low offset of the zero-drift architecture enables full-scale sensing of voltage drops across the shunt as low as 10mV. These devices operate from a single +2.7V to +26V supply, drawing a maximum supply current of 100μA. All versions are rated for operation from -40°C to +105°C and are available in SC70 and thin QFN-10 packages. These devices incorporate limited built-in ESD protection.

Applications

Notebook computers
Mobile phones
Telecom equipment power management
Battery chargers
Soldering equipment

Key features

Wide common-mode range: -0.3V to 26V
Offset voltage: ±150μV (maximum) (enables 10mV full-scale shunt voltage drop)
±1.5% gain error (maximum over temperature range)
0.5μV/°C offset drift (maximum)
10ppm/°C gain drift (maximum)
Gain selection: INA199A1/B1: 50V/V; INA199A2/B2: 100V/V; INA199A3/B3: 200V/V
Quiescent current: 100μA (maximum)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
INA199A1DCKT#C2653849TI · SC-70-6	TI	SC-70-6	680	₹60.42 · 680 in stock	View
NCS199A1RSQT2G#C511967onsemi · SC-70-6	onsemi	SC-70-6	200	₹106.12 · 200 in stock	View
INA199A1DC(LX)#C54279238lingxingic · SOT-363	lingxingic	SOT-363	5,590	₹23.85 · 5,590 in stock	View
