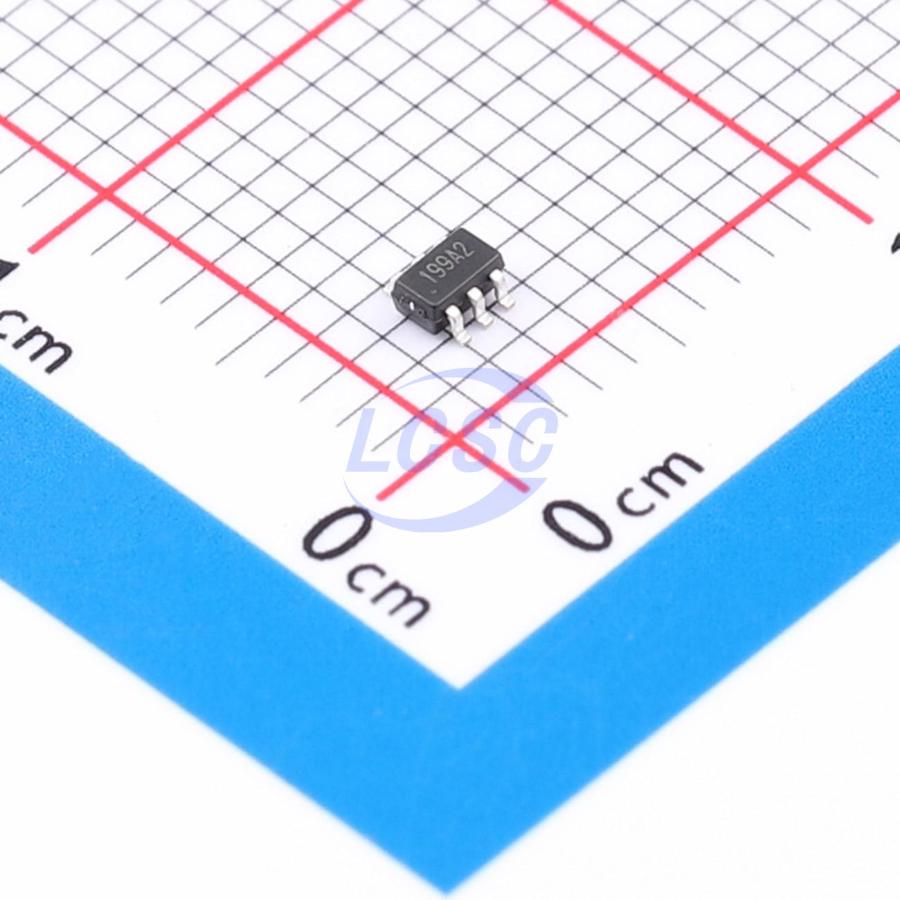

lingxingic

INA199A2DC(LX)

110uA 100V/V 1 -200mV~3V 60uV 0.45V/us 110dB 35uA SOT-363 Instrumentation, Op Amps, Buffer Amps

SOT-363RoHSActive

Manufacturer: lingxingic
Manufacturer part #: INA199A2DC(LX)
Store part #: C54279239
Package / case: SOT-363
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,120 in stock

#C54279239

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.13	₹135.65
50+	₹21.43	₹1,071.50
150+	₹19.00	₹2,850.00
500+	₹15.94	₹7,970.00
3,000+	₹14.54	₹43,620.00
6,000+	₹13.72	₹82,320.00

Quantity (min 5, multiples of 5)

5 × ₹27.13

₹135.65

excl. GST

₹160.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA199A2DC(LX)

₹135.65 for 5 + GST

Specifications

Quiescent Current: 110uA
Gain: 100V/V
Number of Channels: 1
Vcm - Common Mode Voltage: -200mV~3V
Vos - Input Offset Voltage: 60uV
Slew Rate: 0.45V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 35uA
Single Supply: 2.7V~30V
-3dB Bandwidth: 30kHz
Input Offset Voltage Drift(Vos TC): 0.1uV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The INA199 is a zero-drift, bidirectional current-sensing amplifier operating from a 2.7V to 30V single supply, capable of sensing the voltage drop across a shunt resistor at common-mode voltages from -0.2V to 30V. It is primarily used in high-side and low-side current sensing, battery charging, and power management systems. The series offers three fixed gain options: 50V/V, 100V/V, and 200V/V. The zero-drift architecture ensures low offset voltage. Under typical conditions, the INA199 draws 110µA of supply current.

Applications

Configuring the INA199 VREF pin voltage enables unidirectional (positive or negative) and bidirectional (positive and negative) current sensing.
When the REF pin is driven by the negative supply GND voltage, positive current can be sensed within an output voltage range of (50mV ~ V+ - 50mV), with the output voltage increasing linearly as the measured current increases.
When the REF pin is driven by the positive supply V+ voltage, negative current can be sensed within an output voltage range of (50mV ~ V+ - 50mV), with the output voltage decreasing linearly as the measured current increases.
When the REF pin is driven by (VIN+ - GND)/2, both positive and negative currents can be sensed within an output voltage range of (50mV ~ V+ - 50mV)/2. For positive current sensing, the output voltage increases linearly as the measured current increases; for negative current sensing, the output voltage decreases linearly as the measured current increases.
In bidirectional current sensing applications, if the REF pin is driven by an external reference source through a resistor divider, a voltage buffer must be inserted after the divider before driving the REF pin.
In the basic INA199 connections described above, the IN+ and IN- pins should be connected as directly as possible to the sense resistor to minimize any series resistance with the sense resistor. A power supply bypass capacitor is required for stability; a value of 100nF is recommended, placed close to the device's V+ pin.

Key features

Input offset voltage: ±200μV max
Input common-mode voltage range: -0.2V~30V
Supply voltage: 2.7V~30V
Accuracy and zero-drift characteristics: ±1% gain error (max, full temperature), 0.5μV/℃ offset drift max, 10ppm/℃ gain drift max
Output voltage gain: 50V/V (INA199A1), 100V/V (INA199A2), 200V/V (INA199A3)
Supply current: 110μA (typical)
Rail-to-rail output
Temperature range: -40℃~125℃
Package: SOT363
ESD rating: 4KV - HBM
