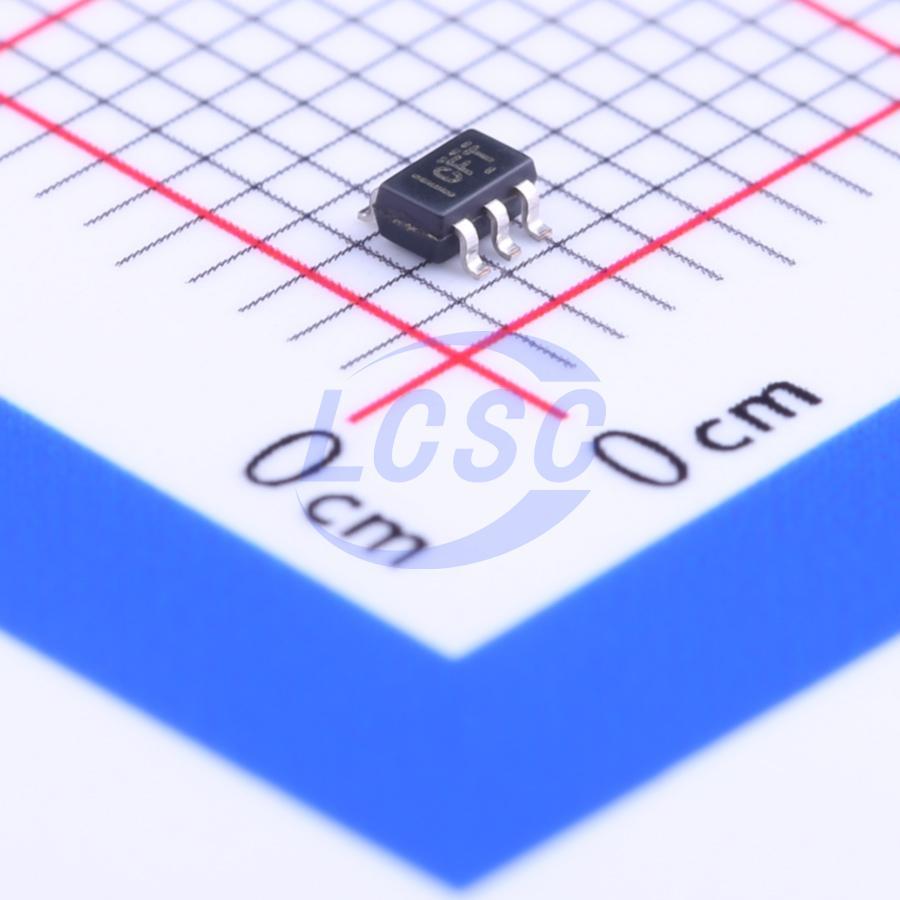

INA213AIDCKR

1 -300mV~26V 5uV 0.4V/us 120dB 28uA 65uA 50V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-6ROHS CompliantActive

Low- or High-Side Measurement, Bidirectional Zero-Drift Current-Shunt Monitors

Manufacturer: TI
Manufacturer part #: INA213AIDCKR
Store part #: C129346
Package / case: SC-70-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,833 in stock

#C129346

Stock & price checked 15 h ago

Quantity	Unit price	Pack price
1+	₹82.66	₹82.66
10+	₹62.87	₹628.70
30+	₹54.16	₹1,624.80
100+	₹43.51	₹4,351.00
500+	₹38.95	₹19,475.00
1,000+	₹35.89	₹35,890.00

Quantity (min 1)

1 × ₹82.66

₹82.66

excl. GST

₹97.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA213AIDCKR

₹82.66 for 1 + GST

Specifications

Number of Channels: 1
Vcm - Common Mode Voltage: -300mV~26V
Vos - Input Offset Voltage: 5uV
Slew Rate: 0.4V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 28uA
Input Offset Voltage Drift(Vos TC): 0.5uV/℃
-3dB Bandwidth: 80kHz
Quiescent Current: 65uA
Gain: 50V/V
Features: High-side detection;Low-side detection;Bidirectional detection;Zero drift / auto-zero;Input filter;Programmable output reference level;Analog output interface
Input Voltage Noise Density: 25nV/√Hz@1kHz
Differential Voltage: ±26V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Six fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full-scale. These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 μA of supply current. All versions are specified over the extended operating temperature range (-40°C to +125°C), and offered in SC70 and UQFN packages.

Applications

Notebook Computers
Cell Phones
Telecom Equipment
Power Management
Battery Chargers

Key features

Wide Common-Mode Range: -0.3 V to 26 V
Offset Voltage: ±35 μV (Maximum, INA210) (Enables Shunt Drops of 10 mV Full-Scale)
Gain Error (Maximum Over Temperature): – ±0.5% (Version C) – ±1% (Versions A and B)
0.5-μV/°C Offset Drift (Maximum)
10-ppm/°C Gain Drift (Maximum)
Choice of Gains: INA210: 200 V/V; INA211: 500 V/V; INA212: 1000 V/V; INA213: 50 V/V; INA214: 100 V/V; INA215: 75 V/V
Quiescent Current: 100 μA (Maximum)
SC70 and Thin UQFN Packages: All Models
