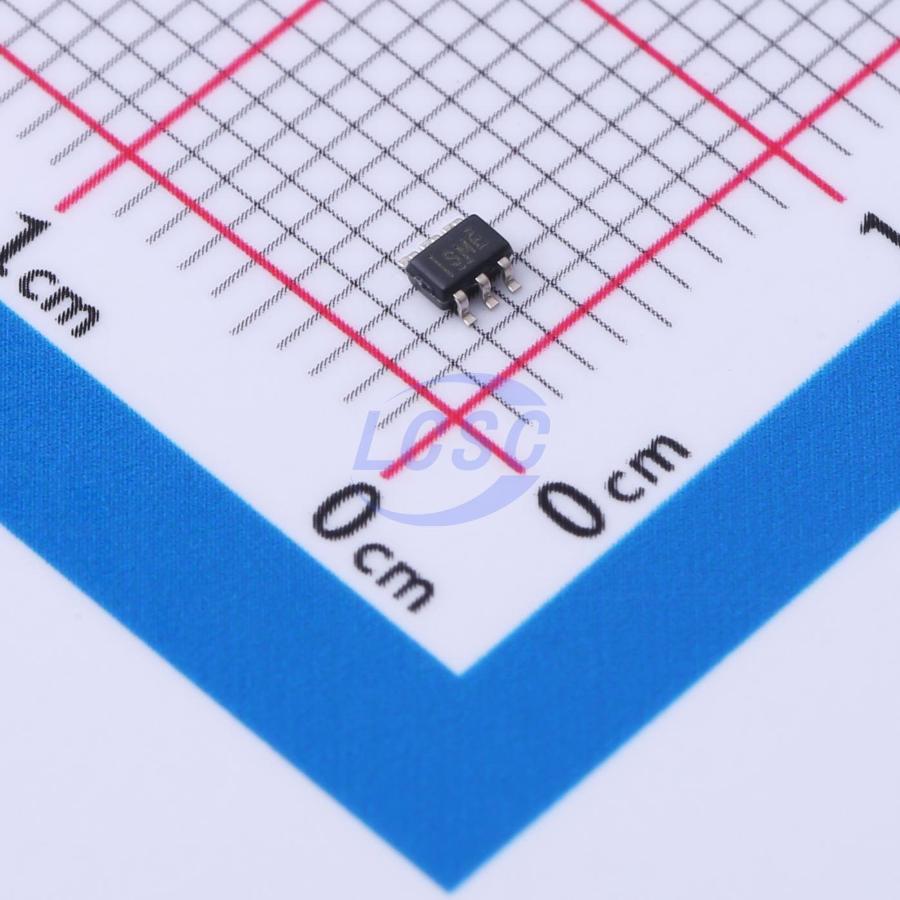

INA215AIDCKR

1 -300mV~26V 1uV 0.4V/us 140dB 28uA 65uA 75V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-6ROHS3 CompliantActive

Voltage Output, Low-Side or High-Side Measurement, Bidirectional, Zero-Drift Series Current Sense Amplifiers

Manufacturer: TI
Manufacturer part #: INA215AIDCKR
Store part #: C202258
Package / case: SC-70-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,100 in stock

#C202258

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹134.85	₹134.85
10+	₹111.37	₹1,113.70
30+	₹98.31	₹2,949.30
100+	₹83.75	₹8,375.00
500+	₹77.22	₹38,610.00
1,000+	₹74.39	₹74,390.00

Quantity (min 1)

1 × ₹134.85

₹134.85

excl. GST

₹159.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA215AIDCKR

₹134.85 for 1 + GST

Specifications

Number of Channels: 1
Vcm - Common Mode Voltage: -300mV~26V
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.4V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 28uA
Input Offset Voltage Drift(Vos TC): 0.5uV/℃
-3dB Bandwidth: 40kHz
Quiescent Current: 65uA
Gain: 75V/V
Features: External shunt;Analog output interface;High-side detection;Low-side detection;Bidirectional detection;Zero drift / auto-zero;Input filter;Programmable output reference level
Input Voltage Noise Density: 25nV/√Hz@1kHz
Differential Voltage: ±26V
Single Supply: 2.7V~26V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

The INA21x are voltage-output, shunt monitors (also known as current-sense amplifiers). These devices typically provide overcurrent protection and precision current measurement for system optimization, and are also commonly used in closed-loop feedback circuits. This family of devices senses the voltage drop across a shunt resistor over a common-mode voltage range of –0.3V to 26V, independent of the supply voltage. Six fixed gain options are available: 50V/V, 75V/V, 100V/V, 200V/V, 500V/V, or 1000V/V. The zero-drift architecture and low offset of this family enable current sensing with a maximum full-scale voltage drop across the shunt resistor of less than 10mV. This family of devices operates from a single supply voltage of 2.7V to 26V with a maximum quiescent current of 100μA. All device versions are rated for operation over an extended temperature range of –40°C to +125°C, and are available in SC70 and UQFN packages.

Applications

Laptops
Mobile phones
Telecom equipment
Power management
Battery chargers

Key features

Wide common-mode voltage range: -0.3V to 26V
Offset voltage: ±35μV (maximum, INA210) (enables shunt voltage drops as low as 10mV full scale)
Gain error (maximum over temperature): ±0.5% (version C), ±1% (versions A and B)
Offset drift: 0.5μV/°C (maximum)
Gain drift: 10ppm/°C (maximum)
Gain selection: INA210: 200V/V; INA211: 500V/V; INA212: 1000V/V; INA213: 50V/V; INA214: 100V/V; INA215: 75V/V
Quiescent current: 100μA (maximum)
SC70 and thin UQFN packages: all versions
