TIDatasheet (PDF)

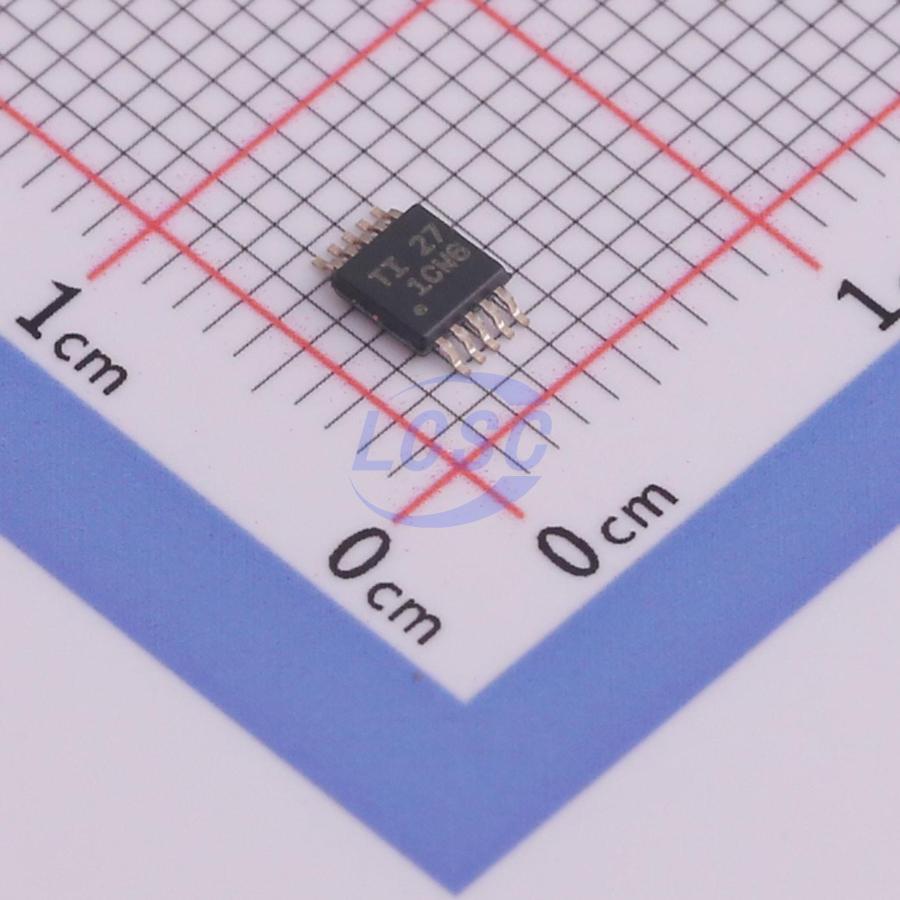

INA2181A1IDGSR
8mA 1 25uV -200mV~26V 2V/us 100dB 75uA 356uA 20V/V VSSOP-10-0.5mm Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
Current Sense Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- INA2181A1IDGSR
- Store part #
- C1848164
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,742 in stock
#C1848164
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.16 | ₹73.16 |
| 10+ | ₹61.88 | ₹618.80 |
| 30+ | ₹54.06 | ₹1,621.80 |
| 100+ | ₹47.34 | ₹4,734.00 |
| 500+ | ₹45.38 | ₹22,690.00 |
| 1,000+ | ₹44.07 | ₹44,070.00 |
1 × ₹73.16
₹73.16
excl. GST
₹86.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA2181A1IDGSR
₹73.16 for 1 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 25uV
- Vcm - Common Mode Voltage
- -200mV~26V
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 75uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 350kHz
- Quiescent Current
- 356uA
- Gain
- 20V/V
- Features
- High-side detection;Low-side detection;Bidirectional detection;Analog output interface
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Differential Voltage
- ±26V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | INA381A1QDGSRQ1#C2862689TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 18 | ₹128.93 · 18 in stock | View |
