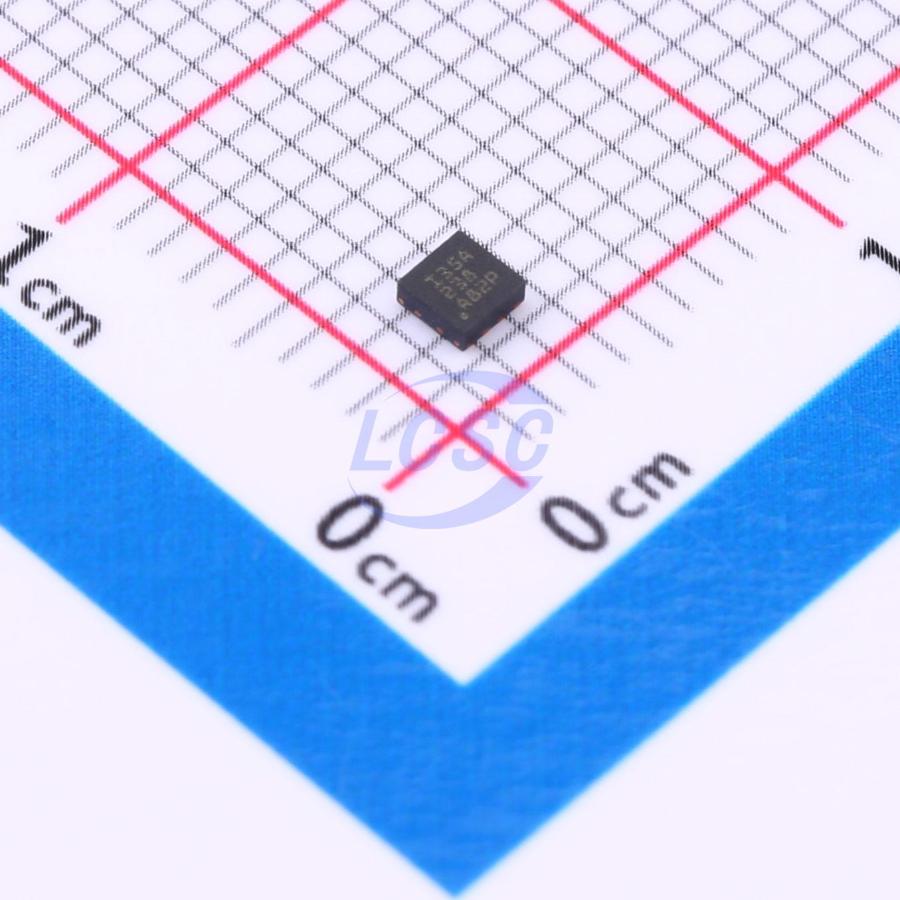

INA350ABSIDSGR

20mA 1 1.2mV 0.24V/us 95dB 0.65pA 100uA Rail-to-rail input WSON-8(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

WSON-8(2x2)ROHS CompliantActive

Low-power selectable-gain instrumentation amplifier

Manufacturer: TI
Manufacturer part #: INA350ABSIDSGR
Store part #: C4370677
Package / case: WSON-8(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,866 in stock

#C4370677

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹64.48	₹64.48
10+	₹54.49	₹544.90
30+	₹47.55	₹1,426.50
100+	₹41.69	₹4,169.00
500+	₹39.95	₹19,975.00
1,000+	₹38.87	₹38,870.00

Quantity (min 1)

1 × ₹64.48

₹64.48

excl. GST

₹76.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA350ABSIDSGR

₹64.48 for 1 + GST

Specifications

Settling time: 17us
Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.2mV
Slew Rate: 0.24V/us
Input Offset Current(Ios): 0.25pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 0.65pA
Input Offset Voltage Drift(Vos TC): 1.3mV/℃
Quiescent Current: 100uA
Features: Digitally programmable gain;Enable/shutdown function
Input Voltage Noise Density: 36nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-rail input
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.018 g

Overview

The INA350 is a selectable-gain instrumentation amplifier offering four gain options, available in compact packages as the INA350ABS and INA350CDS. The INA350ABS provides gain options of 10 or 20, while the INA350CDS provides gain options of 30 or 50. These gain options are selected by toggling the gain select (GS) pin. The INA350 is an ideal choice for bridge sensing and differential-to-single-ended conversion applications. The INA350 is built with precision-matched integrated resistors, eliminating the need for precision or closely matched external resistors, thereby saving BOM cost, pick-and-place handling cost, and board space. The device connects directly to low-speed 10-bit to 14-bit ADCs, making it well suited as a drop-in replacement for discrete instrumentation amplifier implementations built with commodity amplifiers and discrete resistors. The INA350 is designed with a three-amplifier architecture for enhanced performance. It achieves a minimum CMRR of 85 dB and a maximum gain error of 0.6% across all gain options, along with a maximum offset voltage of 1.2 mV, while consuming a maximum quiescent current of only 125 μA. It features an integrated shutdown option that turns off the amplifier when idle, further conserving power in battery-powered applications.

Applications

Bridge network sensing
Differential-to-single-ended conversion
Weigh scales
Analog input modules
Flow transmitters
Wearable fitness and activity monitors
Blood glucose monitoring
Pressure and temperature sensing

Key features

Selectable gain options:
G = 10 or G = 20 (INA350ABS)
G = 30 or G = 50 (INA350CDS)
Space-saving ultra-small package options:
10-pin X2QFN (RUG) – 3mm²
8-pin WSON (DSG) – 4mm²
8-pin SOT23 - THN (DDF) – 4.64mm²
Optimized performance for 10-bit to 14-bit systems:
CMRR: 95 dB (typical) at all gains
Offset voltage: 0.2mV (typical) at all gains
Gain error (typical):
0.05% at G = 10; 0.06% at G = 20
0.075% at G = 30; 0.082% at G = 50
Bandwidth: 100kHz (typical) at G = 10, driving 500 pF with less than 20% overshoot (typical)
Optimized quiescent current: 100μA (typical)
Shutdown option for power-sensitive applications
Supply voltage range: 1.8V (±0.9V) to 5.5V (±2.75V)
Rated temperature range: -40°C to 125°C
