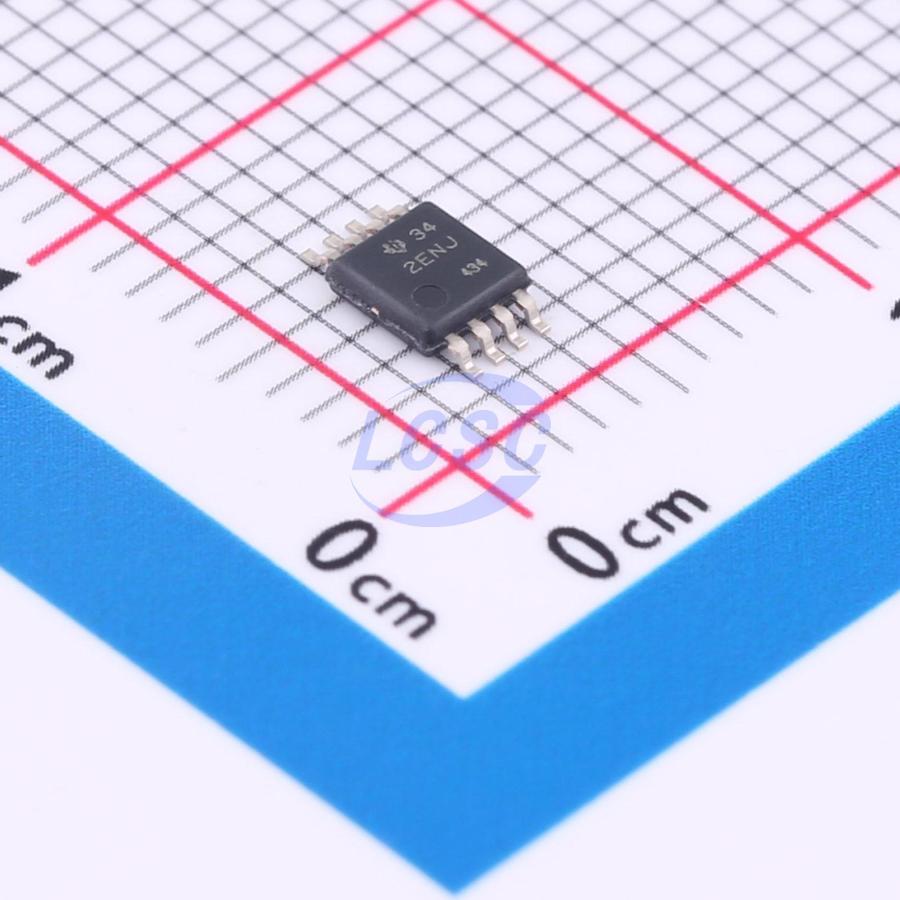

INA849DGKR

The INA849 is an ultra-low noise instrumentation amplifier optimized for higher precision in high-resolution systems, operating over a wide range of single or dual supply voltages. Thanks to super-β input transistors, the device achieves significantly lower input bias current than competing products. An advanced manufacturing process delivers ultra-low voltage noise, input offset voltage, and offset voltage drift. Precision-matched integrated resistors provide high common-mode rejection of 92dB (G = 1) across the full input common-mode range. Any gain from 1 to 10,000 can be set with a single external resistor. The INA849's current feedback topology delivers wide bandwidth at higher gains, enabling fast-moving ultra-small signals. For example, the device provides 8MHz bandwidth at G = 100 and 28MHz bandwidth at G = 1, with a fast settling time of 0.4µs (0.01%) for direct drive of high-resolution ADCs.

Applications

• Analog input modules
• Microphone preamplifiers
• Flow transmitters
• Battery testing
• LCD testing
• Electrocardiogram (ECG)
• Surgical equipment
• Process analysis (pH, gas, concentration, force, and humidity)

Key features

• Ultra-low noise: 1nV/√Hz input voltage noise (typical)
• Precision super-β input performance:
• Low offset voltage: 35µV (max)
• Low offset voltage drift: 0.4µV/°C (max)
• Low input bias current: 20nA (max)
• Low gain drift: 5ppm/°C (max) at G = 1
• CMRR: 120dB (min) at maximum gain
• Bandwidth: 28MHz (G = 1), 8MHz (G = 100)
• Slew rate: 35V/µs
• Rated temperature range: -40°C to +125°C
• Package: 8-pin SOIC and VSSOP
