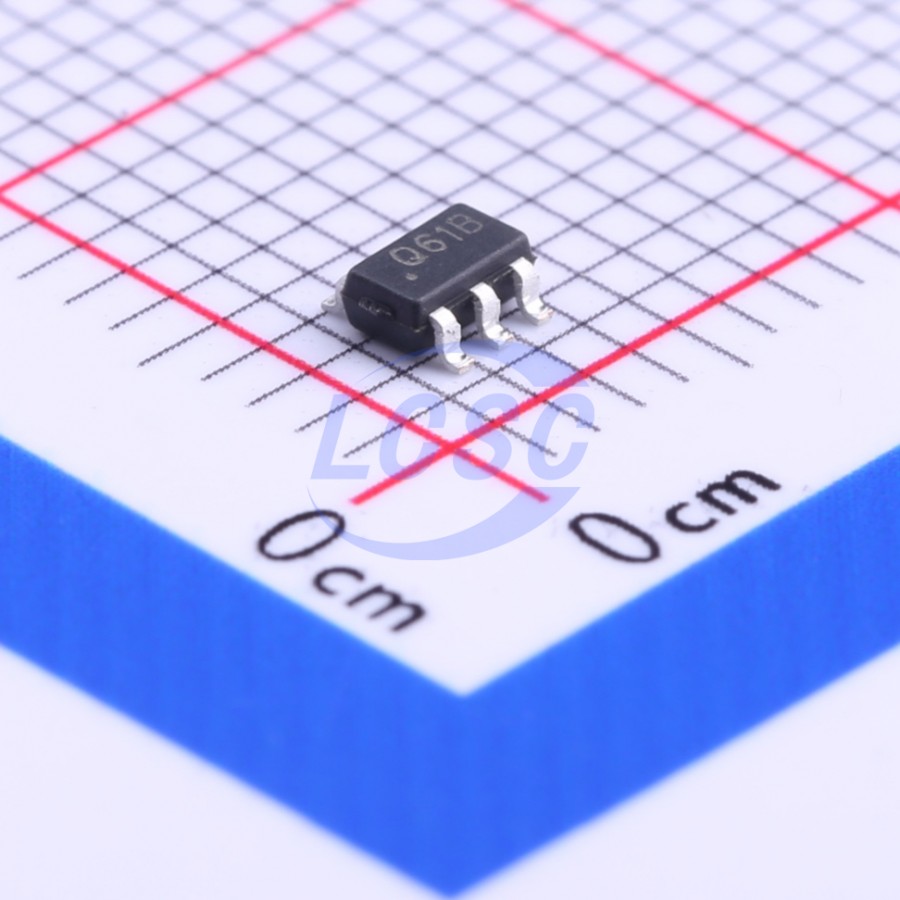

IP2161
nan
Integrated fast-charging protocol IC for USB ports supporting 7 protocols
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2161
- Store part #
- C185471
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,874 in stock
#C185471
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹21.39 | ₹21.39 |
| 10+ | ₹18.79 | ₹187.90 |
| 30+ | ₹17.66 | ₹529.80 |
| 100+ | ₹16.27 | ₹1,627.00 |
| 500+ | ₹15.65 | ₹7,825.00 |
| 1,000+ | ₹14.42 | ₹14,420.00 |
1 × ₹21.39
₹21.39
excl. GST
₹25.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IP2161
₹21.39 for 1 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
IP2161 is a multi-protocol fast charging IC integrated with 7 fast charging protocols for USB output ports, supporting HVDCP QC3.0/QC2.0 (Quick Charge) Class A, FCP (Hisilicon Fast Charge Protocol), AFC (Samsung Adaptive Fast Charge), SFCP (Spreadtrum Fast Charge Protocol), Apple 2.4A, BC1.2, and Samsung 2.0A. IP2161 supports automatic device type detection and charging protocol switching, with automatic response to fast charging protocol requests. IP2161 integrates an FB control interface, enabling precise output voltage regulation by adjusting the FB SOURCE/SINK current (minimum 2uA/step).
Applications
- USB power output interface
- Power bank
- Car charger
- Smartphone
- Tablet
- Netbook
- Digital camera
- Battery charger for Bluetooth accessories
Key features
- Supports 7 USB port charging protocols: QC3.0/QC2.0, FCP, AFC, SFCP, Apple 2.4A, BC1.2, and Samsung 2.0A
- Automatic fast charge protocol or standard charging control selection
- Qualcomm certificate number: 478786303-2
- QC3.0 Class A support: 3.6V~12V (0.2V/step)
- QC2.0 Class A support: 5V, 9V, and 12V
- Huawei FCP fast charge support: 5V and 9V voltage configuration
- Samsung AFC fast charge support: 5V and 9V voltage configuration
- Apple 2.4A support: DP = 2.7V, DM = 2.7V
- Samsung 2.0A support: DP = 1.2V, DM = 1.2V
- BC1.2 support: DP and DM short-circuited
- SEL-configurable maximum voltage for fast charge protocol request: 12V, 9V, or 5V
- Auto-detection of fast charge requests via DP/DM voltage; precise output voltage control via FB adjustment
- Low quiescent current: IQ = 66uA (Typ.)
- Operating voltage range: 3V~5.5V
- Package: SOT23-6
