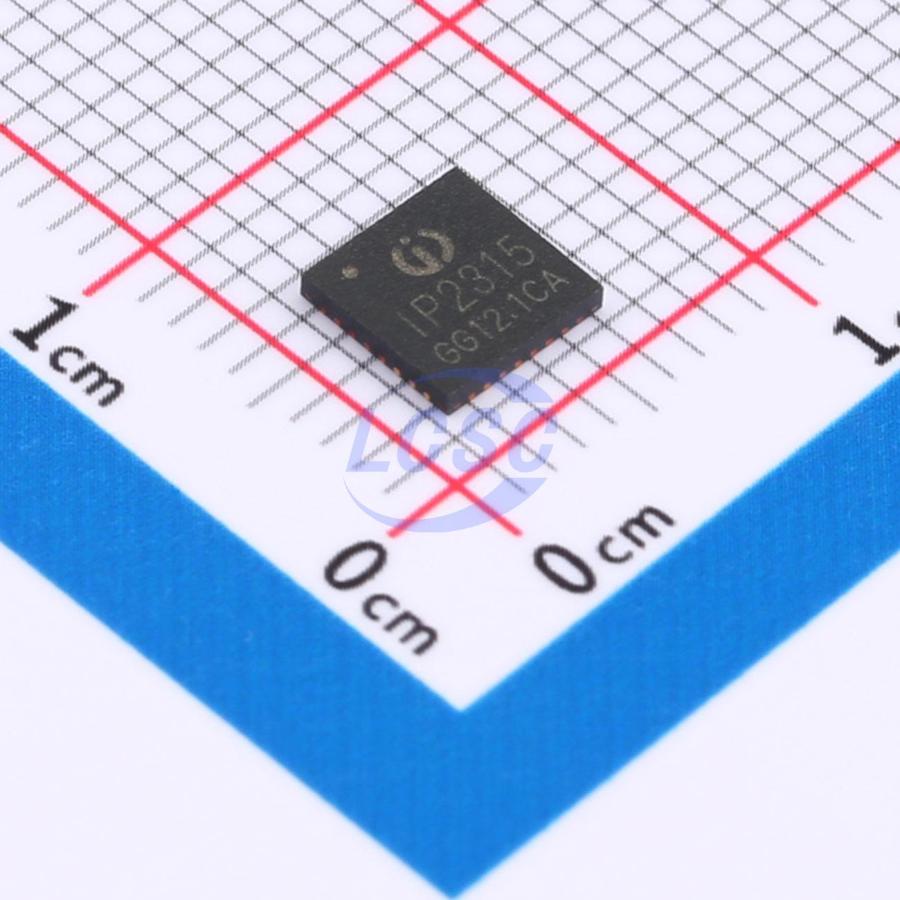

IP2315
Battery Charging IC Lithium Battery QFN-32-EP(5x5)
Single-cell lithium battery synchronous switching step-down charging IC with integrated input fast charging protocol
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2315
- Store part #
- C2764357
- Package / case
- QFN-32-EP(5x5)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,640 in stock
#C2764357
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.41 | ₹140.41 |
| 10+ | ₹115.25 | ₹1,152.50 |
| 30+ | ₹102.78 | ₹3,083.40 |
| 100+ | ₹90.31 | ₹9,031.00 |
| 500+ | ₹74.18 | ₹37,090.00 |
| 1,000+ | ₹70.32 | ₹70,320.00 |
1 × ₹140.41
₹140.41
excl. GST
₹165.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IP2315
₹140.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Interface
- I2C
- Quiescent Current
- 60uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 5V~12V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 4.8A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
IP2315 is a high-efficiency synchronous buck battery charge management IC integrating a power MOSFET and input fast-charging protocols. The input voltage range is 5V–12V, with support for Type-C PD, Huawei FCP, Samsung AFC, MTK PE+1.1/2.0, and other input fast-charging protocols, enabling the IC to request 9V or 12V from the adapter to reduce charging time. The charging current at the input can be set via the ISET pin; with a 9V/2A input, the maximum charging current at the battery terminal can reach 4.8A (3.7V battery). It is compatible with low-current adapters and will automatically reduce the charging current when the adapter's output capability is insufficient, preventing adapter overload. The output battery voltage can be set via the VSET pin, supporting 4.2V, 4.35V, 4.4V, and 4.5V Li-ion batteries. The switching frequency is 500kHz with high conversion efficiency — for example, reaching 93% under conditions of VIN=12V, BAT=3.7V, and IBAT=4.5A. The IC supports 1–2 LED status indicators and can automatically detect the number of connected LEDs. It features charging NTC temperature protection, input overvoltage protection, and chip over-temperature protection, and supports an I²C interface.
Applications
- Bluetooth speaker
- POS terminal
- E-cigarette
Key features
- Input voltage range: 5V~12V
- Maximum battery charging current: 4.8A @ 9V/2A input
- Battery output voltage VSET pin selectable (4.2V/4.35V/4.4V/4.5V)
- Charging current ISET pin programmable (sets input terminal current)
- Integrated power MOSFET
- High-efficiency synchronous buck charging: 94% (VIN=5V, BAT=3.7V, IBAT=4A); 93.5% (VIN=9V, BAT=3.7V, IBAT=4A); 93% (VIN=12V, BAT=3.7V, IBAT=4A)
- Supports Type-C PD input fast charging protocol
- Supports Huawei FCP, Samsung AFC, MTK PE+1.1/2.0 input fast charging protocols
- Supports low-current adapters with adaptive charging current adjustment
- Supports 1~2 LED charge status indication with automatic LED count detection
- Supports charging NTC thermal protection
- Supports input overvoltage protection and IC over-temperature protection
- Supports I²C interface
- ESD 4KV
- Package: 5mm×5mm, 0.5mm pitch QFN32
