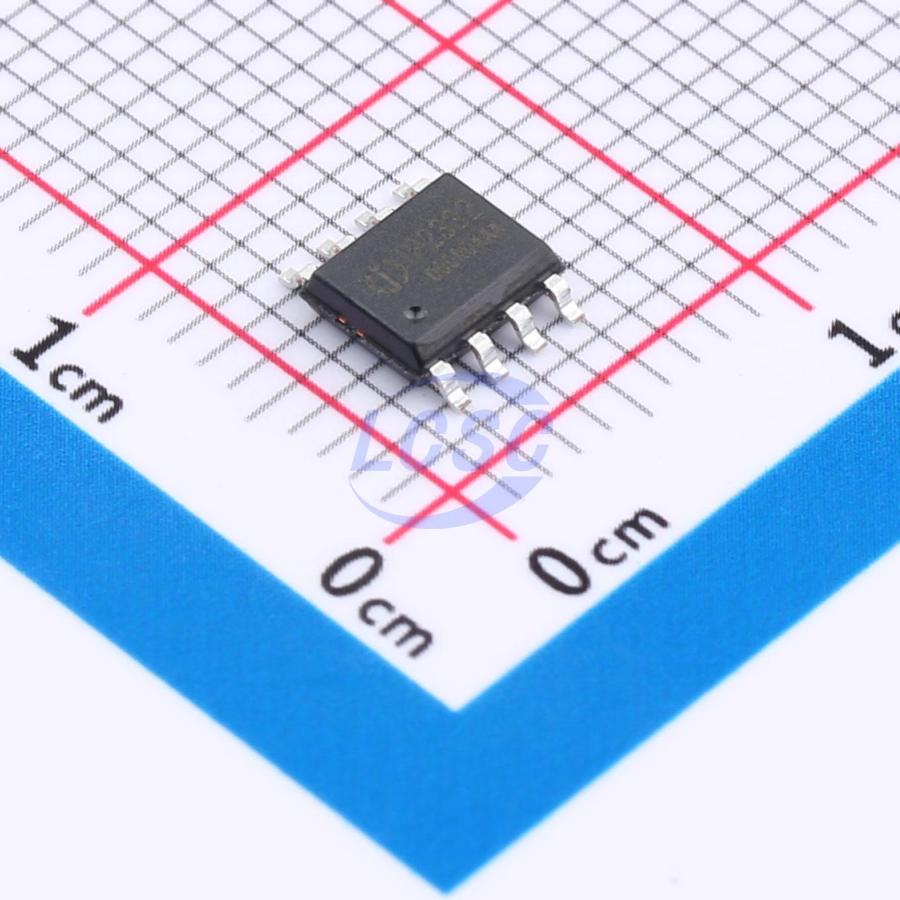

IP2332
Battery Charging IC LiFePO4 Battery ESOP-8
Single-cell lithium battery synchronous switching step-down charging chip
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2332
- Store part #
- C42411069
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,885 in stock
#C42411069
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.98 | ₹134.90 |
| 50+ | ₹21.18 | ₹1,059.00 |
| 150+ | ₹18.71 | ₹2,806.50 |
| 500+ | ₹15.61 | ₹7,805.00 |
| 2,500+ | ₹14.22 | ₹35,550.00 |
| 4,000+ | ₹13.40 | ₹53,600.00 |
5 × ₹26.98
₹134.90
excl. GST
₹159.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP2332
₹134.90 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Quiescent Current
- 1uA
- Type of Battery
- LiFePO4 Battery
- Operating Voltage
- 4.5V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.4A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
IP2332 is a 5V input, single-cell lithium battery synchronous buck charging management IC. With integrated power MOSFETs and a synchronous switching architecture, it requires minimal external components, effectively reducing overall solution size and BOM cost. The buck switching charger operates at 500KHz with a maximum charging current of 2.4A; at 5V input with 3.7V/2A, conversion efficiency reaches 92%. Charging current is configurable via external resistors. With 5V input, the IC intelligently adjusts charging current to prevent adapter overload. Supports dual-LED display; LED1 features constant-current output (no series current-limiting resistor required), with optional breathing light function. Supports NTC functionality with 5-stage NTC charging standard — charging stops at low or high NTC temperatures, while charging current or termination voltage can be reduced at mid-low or mid-high temperatures. Available in ESOP8 package.
Applications
- Single-cell lithium battery charging
Key features
- Synchronous step-down switching charger, integrated power MOS, max 2.4A switching charge current, 92% efficiency
- Standard 4.20V, other voltages available via customization, supports LiFePO₄ batteries, customizable full-charge voltage range 3.5V ~ 4.4V
- Charge current adjustable via ISET pin
- NTC protection support
- Dual LED support
- LED1 constant current output (no series current-limiting resistor required)
- Low standby power consumption, BAT current < 2uA when VIN = 0
- Multiple protections for high reliability: input OVP/UVP, output overcharge protection, NTC battery temperature monitoring, 5-stage charging (JEITA compliant), chip over-temperature protection, ESD 4KV
