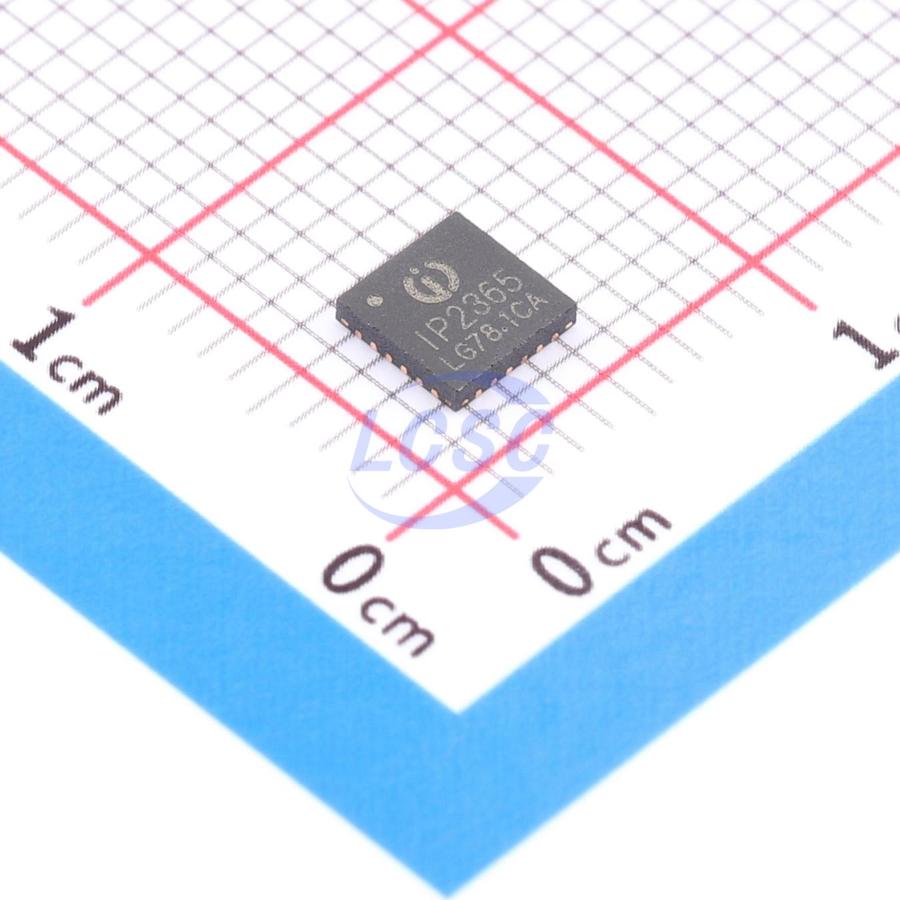

IP2365
I2C Lithium Battery 3A QFN-24-EP(4x4) Battery Management
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2365
- Store part #
- C2763591
- Package / case
- QFN-24-EP(4x4)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,969 in stock
#C2763591
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.35 | ₹102.35 |
| 10+ | ₹82.40 | ₹824.00 |
| 30+ | ₹72.42 | ₹2,172.60 |
| 100+ | ₹62.45 | ₹6,245.00 |
| 500+ | ₹57.46 | ₹28,730.00 |
| 1,000+ | ₹54.43 | ₹54,430.00 |
1 × ₹102.35
₹102.35
excl. GST
₹120.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IP2365
₹102.35 for 1 + GST
Specifications
- Interface
- I2C
- Quiescent Current
- 20uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 5V~26V
- The Chip Type
- Charging IC
- Charge Current - Max
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.117 g
Overview
IP2365 is a buck converter with integrated synchronous switch, supporting 1~4S lithium/li-ion battery buck charging management IC. Built-in power MOS, synchronous switch architecture, 400kHz switching frequency, 94% conversion efficiency (24V input, 16V/2A charging). Operating input voltage range: 4.5V to 26V. Supports intelligent input current regulation to prevent adapter overload. Supports external resistor adjustment of input UVLO voltage. Supports external resistor adjustment of charging current and charging voltage. Maximum battery charging current: 3A. Supports 1~4S lithium battery charging. NTC function supported — external NTC resistor enables charging NTC temperature protection. Soft-start function prevents inrush current at startup from affecting input power stability. Multiple protection features including input OVP, UVLO, output OCP, and short-circuit protection. QFN24 package.
Applications
- Lithium/Li-ion battery charging
- LiFePO₄ battery charging
Key features
- Integrated power MOS
- Operating input voltage range: 5V to 26V
- Supports 1–4 series Li-ion battery charging
- Supports external resistor-adjustable charge voltage, max output voltage 20V
- 3A maximum charge current
- Supports external resistor-adjustable charge current (input side and battery side)
- Supports NTC temperature protection during charging
- Supports external resistor-adjustable input UVLO voltage
- Supports LED charge status indication
- Output overcurrent and short-circuit protection
- Input overvoltage and undervoltage protection
- Over-temperature protection
- ESD 4kV
