INJOINICDatasheet (PDF)

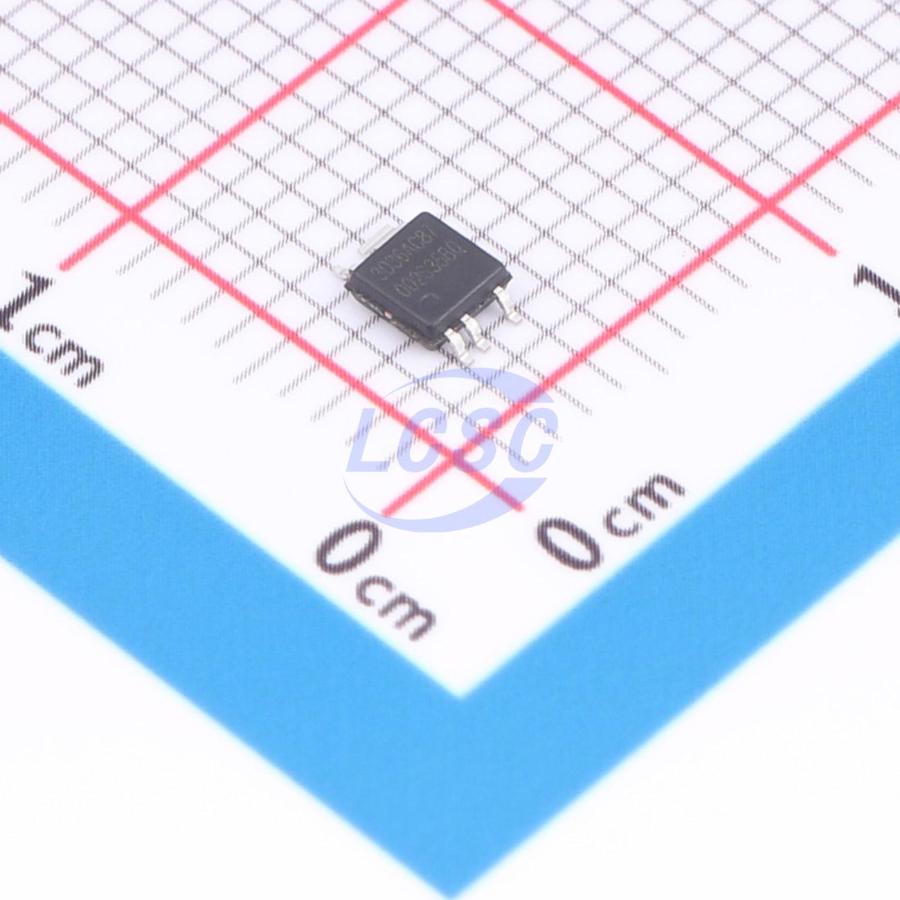

IP3036A
Lithium Battery CPC8-5 Battery Management
CPC8-5RoHSActive
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP3036A
- Store part #
- C42368101
- Package / case
- CPC8-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,800 in stock
#C42368101
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.78 | ₹57.80 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 1,000+ | ₹4.48 | ₹4,480.00 |
| 5,000+ | ₹4.29 | ₹21,450.00 |
| 12,000+ | ₹4.18 | ₹50,160.00 |
10 × ₹5.78
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
IP3036A
₹57.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3.6uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.051 g
Overview
A high-precision single-cell Li-ion/LiPo battery protection IC with integrated ultra-low on-resistance power MOSFETs, fully incorporating delay circuits and high-precision detection/protection circuits for overcharge voltage, overdischarge voltage, overdischarge current, overcharge current, and short circuit. Housed in an ultra-compact package, it provides an ideal solution for space-constrained battery packs.
Applications
- Single-cell Li-ion rechargeable battery pack
- Li-polymer rechargeable battery pack
Key features
- High-precision voltage detection protection
- Charge overcurrent protection
- Discharge overcurrent protection
- Short-circuit protection
- Battery reverse connection protection (without external load)
- Built-in ultra-low on-resistance MOSFET, RSS(ON)=16.5 mΩ (VDD=3.6V, ILOAD=1A)
- Ultra-compact package
- Over-temperature protection
- Charger detection function
- Allows charging of 0V batteries
- Built-in delay time
- Low power consumption: 3.6 μA typical in operating mode, 1.8 μA typical in shutdown mode
- RoHS compliant, lead-free
