IP5310

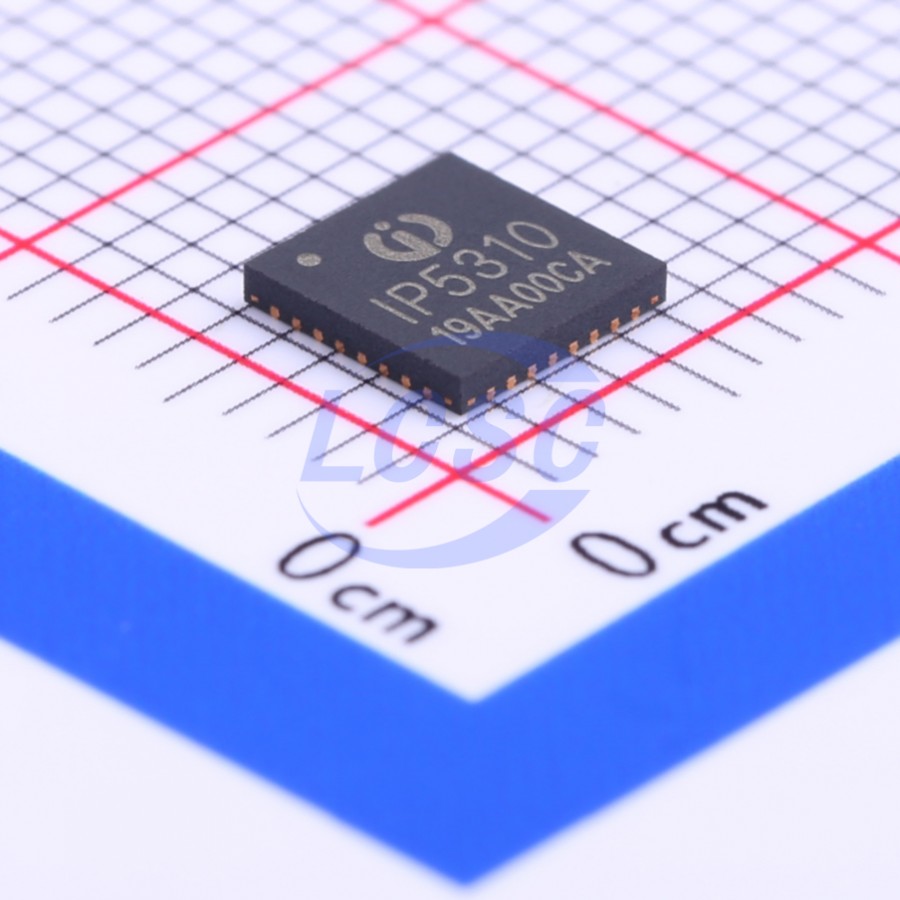

IP5310 is a multifunctional power management SOC integrating a boost converter, lithium battery charge management, battery fuel gauge, and TYPE_C protocol, providing a complete power solution for portable power banks. Its high integration and rich feature set require minimal external components, effectively reducing overall solution size and BOM cost. A single inductor supports both buck and boost functions. The DC-DC converter operates at 500KHz, compatible with low-cost inductors and capacitors. The synchronous boost system delivers a full 3.1A output current with conversion efficiency up to 92%. Automatically enters sleep mode under no-load conditions. Switching charging technology provides up to 3A charging current with charging efficiency up to 90%. Built-in IC temperature and input voltage sensing enables intelligent charging current regulation. Supports I2C interface for reading chip information (customized model IP5310_I2C), with customizable battery capacity curves for accurate battery level indication. Supports 1/2/3/4 LED battery level display and lighting functions. Housed in a QFN32 5*5mm package.

Applications

• Power banks / portable chargers
• Mobile phones, tablets, and other portable devices

Key features

• 3.1A synchronous boost conversion, 3A synchronous switch charging
• Boost efficiency up to 93%
• Charging efficiency up to 92%
• Built-in power path management, supports simultaneous charging and discharging
• Automatic charging current adjustment to match adapter output capability
• Supports Type-C port 3A, Micro-B port 2A charging
• Input BC1.2 charging detection, compatible with host USB charging
• Supports 4.20V, 4.30V, 4.35V, and 4.4V battery voltages
• Battery temperature NTC protection
• Supports 4 / 3 / 2 / 1 LED battery level display
• PIN-selectable battery level curve for more uniform indicator display
• Auto-detection of phone insertion and removal
• Integrated Type-C DRP protocol, supports single-port input/output
• Load high-current line compensation
• Integrated dual-channel smart phone charging current recognition DCP
• Intelligent load detection with automatic standby entry
• Integrated power MOSFETs, single-inductor charge/discharge implementation
• Output overcurrent, overvoltage, and short-circuit protection
• Input overvoltage, overcharge, over-discharge, and overcurrent discharge protection
• System overtemperature protection, battery temperature NTC protection
• ESD 4KV, transient withstand voltage 11V
• I2C interface for flexible, low-cost customization
