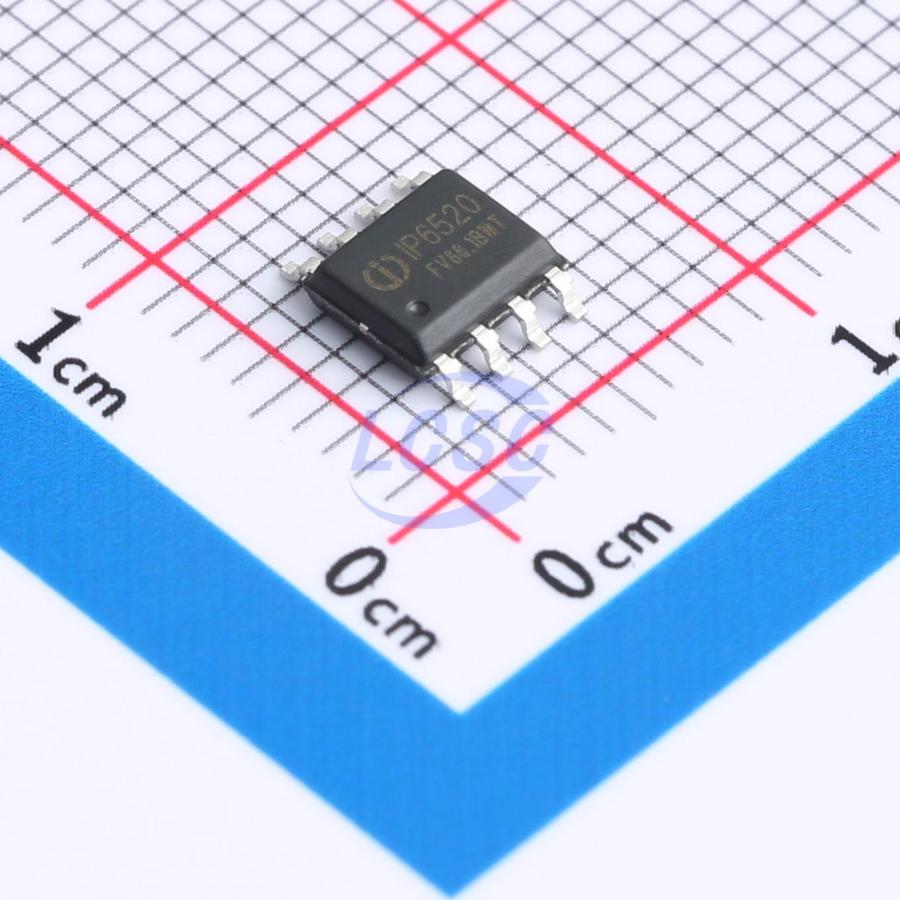

IP6520T_PPS
nan
Maximum 30W PD output, step-down SOC integrating fast-charging output protocols
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP6520T_PPS
- Store part #
- C7435405
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,623 in stock
#C7435405
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.54 | ₹58.54 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹40.99 | ₹1,229.70 |
| 100+ | ₹34.48 | ₹3,448.00 |
| 500+ | ₹30.80 | ₹15,400.00 |
| 1,000+ | ₹29.07 | ₹29,070.00 |
1 × ₹58.54
₹58.54
excl. GST
₹69.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP6520T_PPS
₹58.54 for 1 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
IP6520T is a synchronous buck converter with integrated switching, supporting multiple fast charging output standards, Type-C output, and USB PD2.0/PD3.0 (PPS) protocols, providing a complete solution for in-vehicle chargers, fast charging adapters, and smart power strips. The device integrates power MOSFETs with an input voltage range of 7.3V~32V and an output voltage range of 3V~12V, capable of delivering up to 30W of output power while automatically adjusting output voltage and current according to fast charging protocols. Typical output voltage and current ratings are: 5V@3A, 9V@2.22A, 12V@1.67A. The PD output features constant voltage/constant current modes: when the output current is below the preset value, it operates in constant voltage output mode with a stable output voltage; when the output current exceeds the preset value, it operates in constant current output mode, where the output voltage decreases as the output current increases. The output voltage incorporates a line compensation function, whereby the output voltage increases proportionally with the output current to compensate for voltage drops caused by cable impedance. Supporting Type-C output with integrated multiple fast charging protocols, the device automatically identifies the fast charging protocol supported by the connected device via CC1/CC2 or DP/DM, and automatically adjusts the output voltage and current accordingly. Multiple protection features are supported, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage, and short-circuit protection.
Applications
- On-board charger
- Fast-charge adapter
- Smart power strip
Key features
- Synchronous switching regulator
- Integrated power MOSFET
- Input voltage range: 7.3V~32V
- Output voltage range: 3V~12V, adjustable per fast charging protocol
- PD output power: up to 30W (5V@3A, 9V@3A, 12V@2.5A)
- Conversion efficiency up to 93.7% (VIN=24V, VOUT=5V@3A)
- Soft-start function
- Output voltage line compensation: 60mV@1A
- Type-C output and PD protocol support
- 5V, 9V, 12V output support
- PD2.0/PD3.0 (PPS) output protocol support
- PPS adjustable voltage: 3V~11V, 20mV step
- Type-C PD output support
- BC1.2 and Apple protocol support
- Qualcomm QC2.0, QC3.0, and QC3+ protocol support
- Huawei fast charging: FCP support
- Samsung fast charging: AFC support (up to 12V)
- Input OVP, input UVP, output short-circuit, output OCP
- System-level over-temperature protection
- DP/DM/CC OVP
- ESD 4KV, DC withstand voltage 40V
- Package: ESOP8
