HXY MOSFETDatasheet (PDF)

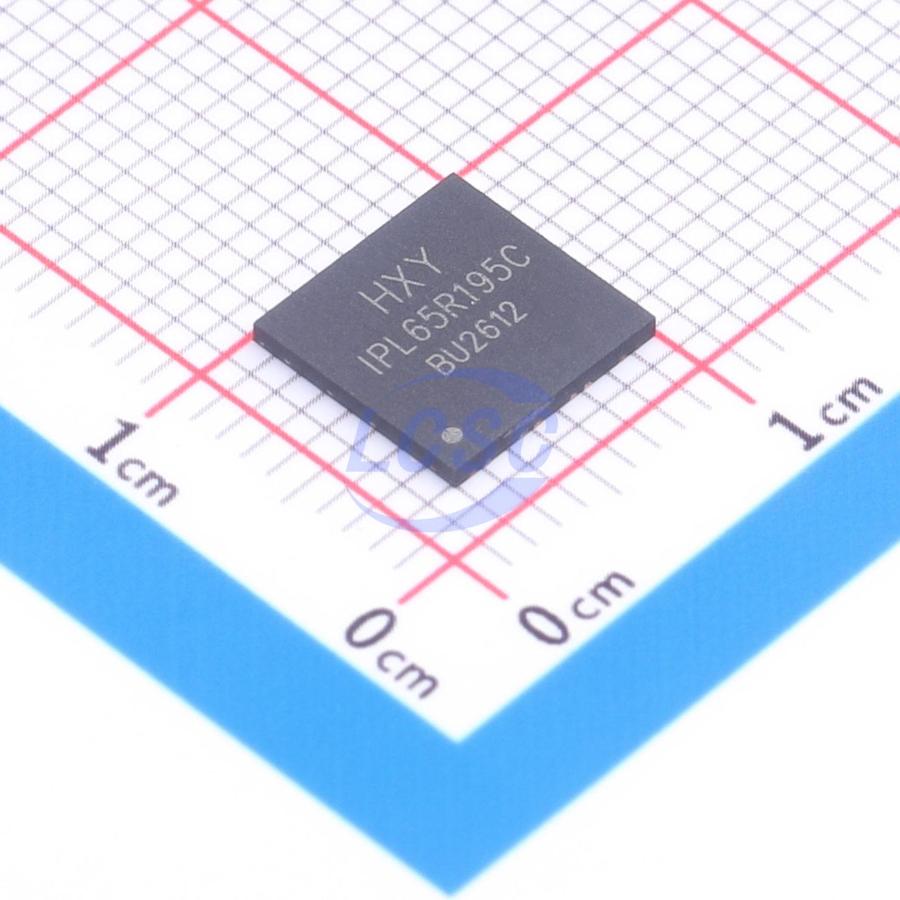

IPL65R195C7-HXY
650V 10A 75W 160mΩ 1 N-channel N-Channel DFN-8(8x8) Single FETs, MOSFETs RoHS
DFN-8(8x8)ROHS CompliantActive
GaN-on-Silicon Enhancement-mode Power Transistor
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPL65R195C7-HXY
- Store part #
- C48972077
- Package / case
- DFN-8(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
194 in stock
#C48972077
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹257.80 | ₹257.80 |
| 10+ | ₹218.56 | ₹2,185.60 |
| 30+ | ₹194.06 | ₹5,821.80 |
| 100+ | ₹166.95 | ₹16,695.00 |
| 500+ | ₹155.68 | ₹77,840.00 |
| 1,000+ | ₹150.69 | ₹1,50,690.00 |
1 × ₹257.80
₹257.80
excl. GST
₹304.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPL65R195C7-HXY
₹257.80 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 27pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 83pF
- Pd - Power Dissipation
- 75W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 0.4pF
- RDS(on)
- 160mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.3nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.229 g
Overview
Applications
- AC-DC converter
- DC-DC converter
- Totem-pole power factor correction
- Fast battery charging
- High-density power conversion
- High-efficiency power conversion
Key features
- Enhancement-mode transistor, normally-off power switch
- Ultra-high switching frequency
- Zero reverse recovery charge
- Low gate charge, low output charge
- JEDEC-compliant, suitable for industrial applications
- ESD protection
- RoHS, lead-free, and REACH compliant
