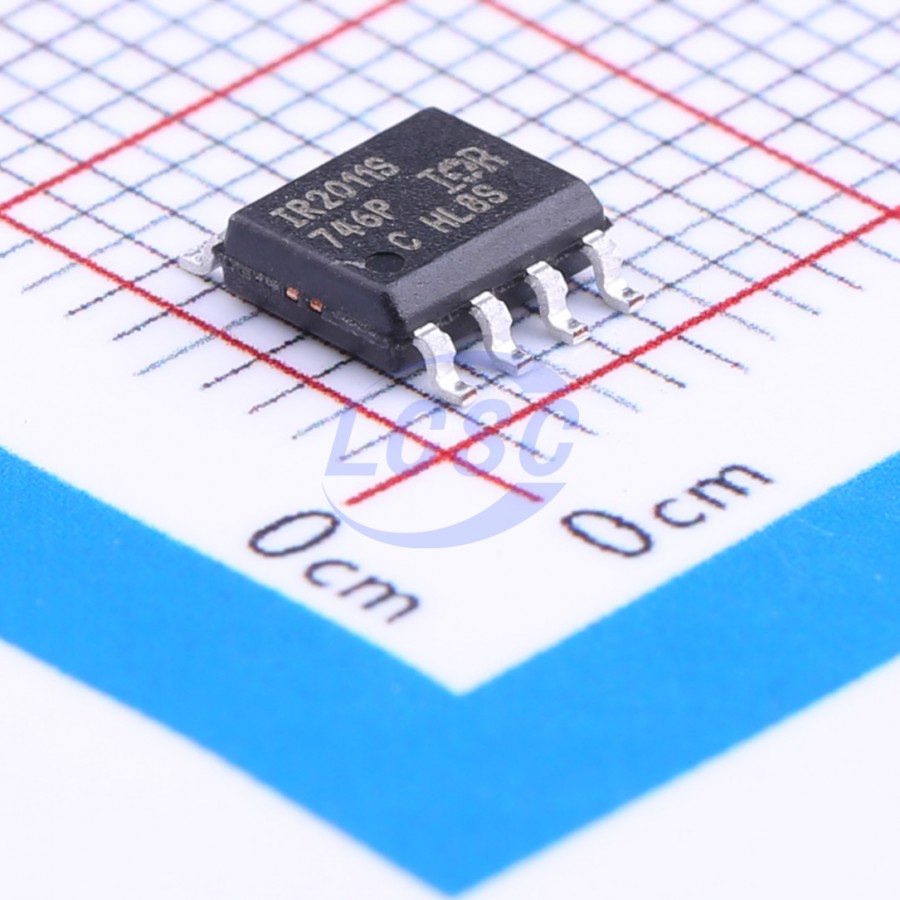

IR2011STRPBF
10V~20V 1A 1A SOIC-8 Gate Drivers RoHS
High and Low Side Driver
- Manufacturer
- Infineon
- Manufacturer part #
- IR2011STRPBF
- Store part #
- C148146
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,334 in stock
#C148146
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹191.84 | ₹191.84 |
| 10+ | ₹160.95 | ₹1,609.50 |
| 30+ | ₹143.97 | ₹4,319.10 |
| 100+ | ₹124.64 | ₹12,464.00 |
| 500+ | ₹96.82 | ₹48,410.00 |
| 1,000+ | ₹93.03 | ₹93,030.00 |
1 × ₹191.84
₹191.84
excl. GST
₹226.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2011STRPBF
₹191.84 for 1 + GST
Specifications
- Low Level Delay Time
- 80ns
- High Level Delay Time
- 75ns
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 1A
- Rise Time
- 35ns
- Fall Time
- 20ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.226 g
Overview
The IR2011 is a high power, high speed power MOSFET driver with independent high and low side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.0V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET in the high side configuration which operates up to 200 volts. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.
Applications
- Converters
- DC motor drive
Key features
- Floating channel designed for bootstrap operation
- Fully operational to 200V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 to 20V
- Independent low and high side channels
- Input logic HIN/LIN active high
- Undervoltage lockout for both channels
- 3.3V and 5V logic compatible
- CMOS Schmitt-triggered inputs with pull-down
- Matched propagation delay for both channels
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR2011SPBF#C537539Infineon · SOIC-8 | Infineon | SOIC-8 | 481 | ₹296.36 · 481 in stock | View |
 | EG2011#C48580019EG Micro · SOP-8 | EG Micro | SOP-8 | 2,330 | ₹12.98 · 2,330 in stock | View |
 | NSG2024#C41414483WXNSIC · SOP-8 | WXNSIC | SOP-8 | 3,362 | ₹49.94 · 3,362 in stock | View |
 | NSG2027#C41414484WXNSIC · SOP-8 | WXNSIC | SOP-8 | 9 | ₹45.78 · 9 in stock | View |
 | SDH21263TR#C7466375JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 11,595 | ₹20.50 · 11,595 in stock | View |
