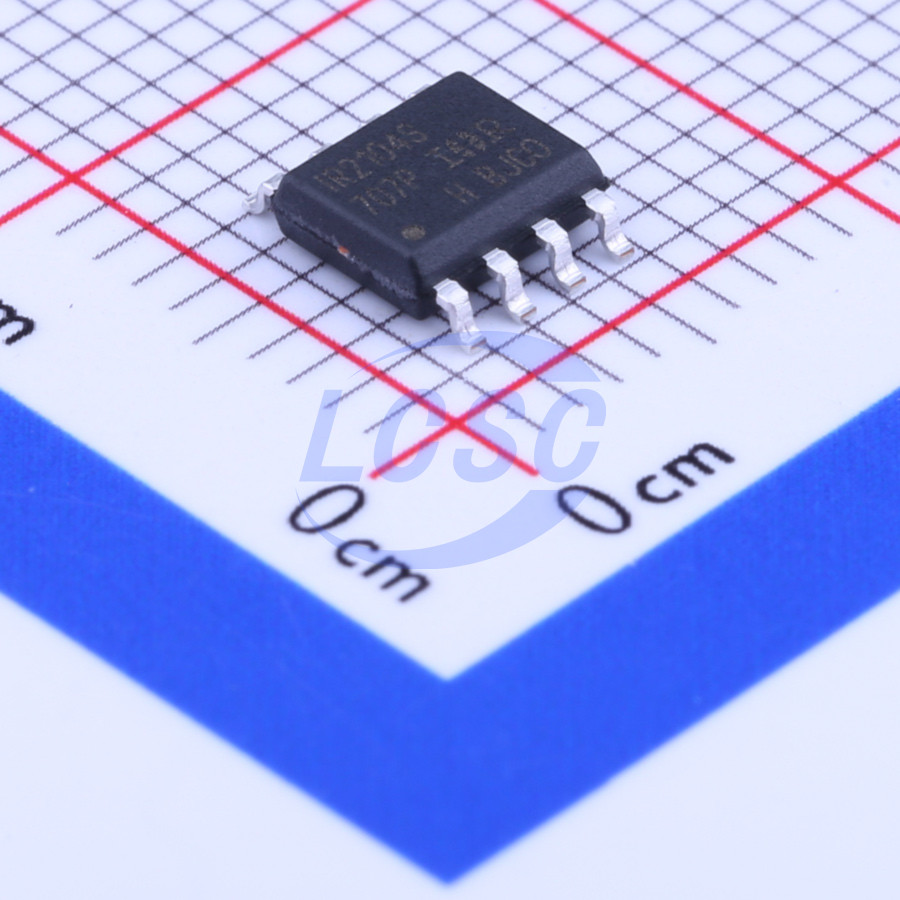

IR2104STRPBF
10V~20V 270mA 130mA SOIC-8 Gate Drivers RoHS
HALF-BRIDGE DRIVER
- Manufacturer
- Infineon
- Manufacturer part #
- IR2104STRPBF
- Store part #
- C2960
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40,773 in stock
#C2960
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.56 | ₹128.56 |
| 10+ | ₹115.38 | ₹1,153.80 |
| 30+ | ₹102.92 | ₹3,087.60 |
| 100+ | ₹93.71 | ₹9,371.00 |
| 500+ | ₹77.83 | ₹38,915.00 |
| 1,000+ | ₹75.83 | ₹75,830.00 |
1 × ₹128.56
₹128.56
excl. GST
₹151.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2104STRPBF
₹128.56 for 1 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 270mA
- Rise Time
- 100ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 130mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.376 g
Overview
The IR2104(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates from 10 to 600 volts.
Key features
- Floating channel designed for bootstrap operation, fully operational to +600V, tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 to 20V
- Undervoltage lockout
- 3.3V, 5V and 15V input logic compatible
- Cross-conduction prevention logic
- Internally set deadtime
- High side output in phase with input
- Shut down input turns off both channels
- Matched propagation delay for both channels
- Also available LEAD-FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR2103STRPBF#C2957Infineon · SOIC-8 | Infineon | SOIC-8 | 20,000 | ₹73.49 · 20,000 in stock | View |
 | IR25602STRPBF#C537635Infineon · SOIC-8 | Infineon | SOIC-8 | 2,458 | ₹115.82 · 2,458 in stock | View |
 | IR2102STRPBF#C152687Infineon · SOIC-8 | Infineon | SOIC-8 | 273 | ₹174.35 · 273 in stock | View |
 | IR2101STRPBF#C2956Infineon · SOIC-8 | Infineon | SOIC-8 | 13,988 | ₹71.84 · 13,988 in stock | View |
 | U2104M#C2932196UNI-SEMIC · SOP-8 | UNI-SEMIC | SOP-8 | 7,770 | ₹31.75 · 7,770 in stock | View |
