JSMSEMIDatasheet (PDF)

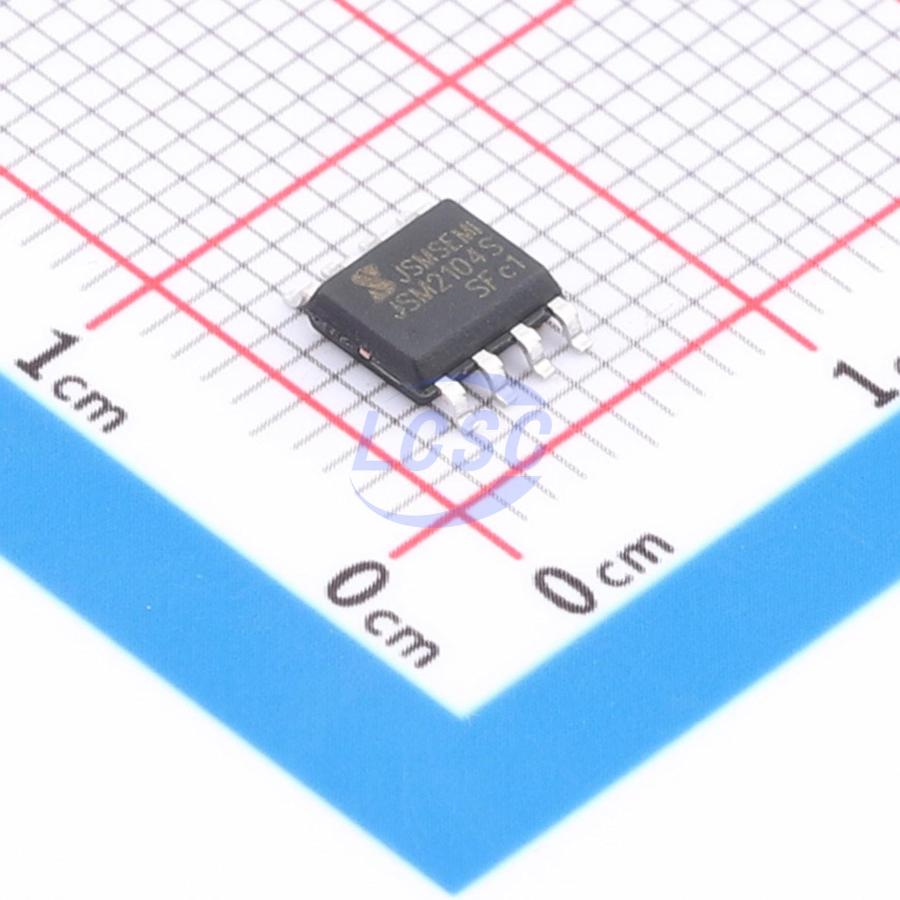

IR2104STRPBF-JSM
10V~20V 600mA 300mA SOIC-8 Gate Drivers RoHS
SOIC-8ROHS CompliantActive
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR2104STRPBF-JSM
- Store part #
- C5804631
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,920 in stock
#C5804631
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.42 | ₹252.10 |
| 50+ | ₹39.11 | ₹1,955.50 |
| 150+ | ₹34.27 | ₹5,140.50 |
| 500+ | ₹28.84 | ₹14,420.00 |
| 2,500+ | ₹26.14 | ₹65,350.00 |
| 4,000+ | ₹24.53 | ₹98,120.00 |
5 × ₹50.42
₹252.10
excl. GST
₹297.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR2104STRPBF-JSM
₹252.10 for 5 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS2106STRPBF-JSM#C18194980JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 441 | ₹69.44 · 441 in stock | View |
 | JSM2101STR#C19077368JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,280 | ₹34.33 · 4,280 in stock | View |
 | JSM2104STR#C19077369JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 5,100 | ₹43.67 · 5,100 in stock | View |
 | IRS2807DSTRPBF-JSM#C41421796JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 492 | ₹77.09 · 492 in stock | View |
 | JSM2103SSTR#C44606222JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 10 | ₹50.49 · 10 in stock | View |
