IR2127STRPBF-JSM

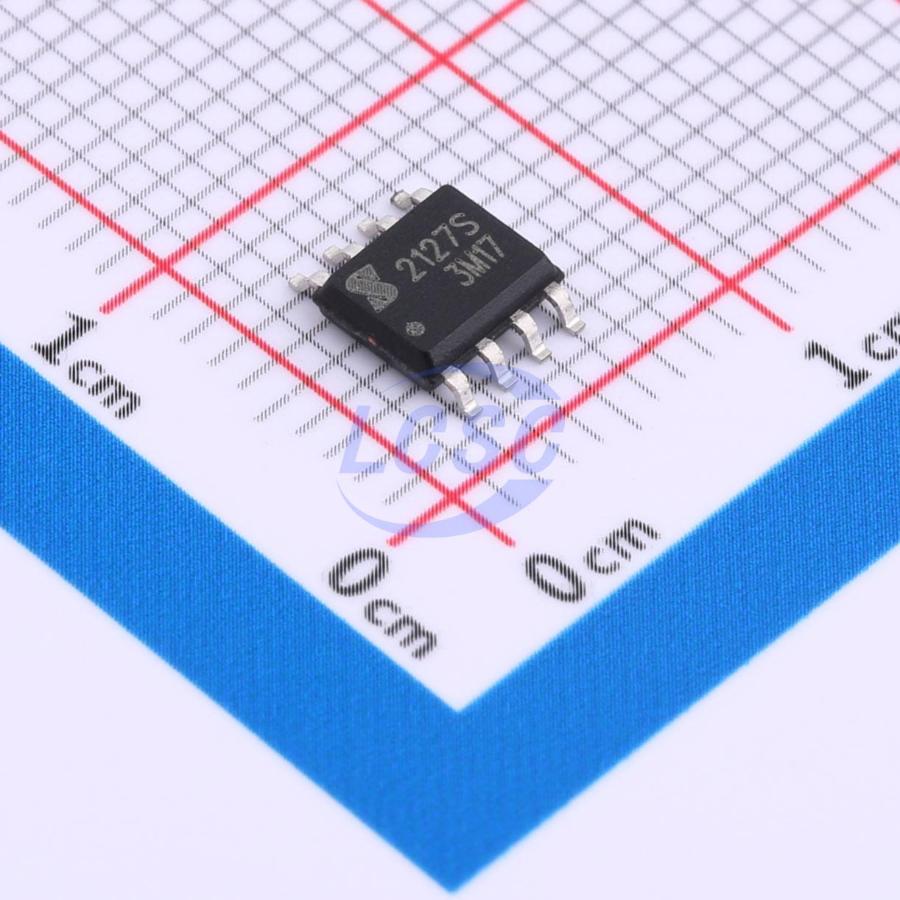

High Side Gate Driver IC MOSFET IGBT SOP-8
300V single-channel high-side gate driver chip with overcurrent detection
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR2127STRPBF-JSM
- Store part #
- C7432818
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,822 in stock
#C7432818
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.04 | ₹150.04 |
| 10+ | ₹122.84 | ₹1,228.40 |
| 30+ | ₹107.94 | ₹3,238.20 |
| 100+ | ₹91.12 | ₹9,112.00 |
| 500+ | ₹90.47 | ₹45,235.00 |
| 1,000+ | ₹87.00 | ₹87,000.00 |
1 × ₹150.04
₹150.04
excl. GST
₹177.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR2127STRPBF-JSM
₹150.04 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 80ns
- Fall Time
- 40ns
- Features
- Overcurrent Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
The IR2127S is a high-voltage, high-speed single-channel high-side MOSFET/IGBT gate driver IC with integrated overcurrent detection. Fabricated using a high-voltage compatible process, it achieves single-chip integration of the high-side gate drive circuit. The logic input levels are compatible with CMOS or LSTTL outputs down to 3.3V. The IC features a built-in high-side overcurrent protection circuit that shuts down the output upon detecting an overcurrent condition and asserts a fault signal through an open-drain FAULT pin. The floating channel is capable of driving high-side N-channel power MOSFETs, with a maximum operating voltage of 250V on the floating ground channel. The IR2127S comes in an SOIC8 package with an operating temperature range of -40℃ to 125℃.
Applications
- Motor control and drive
- Robotics
- Electric vehicles
- Fast charging
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -5V
- Input-to-output in-phase
- Gate drive voltage range from 12V to 20V
- Integrated UVLO with undervoltage threshold of 9V/10.3V
- Propagation delay: turn-on/turn-off delay Ton/Toff = 150ns/150ns
- Wide temperature range: -40℃~125℃
- Fault pin fault output
- RoHS compliant
