IRS2008STRPBF-JSM

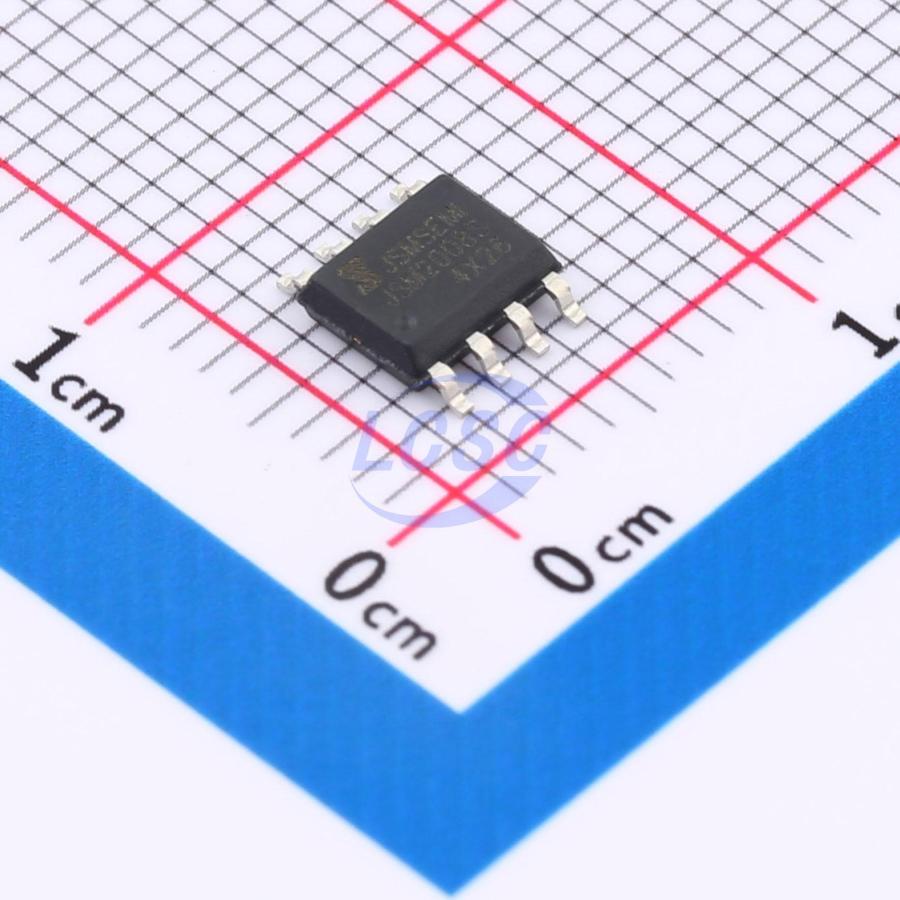

Half-Bridge Gate Driver IC MOSFET SOP-8
250V integrated bootstrap half-bridge driver chip with SD function
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRS2008STRPBF-JSM
- Store part #
- C18194972
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,498 in stock
#C18194972
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.58 | ₹146.58 |
| 10+ | ₹120.34 | ₹1,203.40 |
| 30+ | ₹105.81 | ₹3,174.30 |
| 100+ | ₹89.55 | ₹8,955.00 |
| 500+ | ₹82.40 | ₹41,200.00 |
| 1,000+ | ₹79.14 | ₹79,140.00 |
1 × ₹146.58
₹146.58
excl. GST
₹172.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2008STRPBF-JSM
₹146.58 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
IRS2008S is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. The high-voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 250V. Housed in an SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioner/washing machine
- General-purpose inverter
- Uninterruptible power supply (UPS)
- Inverter drive
Key features
- Floating channel designed for bootstrap operation
- Maximum operating voltage up to +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 650ns/130ns
- Delay matching time 50ns
- Shoot-through prevention protection
- Dead time 520ns
- Wide temperature range -40℃ to 125℃
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
