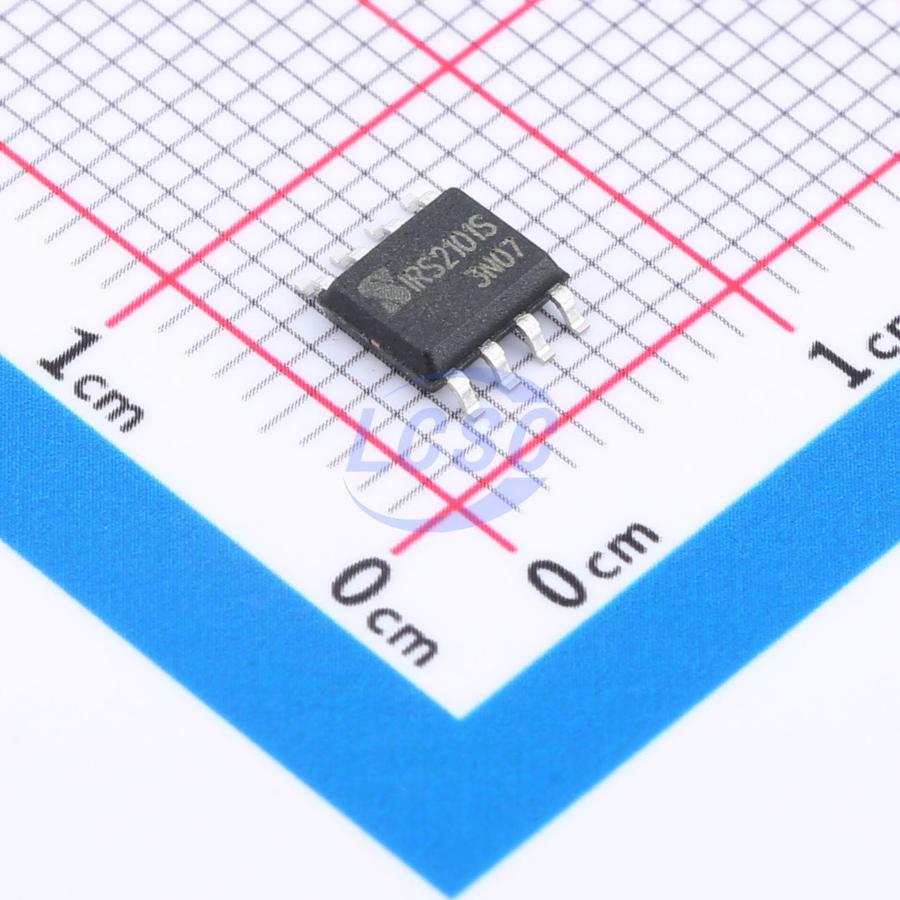

IRS2101STRPBF-JSM
Low Side High Side Gate Driver IC MOSFET SOP-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRS2101STRPBF-JSM
- Store part #
- C5804626
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,911 in stock
#C5804626
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.19 | ₹59.19 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹40.55 | ₹1,216.50 |
| 100+ | ₹33.39 | ₹3,339.00 |
| 500+ | ₹31.88 | ₹15,940.00 |
| 1,000+ | ₹29.93 | ₹29,930.00 |
1 × ₹59.19
₹59.19
excl. GST
₹69.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRS2101STRPBF-JSM
₹59.19 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Built-in bootstrap diode
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The IRS2101S is a high-voltage, high-speed power MOSFET high- and low-side driver IC, featuring independent high-side and low-side referenced output channels. The IRS2101S utilizes a high-voltage compatible process to integrate both high- and low-side gate drive circuits on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. Its floating channel is designed to drive high-side N-channel power MOSFETs, with a maximum floating supply offset voltage of 700V. The IRS2101S is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive threshold 8.9V
- UVLO negative threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
