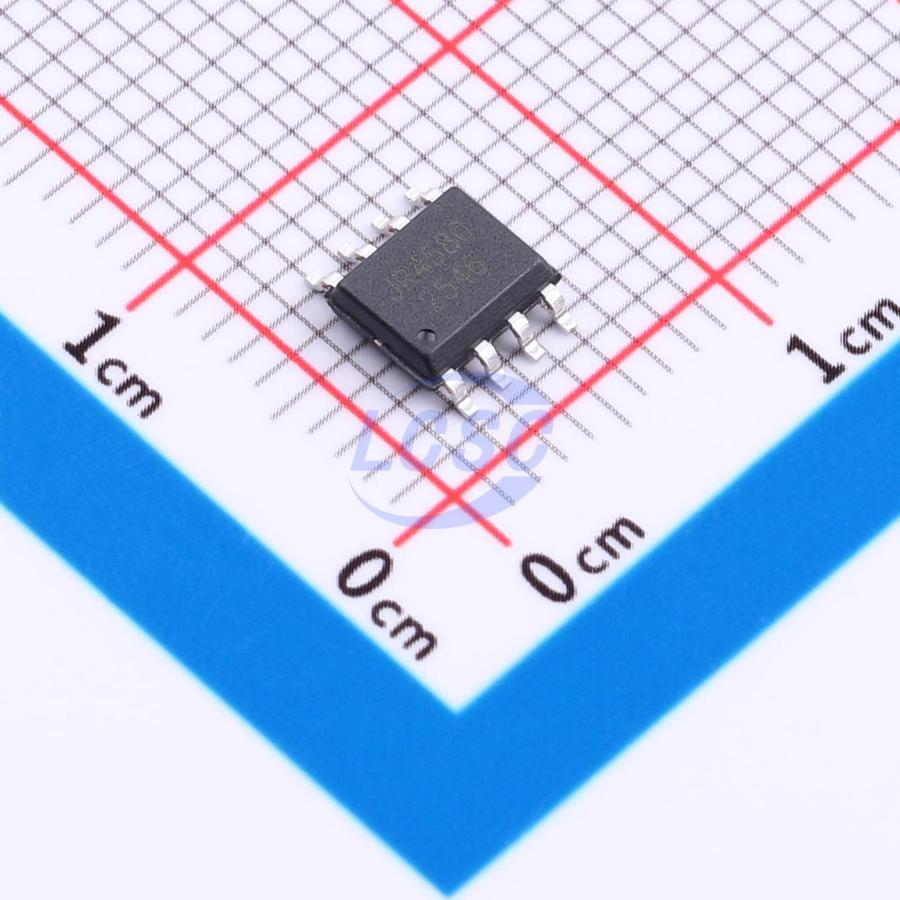

JR4580-SOP-8
120mA 2 300uV 5V/us 500nA 100dB 6mA 10MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- JR4580-SOP-8
- Store part #
- C53199144
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C53199144
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.32 | ₹51.60 |
| 50+ | ₹8.12 | ₹406.00 |
| 150+ | ₹7.01 | ₹1,051.50 |
| 500+ | ₹6.19 | ₹3,095.00 |
| 2,500+ | ₹5.53 | ₹13,825.00 |
| 4,000+ | ₹5.20 | ₹20,800.00 |
5 × ₹10.32
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JR4580-SOP-8
₹51.60 for 5 + GST
Specifications
- Output Current
- 120mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 10MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
The JR4580 is a dual op-amp designed and optimized for tone control, particularly suited for audio applications. The device features low noise, high gain-bandwidth, high output current, and low distortion. It is ideal for acoustic electronic components such as audio preamplifiers and active filters, as well as industrial measurement instruments and headphone amplifiers requiring high output current. The JR4580 is available in SOP8 and DIP8 packages.
Applications
- Active filters
- Compensation amplifiers
- Audio preamplifiers
- Headphone amplifiers
- Low-voltage handheld electronic instruments
Key features
- Low input noise voltage
- Low distortion: approx. 0.0005%
- Integrated internal ESD protection
- Slew rate: 5V/μs
- Unity-gain bandwidth: 10MHz
