TDSEMICDatasheet (PDF)

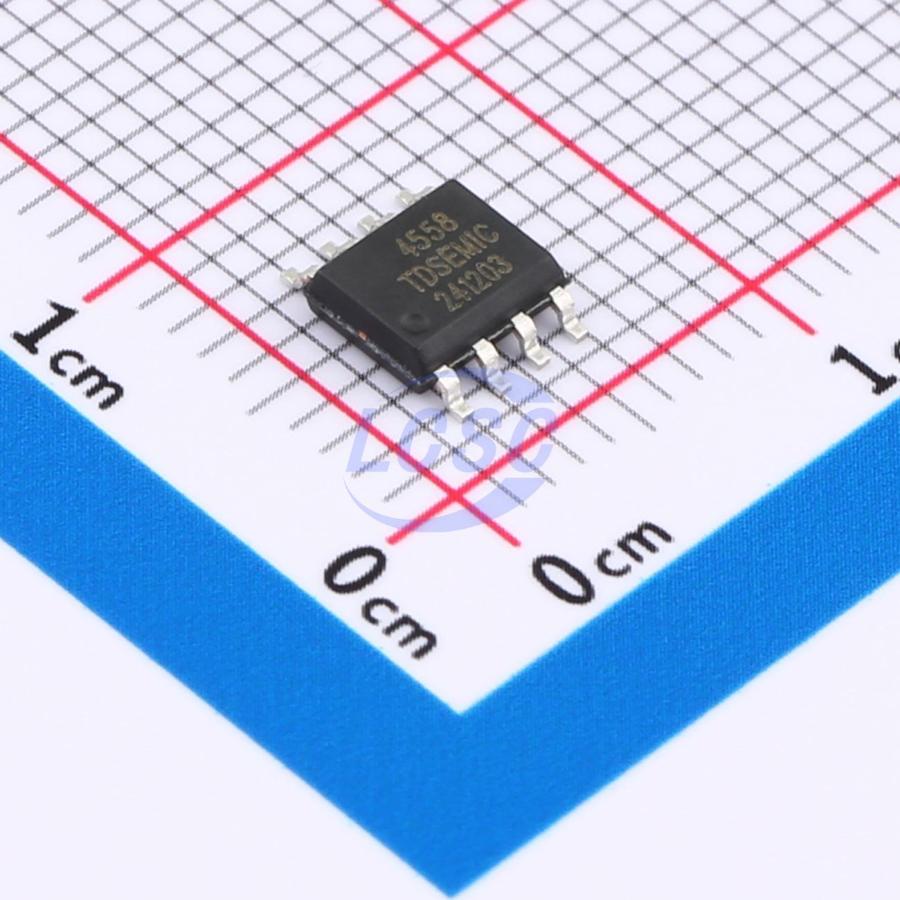

JRC4558-TD
2 5mV 50nA 80dB 500uA 1.2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Dual low-power differential operational amplifier
- Manufacturer
- TDSEMIC
- Manufacturer part #
- JRC4558-TD
- Store part #
- C42421915
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C42421915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.28 | ₹52.80 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 1,000+ | ₹3.23 | ₹3,230.00 |
| 5,000+ | ₹2.90 | ₹14,500.00 |
| 10,000+ | ₹2.74 | ₹27,400.00 |
10 × ₹5.28
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JRC4558-TD
₹52.80 for 10 + GST
Specifications
- output type
- Single-Ended
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Power Supply Rejection Ratio (PSRR)
- 90dB
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation;Current limiting / short-circuit protection
- Dual Supply
- -15V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.181 g
Overview
The JRC4558 is a dual low-power differential operational amplifier capable of operating from either single or dual power supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in audio amplification circuits and conventional op-amp circuit applications.
Applications
- Sensor signal amplifiers
- DC gain
- Audio amplifiers
- Other applications
Key features
- Internal frequency compensation
- Single supply voltage range: 3V～30V
- Short-circuit protection
- Dual supply voltage range: ±15V
- Low power consumption: typical 500uA@VCC=5V
- Unity-gain bandwidth: up to 1.2MHz
- Package: DIP-8, SOP-8, MSOP-8
