GREENMICRODatasheet (PDF)

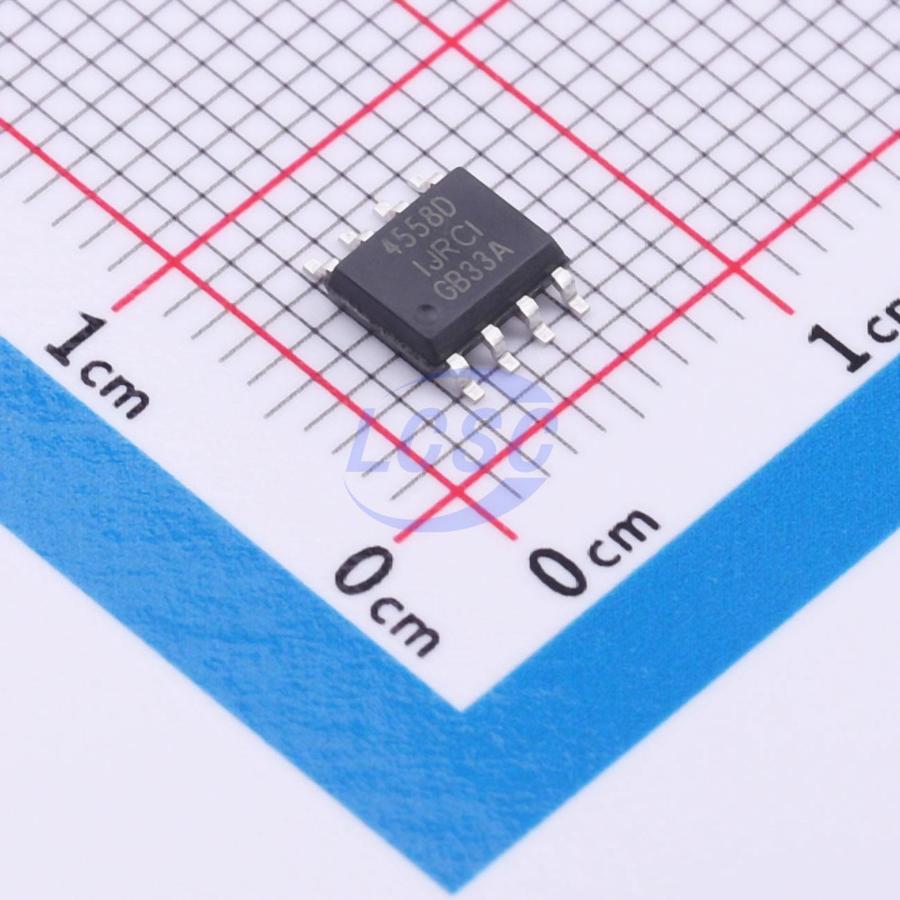

JRC4558D233
20mA 2 2mV 1.5V/us 30nA 90dB 3.5mA 1MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- JRC4558D233
- Store part #
- C51026317
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,160 in stock
#C51026317
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.75 | ₹95.00 |
| 200+ | ₹3.70 | ₹740.00 |
| 600+ | ₹3.12 | ₹1,872.00 |
| 2,500+ | ₹2.78 | ₹6,950.00 |
| 10,000+ | ₹2.47 | ₹24,700.00 |
| 20,000+ | ₹2.32 | ₹46,400.00 |
20 × ₹4.75
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JRC4558D233
₹95.00 for 20 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 1.5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 30nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7.5uV/℃
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 1MHz
- Dual Supply
- -16V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.204 g
Overview
The 4558 contains two independent, high-gain, internally frequency-compensated dual op-amps, suitable for single-supply applications across a wide supply voltage range, with dual-supply operation also supported. Under recommended operating conditions, the supply current is independent of the supply voltage. The device is available in DIP8 and SOP8 packages.
Applications
- Sense amplifier
- DC gain block
- Single-supply op-amp applications
Key features
- Unity-gain internal frequency compensation
- Internal frequency compensation
- High DC voltage gain (approximately 100dB)
- Unity-gain bandwidth (approximately 1MHz)
- Low input bias current
- Low input offset voltage and offset current
- Wide common-mode input voltage range, including ground
- Wide differential input voltage range equal to supply voltage range
- Large output voltage swing (0V to Vcc-1.5V)
