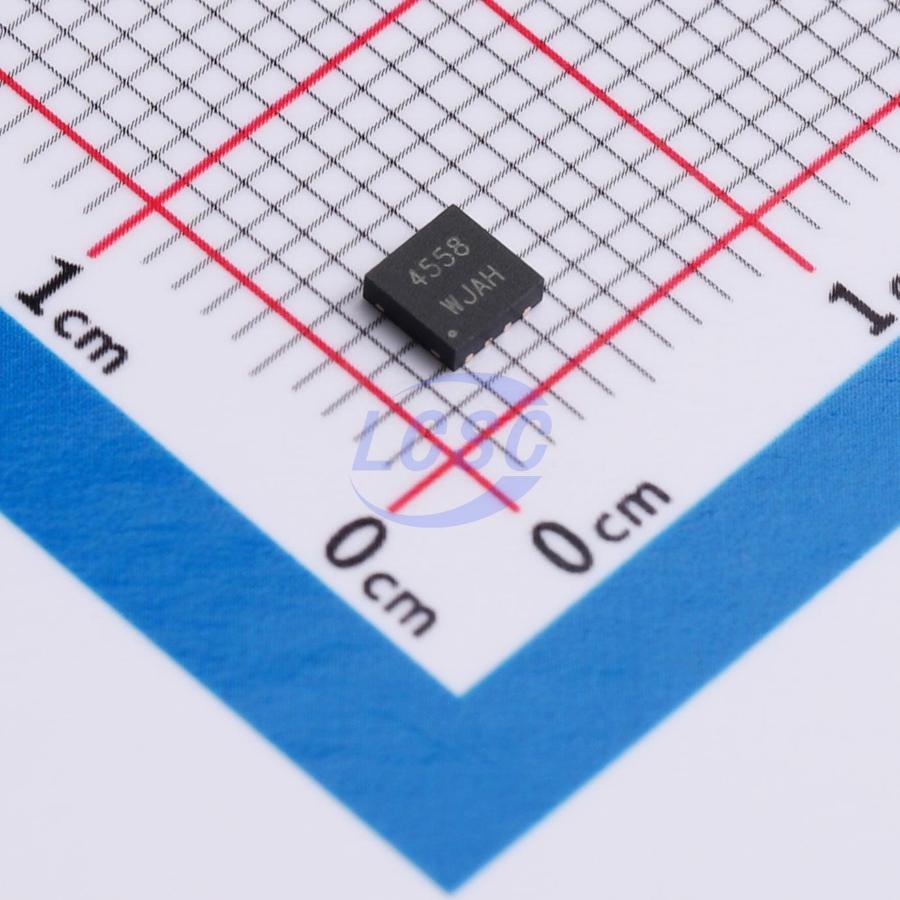

HGSEMI

JRC4558DQ3/TR

500uA 1.2MHz 2 5mV 80dB 50nA DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: JRC4558DQ3/TR
Store part #: C52160368
Package / case: DFN-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,940 in stock

#C52160368

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.99	₹59.95
50+	₹9.53	₹476.50
150+	₹8.30	₹1,245.00
500+	₹7.37	₹3,685.00
2,500+	₹6.63	₹16,575.00
5,000+	₹6.26	₹31,300.00

Quantity (min 5, multiples of 5)

5 × ₹11.99

₹59.95

excl. GST

₹70.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

JRC4558DQ3/TR

₹59.95 for 5 + GST

Specifications

Quiescent Current: 500uA
Gain Bandwidth Product: 1.2MHz
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 10nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 50nA
Dual Supply: -15V~-2.25V;2.25V~15V
Single Supply: 4.5V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g
