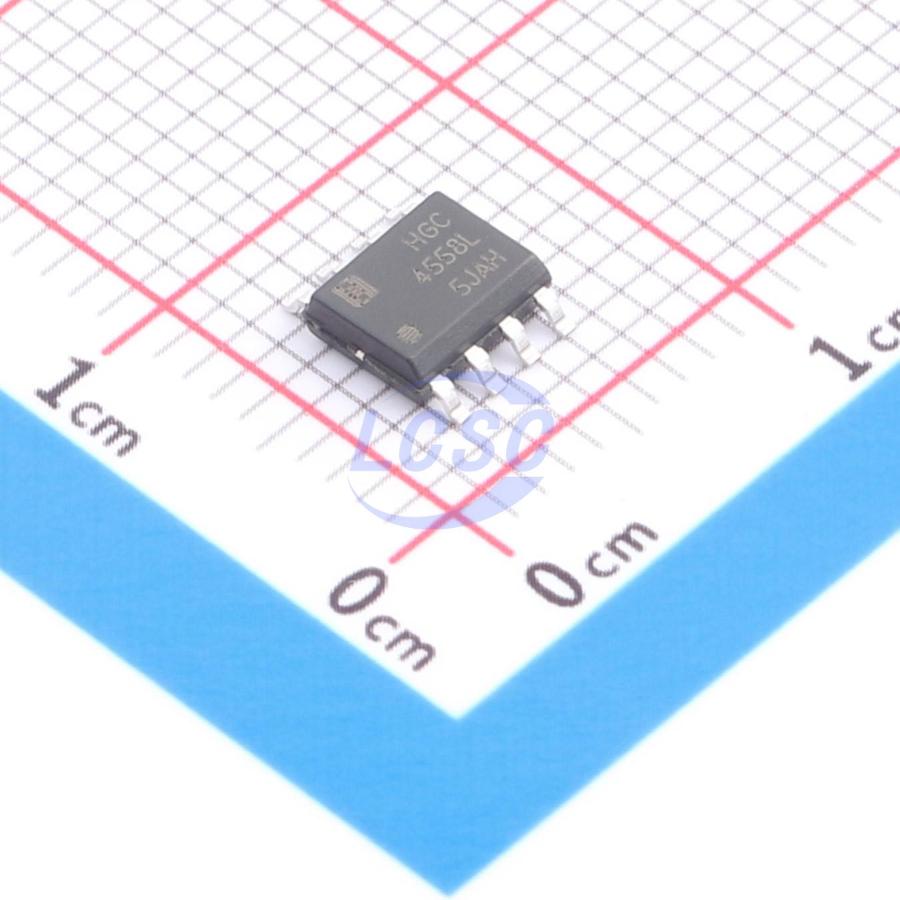

HANSCHIP semiconductorDatasheet (PDF)
JRC4558LDRG4
60mA 2 2mV 1.7V/us 90dB 50nA 3mA 3.5MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- JRC4558LDRG4
- Store part #
- C51292183
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,620 in stock
#C51292183
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.78 | ₹95.60 |
| 200+ | ₹3.80 | ₹760.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 4,000+ | ₹2.94 | ₹11,760.00 |
| 8,000+ | ₹2.65 | ₹21,200.00 |
| 20,000+ | ₹2.50 | ₹50,000.00 |
20 × ₹4.78
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JRC4558LDRG4
₹95.60 for 20 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 1.7V/us
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 50nA
- Quiescent Current
- 3mA
- Gain Bandwidth Product
- 3.5MHz
- Dual Supply
- -18V~-2.5V;2.5V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.147 g
Overview
The JRC4558L is a dual general-purpose operational amplifier. Its wide common-mode input voltage range and latch-up-free characteristics make it ideal for voltage follower applications. The device features short-circuit protection, and internal frequency compensation ensures stable operation without external components.
Applications
- Active filters
- Compensation amplifiers
- Audio preamplifiers
- Electronic instrumentation
Key features
- Internal frequency compensation
- Continuous short-circuit protection
- Wide common-mode voltage range
- Wide differential voltage range
- High DC voltage gain (approx. 100 dB)
- Unity-gain bandwidth (approx. 3.5 MHz)
- Low input bias
- Low input offset voltage and current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NJM4558LDRG4#C51292182HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 4,920 | ₹5.08 · 4,920 in stock | View | |
 | HX8632IDRG#C2977118HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 4,530 | ₹19.86 · 4,530 in stock | View |
 | JRC4560DRG#C41378789HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 4,525 | ₹15.85 · 4,525 in stock | View |
| NJM4560DRG#C41378787HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,445 | ₹15.20 · 2,445 in stock | View | |
 | NJM4580DRG#C41378791HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 230 | ₹10.19 · 230 in stock | View |
