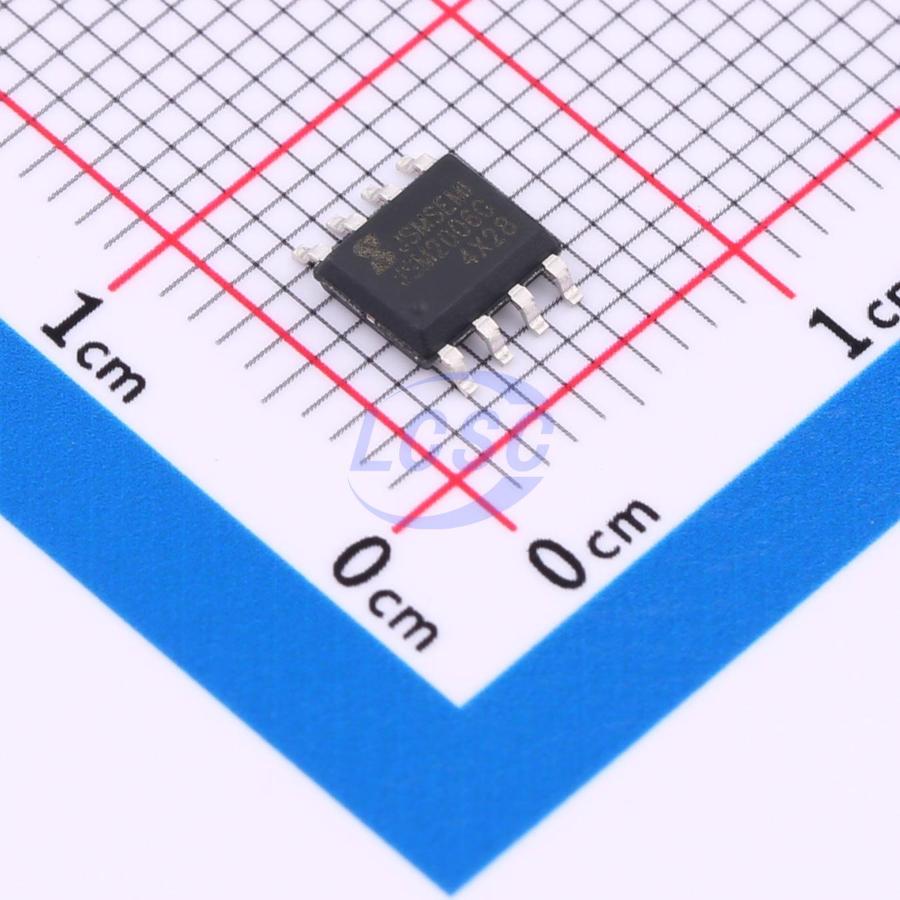

JSM2006G
10V~20V MOSFET 600mA 1A SOP-8 Motor Drivers, Controllers RoHS
650V single-phase high-side and low-side in-phase motor driver chip with built-in bootstrap
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM2006G
- Store part #
- C33960117
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,185 in stock
#C33960117
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.71 | ₹98.55 |
| 50+ | ₹15.33 | ₹766.50 |
| 150+ | ₹13.47 | ₹2,020.50 |
| 500+ | ₹11.13 | ₹5,565.00 |
| 2,500+ | ₹10.78 | ₹26,950.00 |
| 4,000+ | ₹10.15 | ₹40,600.00 |
5 × ₹19.71
₹98.55
excl. GST
₹116.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM2006G
₹98.55 for 5 + GST
Specifications
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Driven Configuration
- High Side;Low Side
- Number of Channels
- 2
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Load Type
- MOSFET
- Current - Output High(IOH)
- 600mA
- Current - Output Low(IOL)
- 1A
- Supply Current (Iq)
- 60uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
The JSM2006G is a high voltage, high speed power MOSFET drivers with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross- conduction. The floating channel can be used to drive an N- channel power MOSFET in the high- side configuration which operates up to 650 V.
Applications
- Motor Control
- Air Conditioners/Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +650 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V / ns
- Allowable negative Vs capability: - 9V
- Undervoltage lockout for both channels
- VCC UVLO threshold 8.7V/7.7V
- VBS UVLO threshold 8.2V/7.3V
- Propagation delay
- Ton/Toff = 250ns/150ns
- Matching delay time 50ns
- Cross- conduction prevention logic
- Deadtime 130ns
- Wide operating temperature range - 40°C ~ 125°C
- Typically output Source/Sink current capability: 0.6A/1A
- RoSH compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SDH21263TR#C7466375JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 11,595 | ₹24.66 · 11,595 in stock | View |
