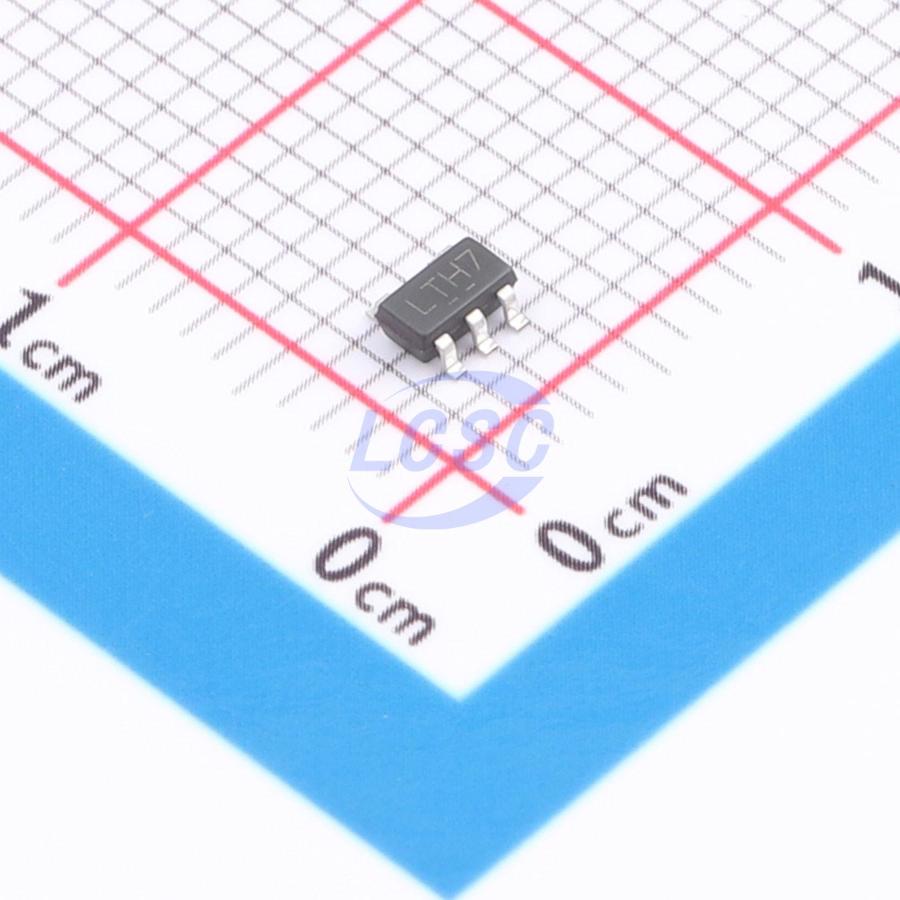

JSM4054R
Battery Charging IC Lithium Battery SOT-23-5L
Cradle charger management IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM4054R
- Store part #
- C2980735
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C2980735
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.30 | ₹73.00 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.38 | ₹13,140.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.70 | ₹33,300.00 |
10 × ₹7.30
₹73.00
excl. GST
₹86.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM4054R
₹73.00 for 10 + GST
Specifications
- Operating Temperature
- -65℃~+125℃
- Quiescent Current
- 70uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 535mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
JSM4054R is a constant-current/constant-voltage cradle charger IC, primarily designed for single-cell lithium battery charging. No external sense resistor is required, and its internal MOSFET structure eliminates the need for an external reverse diode. At high power levels and elevated ambient temperatures, the JSM4054R automatically adjusts the charging current to limit the die temperature. The charge voltage is fixed at 4.2V, and the charge current is programmable via a single external resistor. When the float voltage is reached and the charge current drops to 1/10 of the programmed value, the JSM4054R automatically terminates the charging process. When the input voltage is removed, the JSM4054R automatically enters a low-current mode, drawing less than 2µA from the battery. In standby mode, the supply current is less than 25µA. The JSM4054R also monitors charge current, features voltage detection and automatic recharge, and provides a status pin indicating charge termination and input voltage status.
Applications
- Mobile phones
- PDAs
- MP3 players
- Bluetooth headsets
Key features
- Programmable charge current up to 500mA
- No external MOSFET, sense resistor, or reverse diode required
- Constant current/constant voltage operation with thermal protection
- Li-ion battery charging via USB port
- Preset charge voltage with 1% accuracy
- 20uA standby current
- 2.9V trickle charge voltage
- Soft-start limits inrush current
- SOT23-5 package
