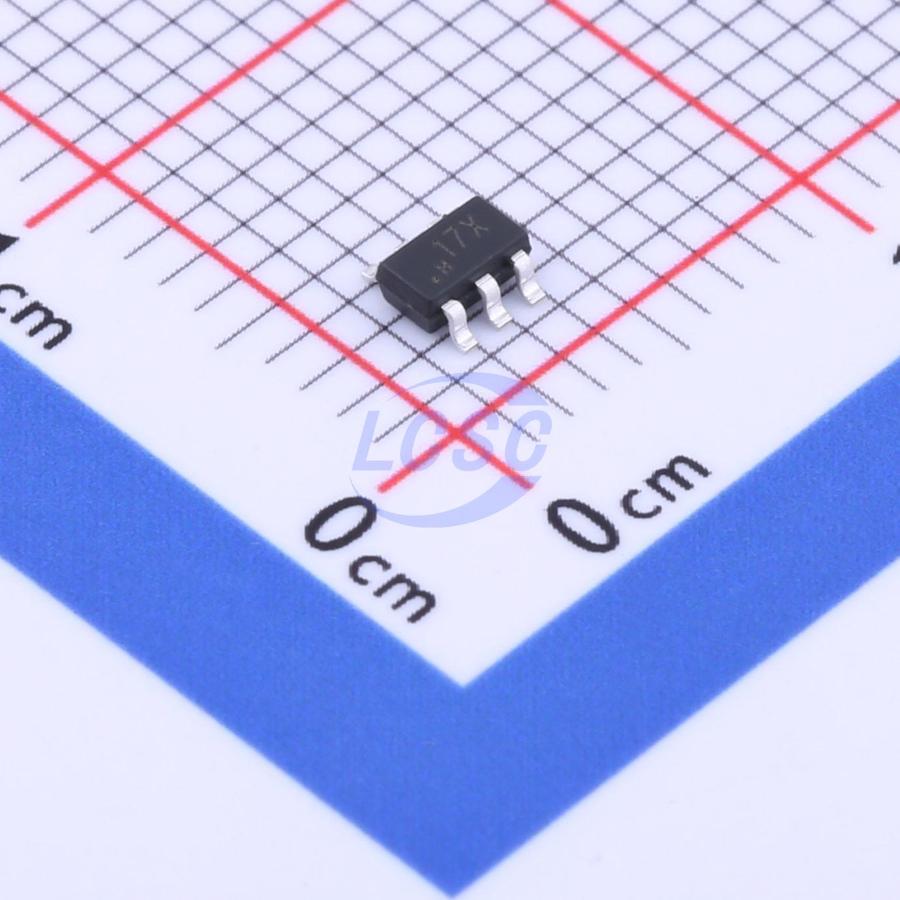

JSM4057
Battery Charging IC Lithium Battery SOT-23-6L
Single-cell lithium-ion battery charging IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM4057
- Store part #
- C963399
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,960 in stock
#C963399
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.90 | ₹1,170.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM4057
₹57.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
JSM4057 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuit makes it ideal for portable device applications, compatible with USB power supply and adapter power supply. An internal reverse-charge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit the die temperature during high-power operation or high ambient temperature conditions. The JSM4057 features a charge termination voltage of 4.2V, with charge current programmable via an external resistor. When the charge current drops to 1/10 of the programmed value, the TP4057 automatically terminates the charging process. When the input voltage is removed, the JSM4057 automatically enters a low-current standby state, reducing the standby current to 3uA.
Applications
- Mobile phones
- PDA
- MP3/MP4
- Bluetooth headsets
- GPS charging docks
- Digital cameras
- Mini speakers and other portable devices
Key features
- Maximum charge current: 600mA
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- Precharge voltage: 4.2V±1%
- C/10 charge termination
- 2.9V trickle charge threshold
- Separate charge and end-of-charge indicator control signals
- Package: SOT23-6L
