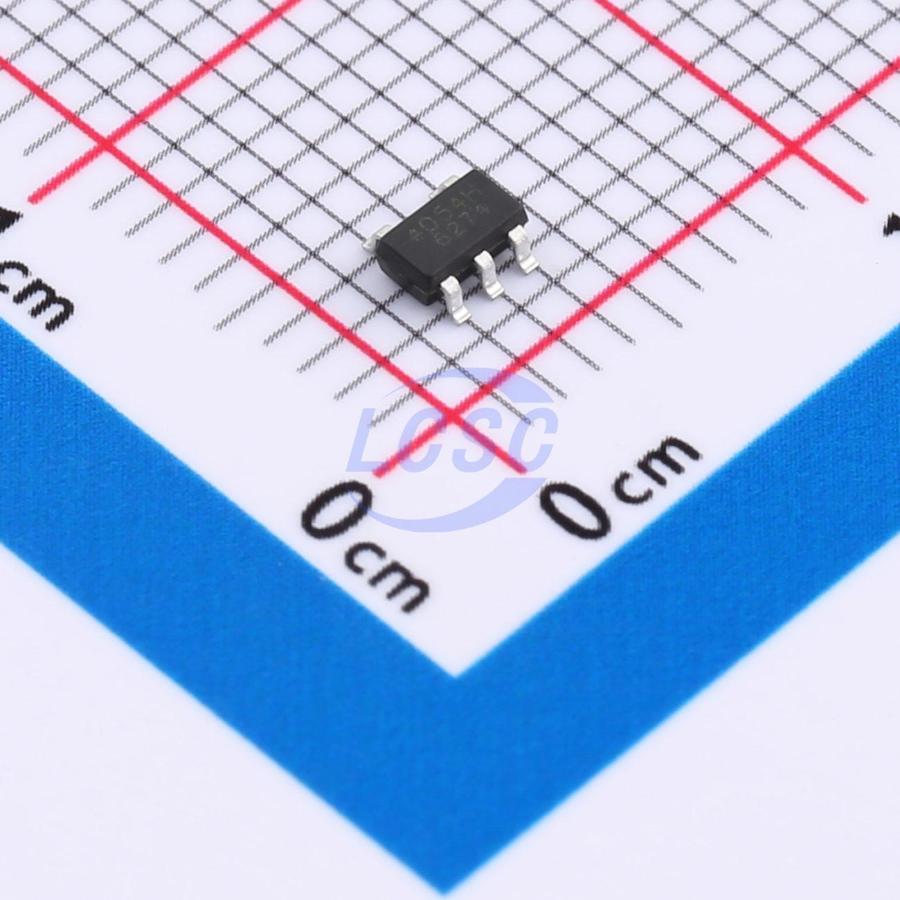

JTD4054H
Linear Charging IC SOT-23-5L
800mA single-cell lithium battery charger IC
- Manufacturer
- JTD
- Manufacturer part #
- JTD4054H
- Store part #
- C42443473
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C42443473
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.33 | ₹53.30 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.65 | ₹1,095.00 |
| 3,000+ | ₹3.24 | ₹9,720.00 |
| 6,000+ | ₹2.90 | ₹17,400.00 |
| 9,000+ | ₹2.74 | ₹24,660.00 |
10 × ₹5.33
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTD4054H
₹53.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The 4054H is a single-cell lithium-ion battery constant-current/constant-voltage linear charger IC with 30V input voltage tolerance and overcharge protection. Its simple external application circuit makes it ideal for portable devices, compatible with both USB power supplies and adapter power sources. The chip features an integrated PMOSFET architecture and reverse-charge prevention circuitry, eliminating the need for an external isolation diode. A thermal feedback function automatically adjusts the charging current to limit the chip temperature during high-power operation or high-temperature conditions. The charge termination voltage is 4.2V, and the charging current is programmable via an external resistor. The chip automatically terminates charging when the charging current drops to 1/5 of the programmed value. When the input voltage is removed, the chip automatically enters a low-current sleep state, reducing the current to 0.
Applications
- Charging dock
- Bluetooth headsets, GPS
- Mobile phones, PDAs, MP3/MP4 players
- Digital cameras, mini speakers, and other portable devices
Key features
- Maximum input voltage: 30V
- Full charge voltage: 4.2V
- Overvoltage protection voltage: 7.3V
- Maximum charge current: 800mA
- Trickle/constant current/constant voltage three-stage charging
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- BAT input reverse polarity protection
- Standby mode quiescent current: 1.2μA
- C/5 charge termination
- 2.9V trickle charge threshold
- Charge status indication
- Package: SOT23-5L
