JTDDatasheet (PDF)

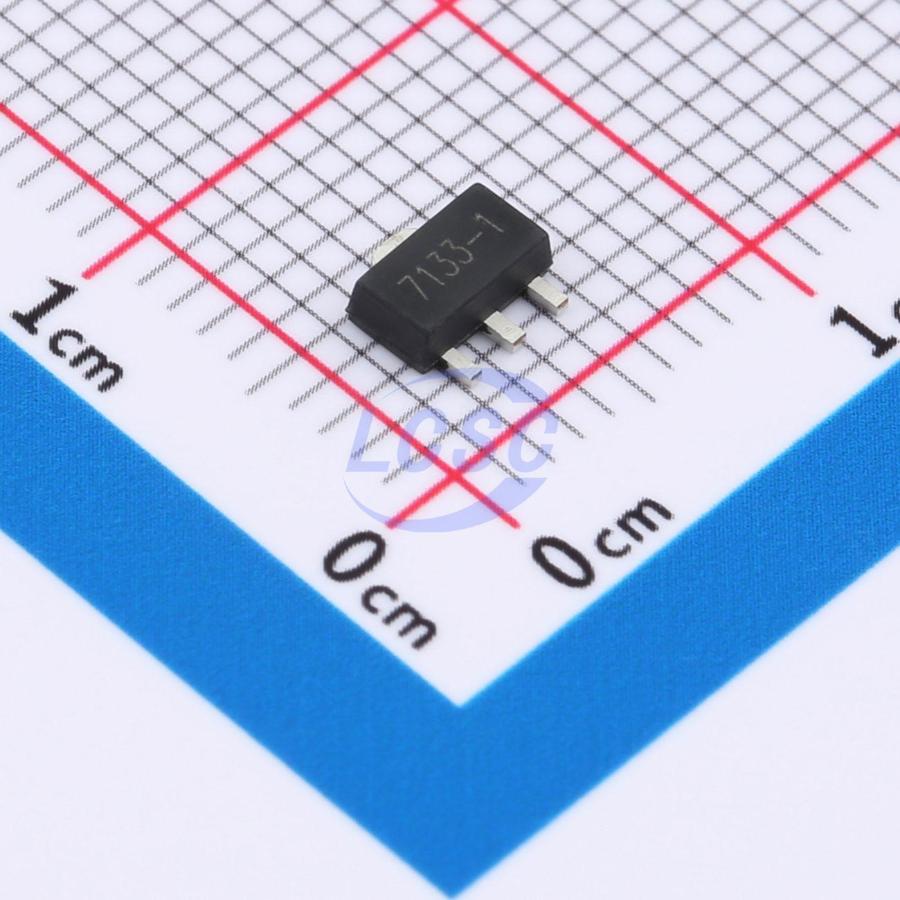

JTD7133
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-89
SOT-89ROHS CompliantActive
IC REG LINEAR 3.3V 30mA SOT-89
- Manufacturer
- JTD
- Manufacturer part #
- JTD7133
- Store part #
- C42442687
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,400 in stock
#C42442687
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.29 | ₹85.80 |
| 200+ | ₹3.34 | ₹668.00 |
| 1,000+ | ₹2.82 | ₹2,820.00 |
| 2,000+ | ₹2.50 | ₹5,000.00 |
| 10,000+ | ₹2.22 | ₹22,200.00 |
| 20,000+ | ₹2.08 | ₹41,600.00 |
20 × ₹4.29
₹85.80
excl. GST
₹101.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
JTD7133
₹85.80 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.161 g
Overview
The 71XX series is a group of three-terminal, low-power, high-voltage regulators implemented in CMOS technology. They support input voltages up to 30V and offer multiple fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics. Although primarily designed as fixed-voltage regulators, these ICs can be combined with external components to achieve adjustable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Quiescent current 1uA
- High input voltage (up to 30V)
- Output voltage accuracy: ±2%
- Package types: TO92, SOT89, and SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JTD7533-40V#C49308287JTD · SOT-89-3L | JTD | SOT-89-3L | 77,040 | ₹3.64 · 77,040 in stock | View |
 | JTD78L33#C42443420JTD · SOT-89-3L | JTD | SOT-89-3L | 9,370 | ₹4.89 · 9,370 in stock | View |
 | JTD7533H#C42442689JTD · SOT-89 | JTD | SOT-89 | 7,080 | ₹5.26 · 7,080 in stock | View |
 | JTD75U33#C42443408JTD · SOT-89 | JTD | SOT-89 | On request | Price on request | Quote |
