JTDDatasheet (PDF)

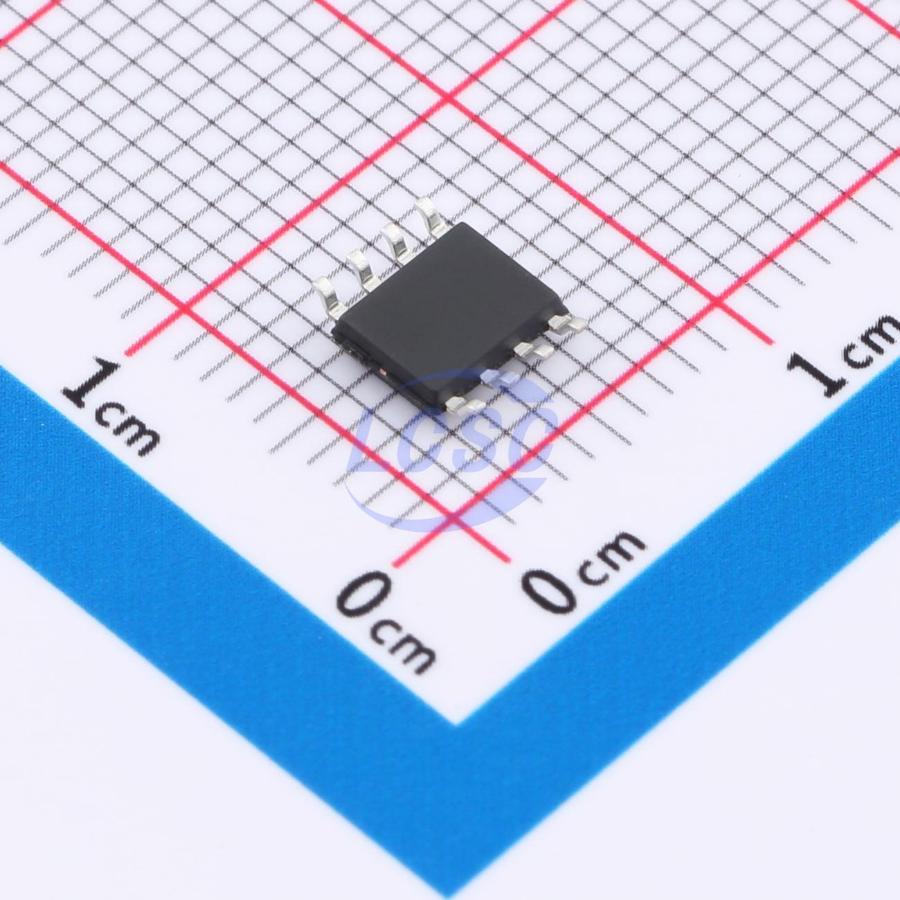

JTDLM358DR
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Integrated Operational Amplifier Chip
- Manufacturer
- JTD
- Manufacturer part #
- JTDLM358DR
- Store part #
- C42443481
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C42443481
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.25 | ₹425.00 |
| 300+ | ₹3.68 | ₹1,104.00 |
| 2,500+ | ₹3.27 | ₹8,175.00 |
| 5,000+ | ₹2.92 | ₹14,600.00 |
| 10,000+ | ₹2.75 | ₹27,500.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
JTDLM358DR
₹53.70 for 10 + GST
Specifications
- Output Current
- 14mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 75nA
- Quiescent Current
- 230uA
- Features
- Built-in compensation
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.181 g
Overview
The LM358DR is an integrated op-amp IC featuring two independent, high-gain, frequency-compensated operational amplifiers. It offers a wide operating supply voltage range and input signal range. The output stage employs large output transistors, providing substantial current drive capability. This IC can operate from a standard 5V digital system supply without requiring additional ±5V rails. Due to the output stage topology, some output distortion is inherent, and the output is not a rail-to-rail design. The device is available in an SOP8 SMT package.
Applications
- Voltage amplifier circuit
- Oscillator circuit
- Comparator circuit
- Filter circuit
Key features
- Wide supply range: single supply 3V to 32V, dual supply ±1.5V to ±16V
- Low quiescent current: typical 230μA@5V
- Wide common-mode input range
- Low input bias current, low input offset
- Internal frequency compensation
- Output short-circuit protection
