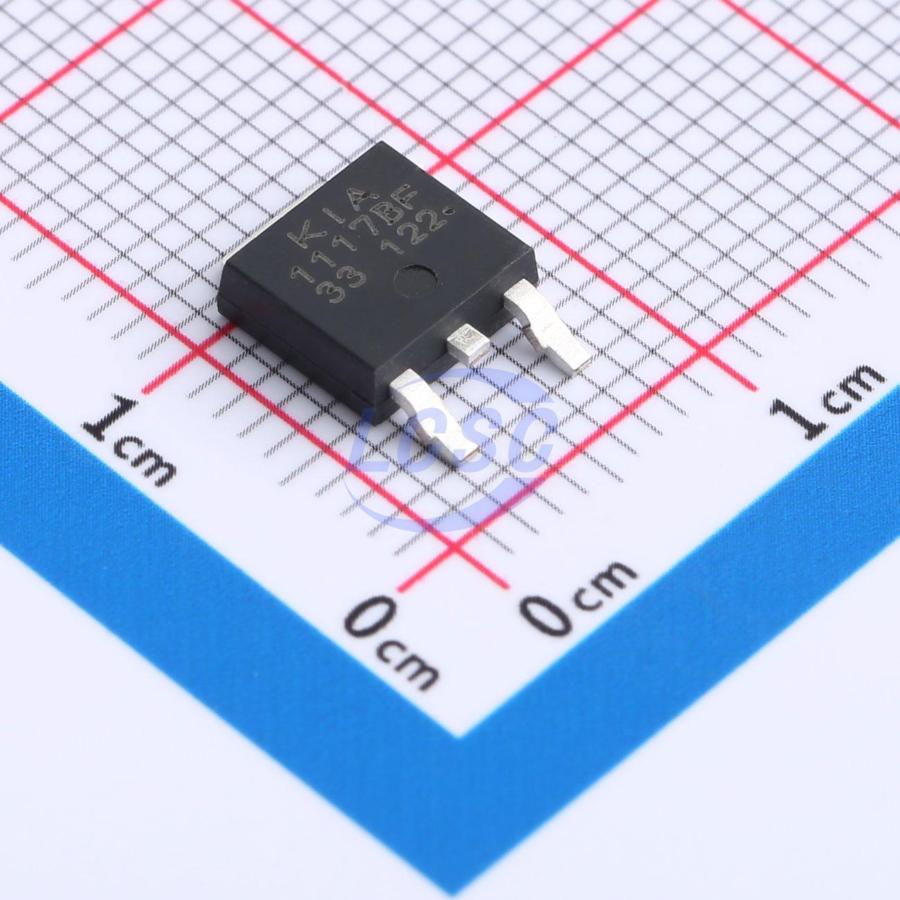

KIA1117BF33-RTF/P
Linear Voltage Regulator IC Positive Fixed 1 Output 1A DPAK
DPAKROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- KEC
- Manufacturer part #
- KIA1117BF33-RTF/P
- Store part #
- C5274820
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C5274820
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.27 | ₹101.35 |
| 50+ | ₹17.53 | ₹876.50 |
| 150+ | ₹16.35 | ₹2,452.50 |
| 500+ | ₹14.88 | ₹7,440.00 |
| 3,000+ | ₹14.24 | ₹42,720.00 |
| 6,000+ | ₹13.85 | ₹83,100.00 |
5 × ₹20.27
₹101.35
excl. GST
₹119.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
KIA1117BF33-RTF/P
₹101.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The KIA1117BS/BF/BPI xx Series are a Low Drop Voltage Regulator able to provide up to 1A of output current, available even in adjustable version (Vref=1.25V)
Key features
- Low Dropout Voltage: 1.1V/Typ. (Iout=1.0A)
- Very Low Quiescent Current: 5㎃(Typ)
- Output Current up to 1A
- Fixed Output Voltage of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Adjustable Version Availability: Vref=1.25V
- Internal Current and Thermal Limit
- A Minimum of 10μF for stability
- Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors
- ESR Range for stability: 1mΩ~200Ω
- Available in ±2% (at 25%)
- High Ripple Rejection: 80dB(Typ)
- Temperature Range: -40°C~150°C
- Suffix U: Qualified to AEC-Q100 (Grade 3)
- Suffix H: SOT-223(1) Package
