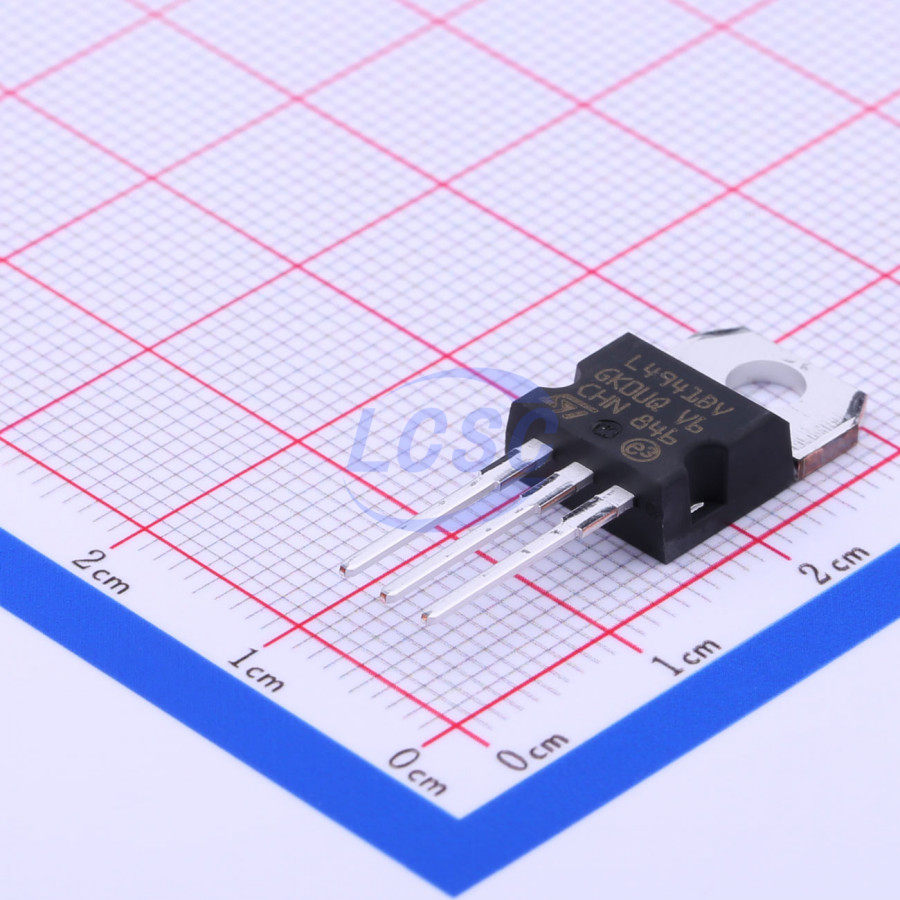

L4941BV
5V Positive Fixed TO-220AB-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220AB-3ROHS3 CompliantActive
Ultra Low Dropout 1A Regulator
- Manufacturer
- ST
- Manufacturer part #
- L4941BV
- Store part #
- C283395
- Package / case
- TO-220AB-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C283395
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.51 | ₹192.51 |
| 10+ | ₹160.85 | ₹1,608.50 |
| 50+ | ₹143.20 | ₹7,160.00 |
| 100+ | ₹123.61 | ₹12,361.00 |
| 500+ | ₹114.77 | ₹57,385.00 |
| 1,000+ | ₹110.68 | ₹1,10,680.00 |
1 × ₹192.51
₹192.51
excl. GST
₹227.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L4941BV
₹192.51 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 16V
- Features
- Thermal shutdown;Short Circuit Protection;Reverse polarity voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
The L4941 is a three terminal 5V positive regulators available in TO-220 and DPAK packages, making it useful in a wide range of industrial and consumer applications. Thanks to its very low input/output voltage drop, these devices are particularly suitable for battery powered equipments, reducing consumption and prolonging battery life. It employs internal current limiting, antisaturation circuit, thermal shut-down and safe area protection.
Key features
- Low dropout voltage (450mV typ. at 1A)
- Very low quiescent current Thermal shutdown
- Short circuit protection Reverse polarity protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM29150T-5.0#C596337HTC · TO-220 | HTC | TO-220 | 179 | ₹111.85 · 179 in stock | View |
 | LR7805#C2846986LRC · TO-220 | LRC | TO-220 | 600 | ₹30.31 · 600 in stock | View |
 | LM7805CT#C725349HGSEMI · TO-220 | HGSEMI | TO-220 | 1,220 | ₹43.02 · 1,220 in stock | View |
 | SL7805#C458977Slkor · TO-220 | Slkor | TO-220 | 100 | ₹39.82 · 100 in stock | View |
 | L7805ABV#C16807ST · TO-220 | ST | TO-220 | 32,370 | ₹43.53 · 32,370 in stock | View |
