STDatasheet (PDF)

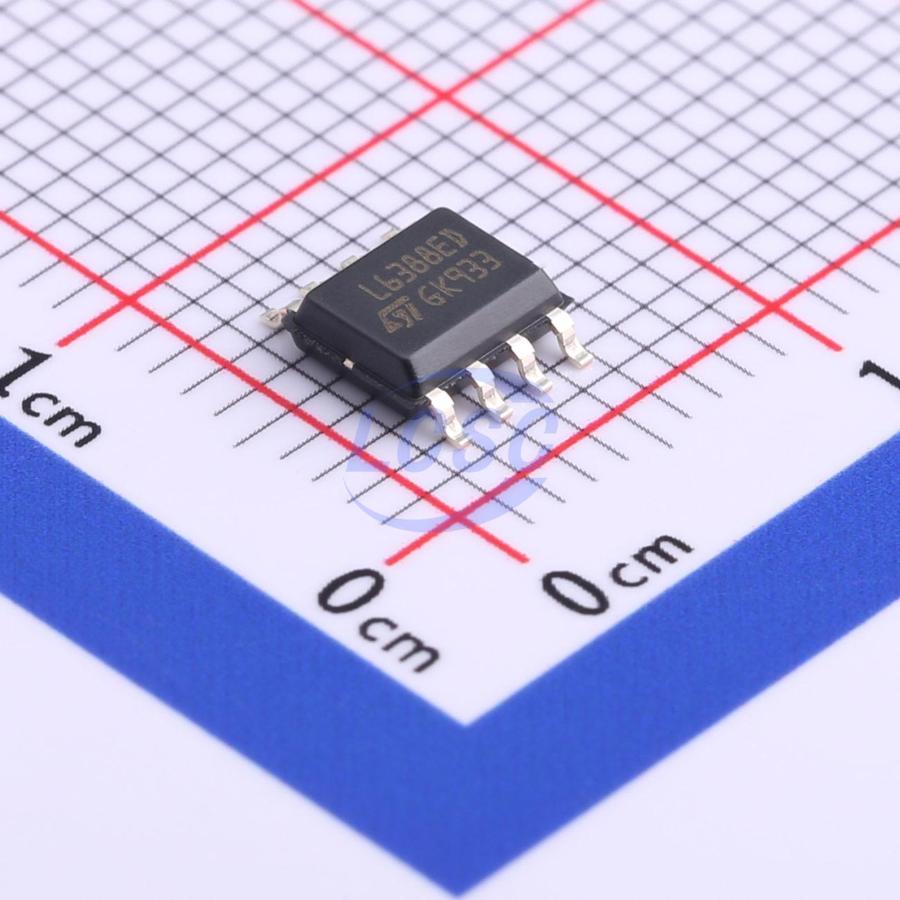

L6388ED013TR
3.3V~18V 650mA 400mA SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
High voltage high and low-side driver
- Manufacturer
- ST
- Manufacturer part #
- L6388ED013TR
- Store part #
- C23921
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,763 in stock
#C23921
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.03 | ₹100.03 |
| 10+ | ₹81.76 | ₹817.60 |
| 30+ | ₹72.84 | ₹2,185.20 |
| 100+ | ₹63.72 | ₹6,372.00 |
| 500+ | ₹58.28 | ₹29,140.00 |
| 1,000+ | ₹55.46 | ₹55,460.00 |
1 × ₹100.03
₹100.03
excl. GST
₹118.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L6388ED013TR
₹100.03 for 1 + GST
Specifications
- Low Level Delay Time
- 225ns
- High Level Delay Time
- 160ns
- Quiescent Current
- 350uA
- Voltage - Supply
- 3.3V~18V
- Operating Temperature
- -45℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 650mA
- Rise Time
- 70ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode;Charge pump boost
- Current - Output High(IOH)
- 400mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.355 g
Overview
The L6388E is a high voltage device, manufactured with the BCD “offline” technology. It has a driver structure that enables the driving of independent referenced N-channel Power MOSFETs or IGBTs. The high-side (floating) section is enabled to work with voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices.
Key features
- High voltage rail up to 600 V
- dV/dt immunity ±50 V/nsec in full temperature range
- Driver current capability: – 400 mA source, 650 mA sink
- Switching times 70/40 nsec rise/fall with 1 nF load
- 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pull-down
- Internal bootstrap diode
- Outputs in phase with inputs
- Deadtime and interlocking function
