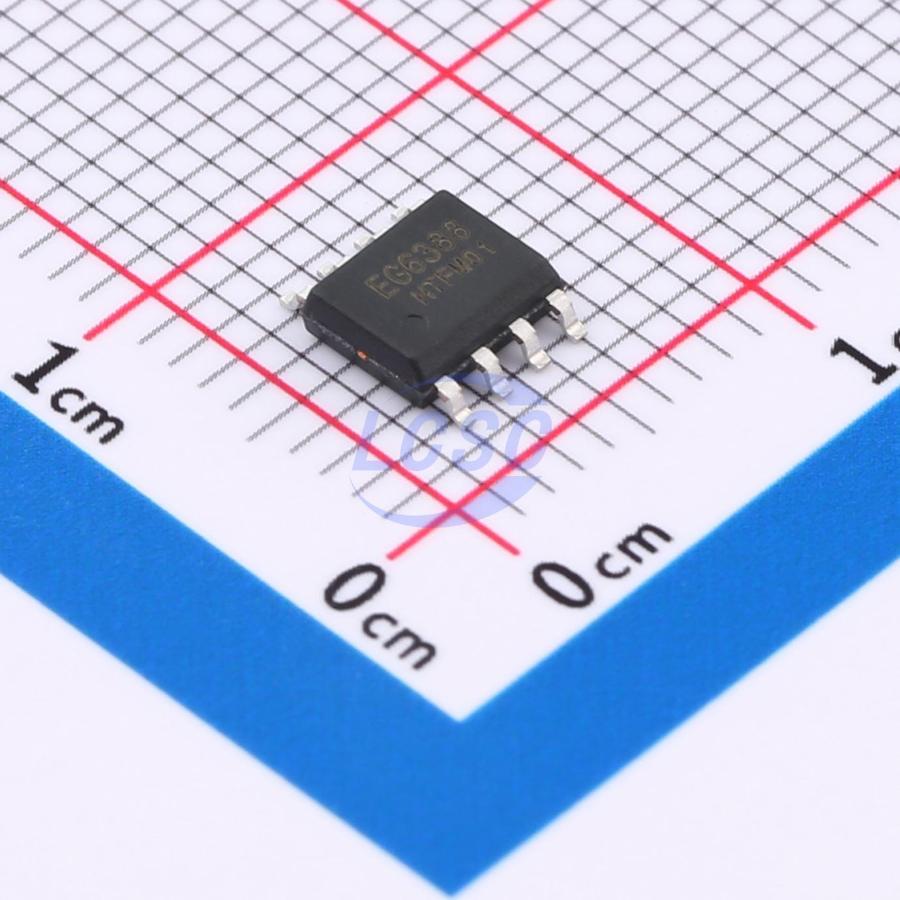

EG6388
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
High-voltage half-bridge MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG6388
- Store part #
- C20416245
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C20416245
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.61 | ₹153.05 |
| 50+ | ₹26.78 | ₹1,339.00 |
| 150+ | ₹25.12 | ₹3,768.00 |
| 500+ | ₹23.07 | ₹11,535.00 |
| 2,500+ | ₹22.16 | ₹55,400.00 |
| 4,000+ | ₹21.60 | ₹86,400.00 |
5 × ₹30.61
₹153.05
excl. GST
₹180.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG6388
₹153.05 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 220ns
- High Level Delay Time
- 180ns
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~25V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 900mA
- Rise Time
- 35ns
- Fall Time
- 16ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 500mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The EG6388 is a cost-effective gate driver IC dedicated to MOS and IGBT transistors. It integrates logic signal input processing, undervoltage protection, dead-time control, level shifting, pulse filtering, and output driver circuits, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG6388 supports a high-side operating voltage up to 600V and a wide low-side VCC supply voltage range of 10V~25V. The HIN input channel features a built-in 200K pull-down resistor, and the LIN input channel features a built-in 200K pull-down resistor, keeping both the high-side and low-side power MOSFETs in the off state when inputs are floating. Output current capability is 10±0.5/0.9A. Available in SOP8 package.
Applications
- Mobile power high-voltage fast-charge switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum frequency up to 500KHz
- VCC and VB supply with undervoltage lockout protection
- Low-side VCC voltage range: 10V – 25V
- Output current capability: |0±0.5A/0.9A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
