STDatasheet (PDF)

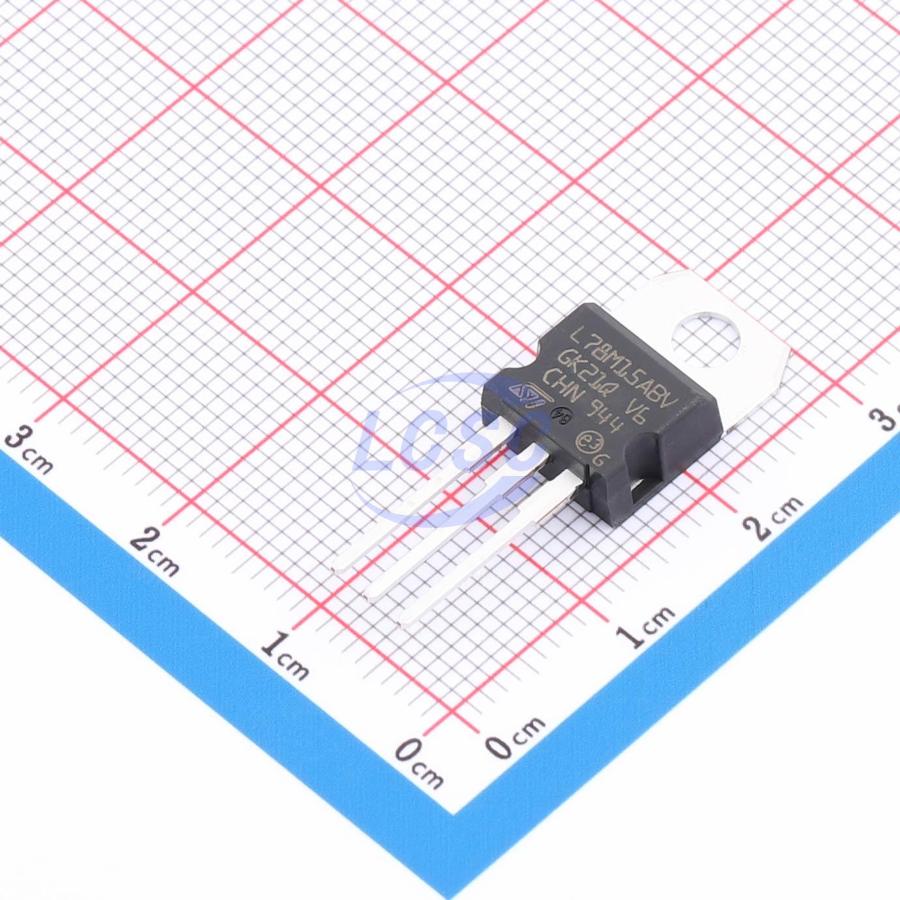

L78M15ABV
15V Positive Fixed TO-220-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220-3ROHS3 CompliantDiscontinued
Precision 500 mA Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78M15ABV
- Store part #
- C2970207
- Package / case
- TO-220-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C2970207
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.52 | ₹90.52 |
| 10+ | ₹88.14 | ₹881.40 |
| 50+ | ₹86.63 | ₹4,331.50 |
| 100+ | ₹85.33 | ₹8,533.00 |
1 × ₹90.52
₹90.52
excl. GST
₹106.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
L78M15ABV
₹90.52 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.51 g
Overview
The L78MxxA series of three-terminal positive regulators is available in TO-220 and DPAK packages and with several fixed output volt making it useful in a wide range of applications. These regulators can provide local on-card regulation eliminating the distribution pro associated with single point regulation. Each employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sin is provided, they can deliver over 0.5 A output.
Key features
- Output cuneht to U.S A
- Satpat toragoo oro,0 ohorhcirovooud piotootion ±2% choant protootrot
- Output tianstionf SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7815CTG#C110909onsemi · TO-220 | onsemi | TO-220 | 7,412 | ₹53.65 · 7,412 in stock | View |
 | L7815ABV#C191255ST · TO-220 | ST | TO-220 | 497 | ₹84.06 · 497 in stock | View |
 | MC7815BTG#C76382onsemi · TO-220AB | onsemi | TO-220AB | 6,141 | ₹54.30 · 6,141 in stock | View |
| AS7815AT-E1#C7217864DIODES · TO-220-3 | DIODES | TO-220-3 | 57 | ₹94.99 · 57 in stock | View | |
 | L7815 TO-220#C54430189KTP · TO-220 | KTP | TO-220 | 420 | ₹27.84 · 420 in stock | View |
