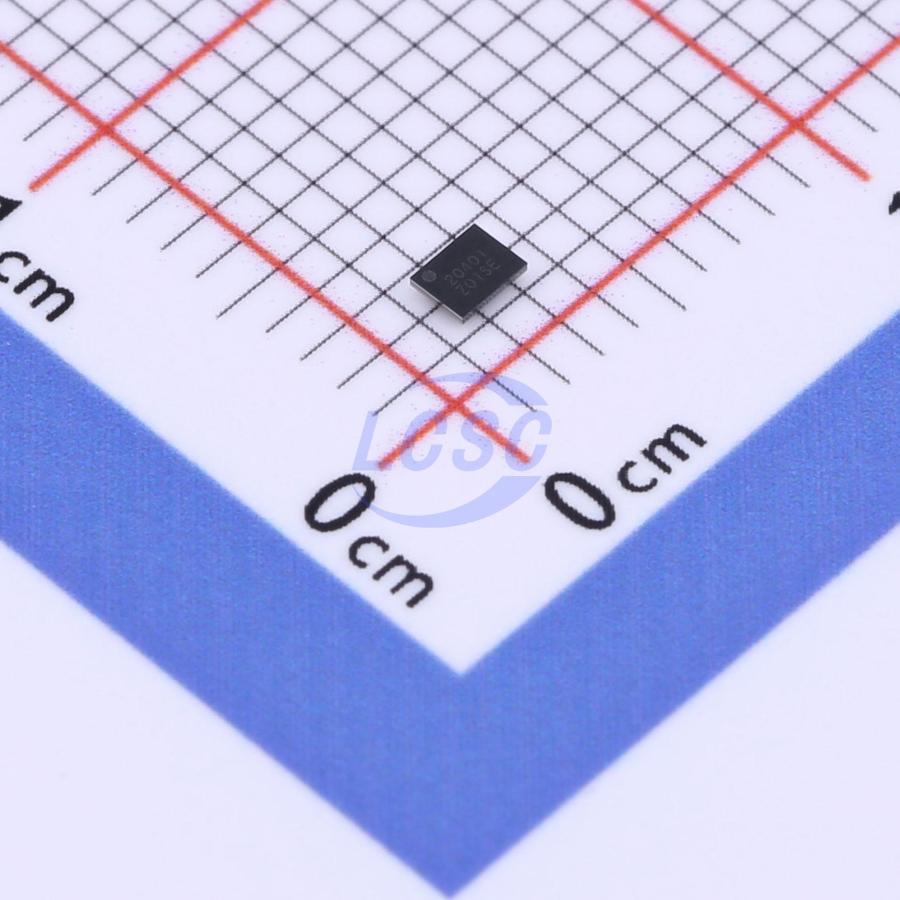

LC709204FXE-01TBG
I2C Lithium Battery WLCSP-12(1.48x1.91) Battery Management RoHS
Battery Fuel Gauge for 1-Cell Lithium-ion/Polymer with Low Power Operation
- Manufacturer
- onsemi
- Manufacturer part #
- LC709204FXE-01TBG
- Store part #
- C895466
- Package / case
- WLCSP-12(1.48x1.91)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,785 in stock
#C895466
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹299.22 | ₹299.22 |
| 10+ | ₹247.72 | ₹2,477.20 |
| 30+ | ₹215.34 | ₹6,460.20 |
| 100+ | ₹175.59 | ₹17,559.00 |
| 500+ | ₹160.59 | ₹80,295.00 |
| 1,000+ | ₹154.06 | ₹1,54,060.00 |
1 × ₹299.22
₹299.22
excl. GST
₹353.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LC709204FXE-01TBG
₹299.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- I2C
- Quiescent Current
- 2uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2.5V~5V
- Features
- Overcharge protection;Over-discharge protection
- The Chip Type
- Monitoring IC
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.014 g
Overview
LC709204F is a Fuel Gauge for 1−Cell Lithium−ion/Polymer batteries. It is part of our Smart LiB Gauge family of Fuel Gauges which measure the battery RSOC (Relative State Of Charge) using its unique algorithm called HG−CVR2. The HG−CVR2 algorithm provides accurate RSOC information even under unstable conditions (e.g. changes of battery; temperature, loading, aging and self−discharge). An accurate RSOC contributes to the operating time of portable devices. The Fuel Gauge (in other words, Gas Gauge, Battery Monitor or Battery Gauge) feature of HG−CVR2 algorithm makes LSI highly applicable in various application. The LSI can immediately start battery measurement by setting a few parameters after battery insertion. Learning cycles that make complicated manufacturing process of applications can be avoided. The LSI also supports battery safety by alarm functions and SOH (State of Health) reporting to the application processor. The operating consumption current is very low 2 μA and it is suitable for applications such as wearables and 1 series N parallel batteries.
Applications
- Wearables / IoT Devices
- Smartphones/PDA Devices
- Digital Cameras
- Portable Game Players
- USB-related Devices
Key features
- HG−CVR2 Algorithm Technology
- Small Footprint: No Need for Current Sensing Resistor
- Accurate RSOC of Aging Battery
- Stable Gauging by Automatic Convergence of Error
- Immediate Accurate Gauging after Battery Insertion
- Eliminates Learning Cycle
- Low Power Consumption
- 2 μA Operational Mode Current
- Improvement of the Battery Safety by Alarm Function RSOC / Voltage / Temperature
- Battery Lifetime Measurement SOH / Cycle Count / Operating Time
- Remaining Time Estimation Time to Full / Time to Empty
- Three Temperature Inputs
- Inputs to sense two NTC Thermistors
- Via I²C
- Detection of Battery Operating Conditions Charging / Discharging
- Detection of Battery Insertion
- I²C Interface (supported up to 400 kHz)
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
