UTCDatasheet (PDF)

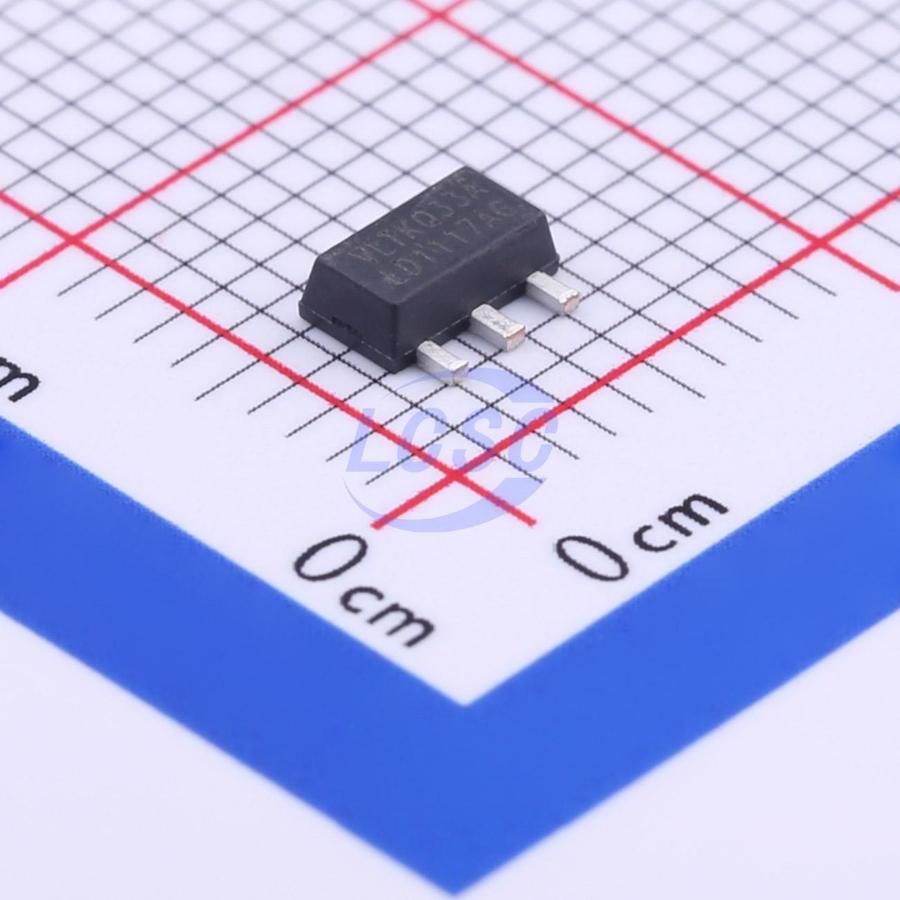

LD1117AG-33-AB3-A-R
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
Low-dropout fixed and adjustable positive voltage regulators
- Manufacturer
- UTC
- Manufacturer part #
- LD1117AG-33-AB3-A-R
- Store part #
- C81768
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,510 in stock
#C81768
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.34 | ₹56.70 |
| 50+ | ₹9.12 | ₹456.00 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.17 | ₹3,585.00 |
| 2,500+ | ₹6.43 | ₹16,075.00 |
| 4,000+ | ₹6.10 | ₹24,400.00 |
5 × ₹11.34
₹56.70
excl. GST
₹66.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LD1117AG-33-AB3-A-R
₹56.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
The UTC LD1117/A is a low dropout, 3-terminal positive voltage regulator designed to provide output current up to 800mA/1A. There are adjustable version (V_REF = 1.25V) and various fixed versions.
Key features
- Low dropout voltage
- Suitable for SCSI-2 active termination if VOUT set to 2.85V
- Output current up to 0.8A for 1117 and 1.0A for 1117A
- Built-in current limit and over temperature protection
- Low current consumption
- Support MLCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117AG-33-AB3-B-R#C696244UTC · SOT-89 | UTC | SOT-89 | 275 | ₹11.01 · 275 in stock | View |
 | GN1117-3.3V#C7502486GN Semic · SOT-89-3L | GN Semic | SOT-89-3L | 7,210 | ₹5.29 · 7,210 in stock | View |
 | CJA1117B-3.3#C24253JSCJ · SOT-89-3 | JSCJ | SOT-89-3 | 81,410 | ₹8.23 · 81,410 in stock | View |
 | AZ1117R-3.3TRE1#C108493DIODES · SOT-89-3 | DIODES | SOT-89-3 | 2,860 | ₹40.58 · 2,860 in stock | View |
 | AMS1117-3.3#C2904742YONGYUTAI · SOT-89-3 | YONGYUTAI | SOT-89-3 | 9,270 | ₹6.69 · 9,270 in stock | View |
