STDatasheet (PDF)

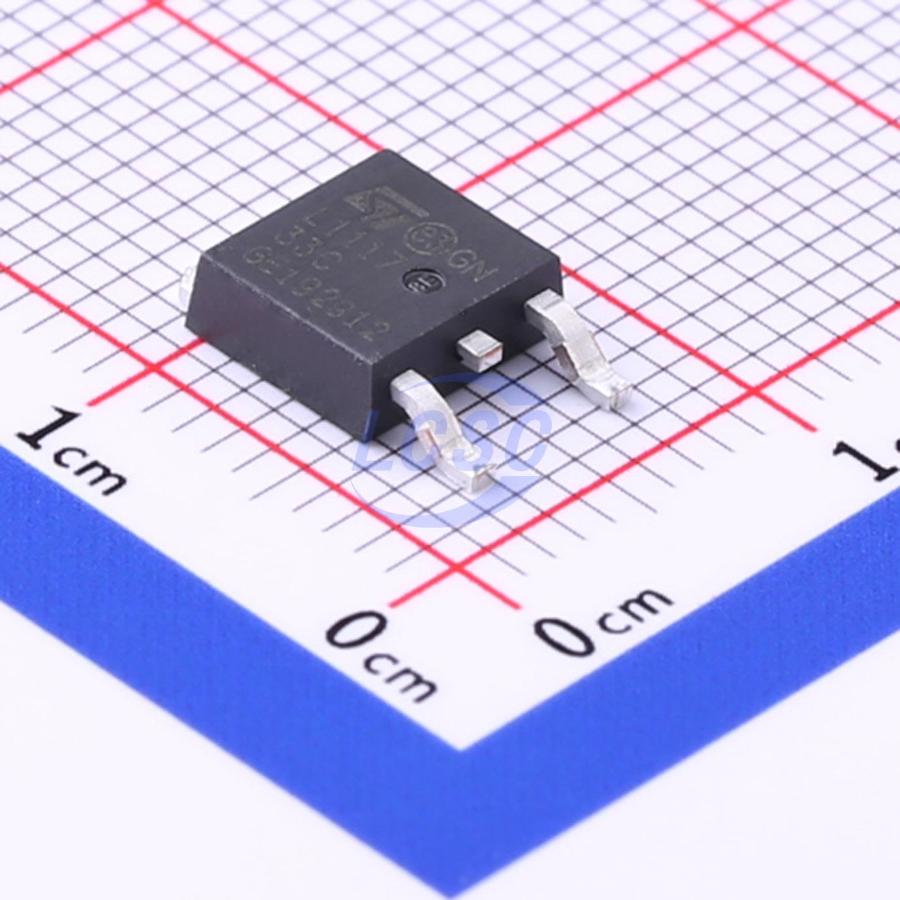

LD1117DT33CTR
3.3V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117DT33CTR
- Store part #
- C36395
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,945 in stock
#C36395
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.39 | ₹196.95 |
| 50+ | ₹31.55 | ₹1,577.50 |
| 150+ | ₹28.19 | ₹4,228.50 |
| 500+ | ₹24.00 | ₹12,000.00 |
| 2,500+ | ₹22.13 | ₹55,325.00 |
| 5,000+ | ₹21.01 | ₹1,05,050.00 |
5 × ₹39.39
₹196.95
excl. GST
₹232.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117DT33CTR
₹196.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.475 g
Overview
The LD1117 is a low drop voltage regulator capable of delivering 800 mA of output current, available even in adjustable version (V = 1.25 - 3.3 V) and in fixed versions, offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT - 223, DPAK, SO - 8 and TO - 220. The SOT - 223 and DPAK surface mount package optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. Laser trimming allows the regulator to reach very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to pin compatible with the other standard.
Key features
- Low dropout voltage (1 V for 2.85 V device at 800 mA)
- Fixed output voltage of: 1.2 V, (V_REF = 1.25 V), 1.8 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V
- Regulation accuracy: ± 1 % at 25 °C and 2 %
- Available in ± 1 % (at 25 °C) and 2 %
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117DT33TR#C132629ST · TO-252-2 | ST | TO-252-2 | 13,315 | ₹34.04 · 13,315 in stock | View |
 | LM1117DTX-3.3/NOPB#C73181TI · TO-252-2 | TI | TO-252-2 | 13,957 | ₹151.30 · 13,957 in stock | View |
 | LM1117DT-3.3/NOPB#C969102TI · TO-252 | TI | TO-252 | 1,218 | ₹196.57 · 1,218 in stock | View |
 | LM1117IDTX-3.3/NOPB#C129952TI · TO-252-3 | TI | TO-252-3 | 6,143 | ₹143.18 · 6,143 in stock | View |
| MC33269DT-3.3/TR#C46614073HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 2,305 | ₹18.55 · 2,305 in stock | View | |
