STDatasheet (PDF)

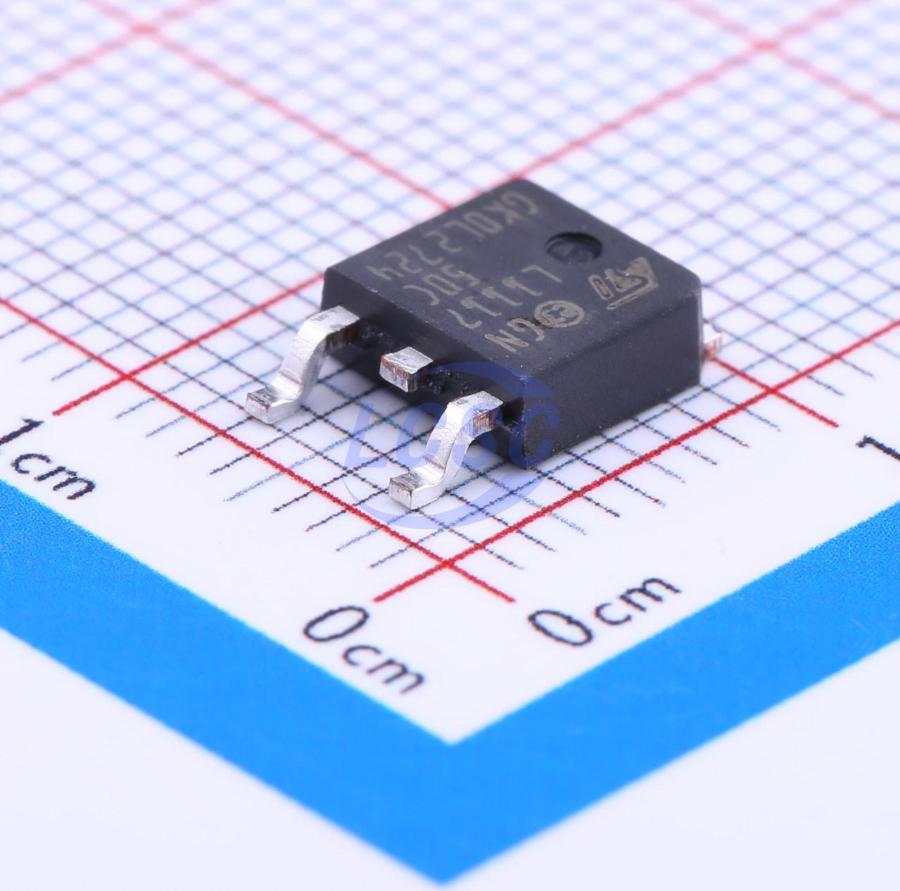

LD1117DT50CTR
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117DT50CTR
- Store part #
- C93063
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,230 in stock
#C93063
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.43 | ₹152.15 |
| 50+ | ₹23.79 | ₹1,189.50 |
| 150+ | ₹20.94 | ₹3,141.00 |
| 500+ | ₹17.38 | ₹8,690.00 |
| 2,500+ | ₹15.81 | ₹39,525.00 |
| 5,000+ | ₹14.86 | ₹74,300.00 |
5 × ₹30.43
₹152.15
excl. GST
₹179.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117DT50CTR
₹152.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.475 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117IDTX-5.0/NOPB#C181567TI · TO-252-3 | TI | TO-252-3 | 3,379 | ₹116.41 · 3,379 in stock | View |
 | AZ1117D-5.0TRE1#C460433DIODES · TO-252-2 | DIODES | TO-252-2 | 40,045 | ₹35.55 · 40,045 in stock | View |
 | MC33269DT-5.0/TR#C46614074HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 3,790 | ₹18.92 · 3,790 in stock | View |
 | LM1117RS-5.0#C3015395HTC · TO-252 | HTC | TO-252 | 2,210 | ₹26.84 · 2,210 in stock | View |
 | NJM7805SDL1-TE1#C3743975Nisshinbo Micro Devices Inc. · TO-252 | Nisshinbo Micro Devices Inc. | TO-252 | 64 | ₹144.84 · 64 in stock | View |
