TIDatasheet (PDF)

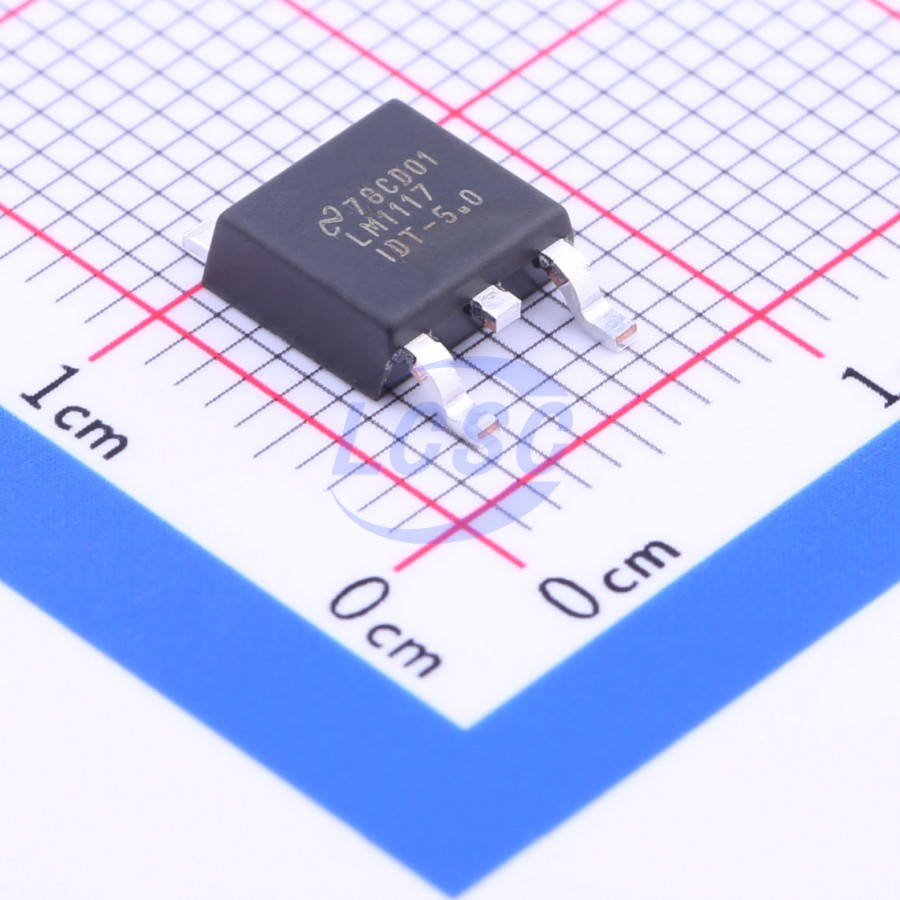

LM1117IDTX-5.0/NOPB
5V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM1117IDTX-5.0/NOPB
- Store part #
- C181567
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,379 in stock
#C181567
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.41 | ₹116.41 |
| 10+ | ₹93.79 | ₹937.90 |
| 30+ | ₹82.48 | ₹2,474.40 |
| 100+ | ₹66.15 | ₹6,615.00 |
| 500+ | ₹59.63 | ₹29,815.00 |
| 1,000+ | ₹56.15 | ₹56,150.00 |
1 × ₹116.41
₹116.41
excl. GST
₹137.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM1117IDTX-5.0/NOPB
₹116.41 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10 μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- Post Regulator for Switching DC–DC Converter
- High Efficiency Linear Regulators
- Battery Chargers
- Portable Instrumentation
- Active SCSI Termination Regulator
Key features
- Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Versions
- Space-Saving SOT-223 and WSON Packages
- Current Limiting and Thermal Protection
- Output Current 800 mA
- Line Regulation 0.2% (Maximum)
- Load Regulation 0.4% (Maximum)
- Temperature Range: LM1117: 0°C to 125°C; LM1117I: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJU1117B-5.0#C17703060JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,605 | ₹23.35 · 1,605 in stock | View |
 | TLV1117-50IKVURG3#C2867455TI · TO-252-3 | TI | TO-252-3 | 45 | ₹96.42 · 45 in stock | View |
 | LM1117RS-5.0#C3015395HTC · TO-252 | HTC | TO-252 | 2,210 | ₹26.84 · 2,210 in stock | View |
 | AMS1117CD-5.0#C347250UMW · TO-252-2 | UMW | TO-252-2 | 1,815 | ₹11.91 · 1,815 in stock | View |
 | AZ1117CD-5.0TRG1#C177004DIODES · TO-252-2 | DIODES | TO-252-2 | 35 | ₹32.11 · 35 in stock | View |
