STDatasheet (PDF)

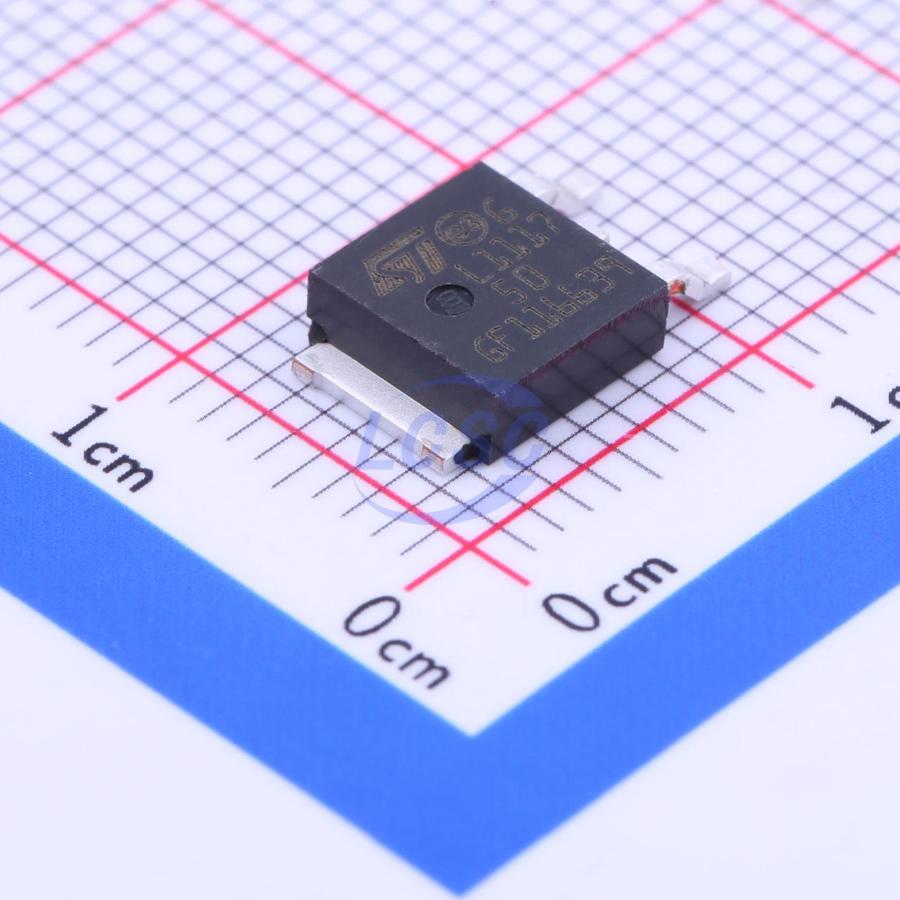

LD1117DT50TR
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
Adjustable and Fixed Low Dropout Positive Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- LD1117DT50TR
- Store part #
- C81189
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,460 in stock
#C81189
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.14 | ₹270.70 |
| 50+ | ₹44.68 | ₹2,234.00 |
| 150+ | ₹40.62 | ₹6,093.00 |
| 500+ | ₹35.55 | ₹17,775.00 |
| 2,500+ | ₹33.30 | ₹83,250.00 |
| 5,000+ | ₹31.95 | ₹1,59,750.00 |
5 × ₹54.14
₹270.70
excl. GST
₹319.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD1117DT50TR
₹270.70 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.475 g
Overview
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (V_REF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor.
Key features
- Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination
- Output current up to 800 mA
- Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V
- Adjustable version availability (V_REF = 1.25 V)
- Internal current and thermal limit
- Available in ± 1 % (at 25 °C) and 2 % in full temperature range
- Supply voltage rejection: 75 dB (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117DTX-5.0/NOPB#C129951TI · TO-252-3 | TI | TO-252-3 | 1,351 | ₹85.43 · 1,351 in stock | View |
 | MC33269DT-5.0/TR#C46614074HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 3,790 | ₹18.92 · 3,790 in stock | View |
 | LD1117DT50CTR#C93063ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 16,240 | ₹30.39 · 16,240 in stock | View |
 | LM1117RS-5.0#C3015395HTC · TO-252 | HTC | TO-252 | 2,210 | ₹26.84 · 2,210 in stock | View |
 | NCP1117DT50RKG#C152470onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 9,570 | ₹35.58 · 9,570 in stock | View |
