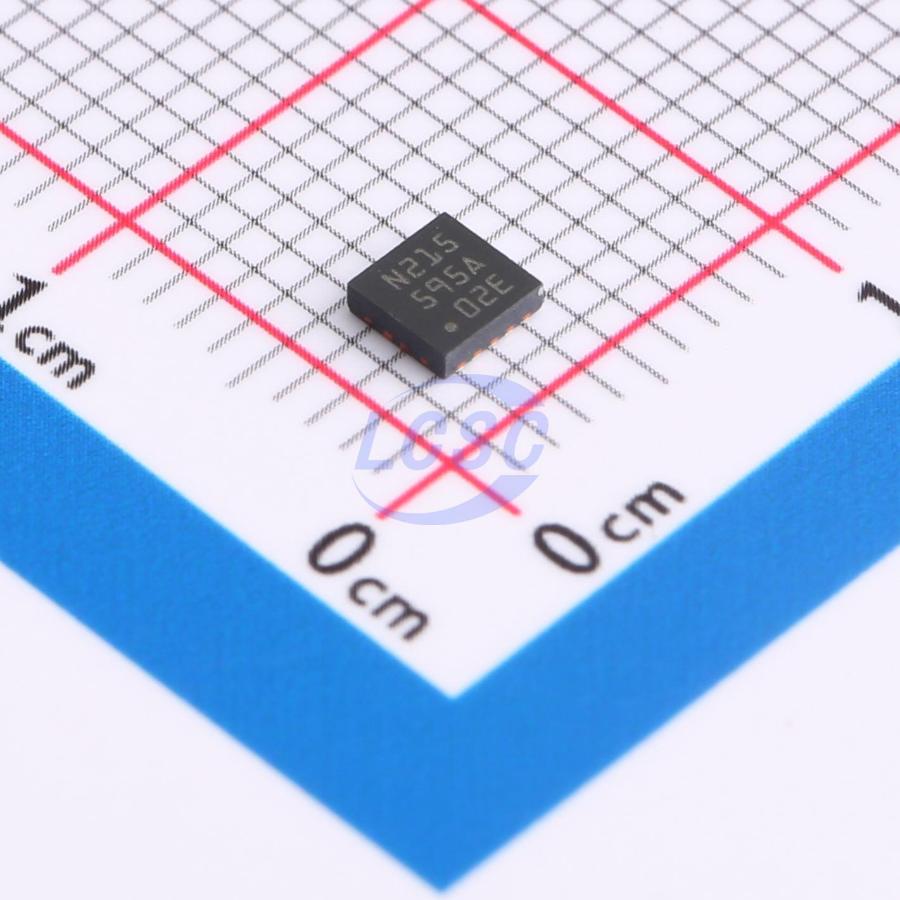

LD59150PURY

The LD59150 is a 1.5 A LDO regulator, designed to be used in several environments. Two versions, Industrial and AEC - Q100 are available. NMOS topology allows RDS(on) of the pass - element to be reduced, which results in a very small dropout voltage even with a very low input supply voltage. Output voltage can be adjusted from 0.8 to 3.6 V by an external resistor divider. The programmable soft - start circuit offers the possibility to control the inrush current at start - up providing a monotonic supply voltage to the load. The LD59150 has enable pin to turn on/off (EN) the regulator and Power Good to monitor the regulated output voltage (PG). The combination of both can be used to set a desired power sequence in case of multiple regulated rails. The LD59150 embeds protection functions, such as: current limit and thermal shutdown.

Applications

• Automotive and industrial post regulation
• Generic POL
• Automotive and industrial ASICs and FPGA supply
• Telecom infrastructure
• A.D.A.S. (advanced driver - assistance systems)

Key features

• DFN6 (3x3) Wettable Flanks
• AEC - Q100 qualified
• Dual supply pins VIN: 0.8 V to 5.5 V; VBIAS: 2.7 V to 5.5 V
• VOUT range: 0.8 V to 3.6 V
• Ultra low - dropout: 65 mV typ. (125 mV max.) at 1.5 A
• High VOUT accuracy 0.5% typ. at Tamb; 2% max.
• Power Good function
• Programmable soft - start
• Thermal shutdown
• Current limitation circuit
• Adjustable output voltage
• Stable with low ESR output capacitor (>2.2 μF)
• DFN10 (3×3) mm package with wettable flanks
• Operating temperature range: - 40 °C to +125 °C
